PLAN 117-877

Photographs may show modified designs.

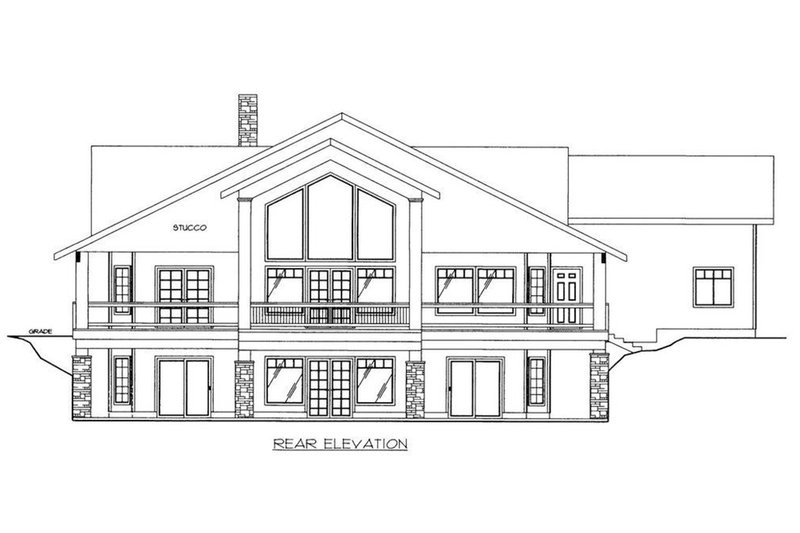

Architectural House Design - Ranch Exterior - Rear Elevation Plan #117-877

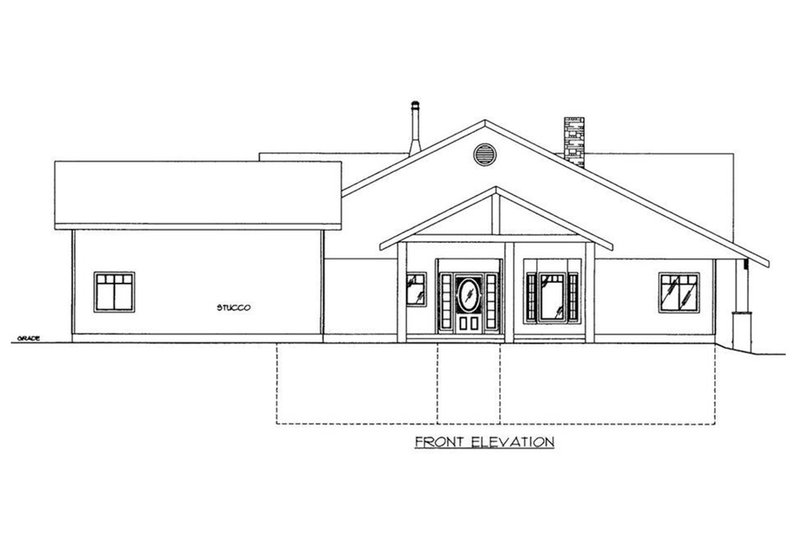

Architectural House Design - Ranch Exterior - Front Elevation Plan #117-877

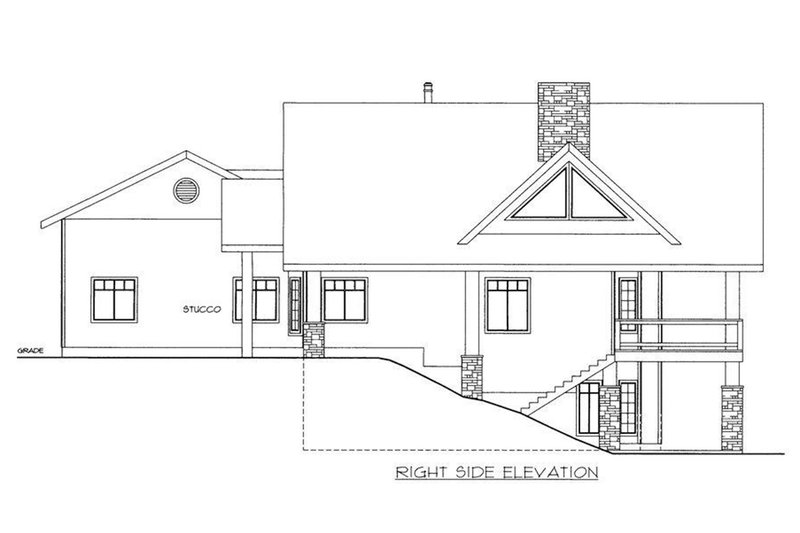

Architectural House Design - Right Side Elevation

Architectural House Design - Ranch Floor Plan - Main Floor Plan #117-877

Architectural House Design - Ranch Floor Plan - Lower Floor Plan #117-877

Jump to:
All (6)
Exterior (4)
Floor plans (2)

Get Personalized Help

Home > Style > Ranch House Plans

Key Specs

3304
sq ft

3
Beds

3.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$165.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$395.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$165.00
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1395.00

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 117-877

Home > Style > Ranch House Plans

Key Specs

3304
sq ft

3
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 3304 sq ft and has 3 bedrooms and 3.5 bathrooms.

Floor Plans

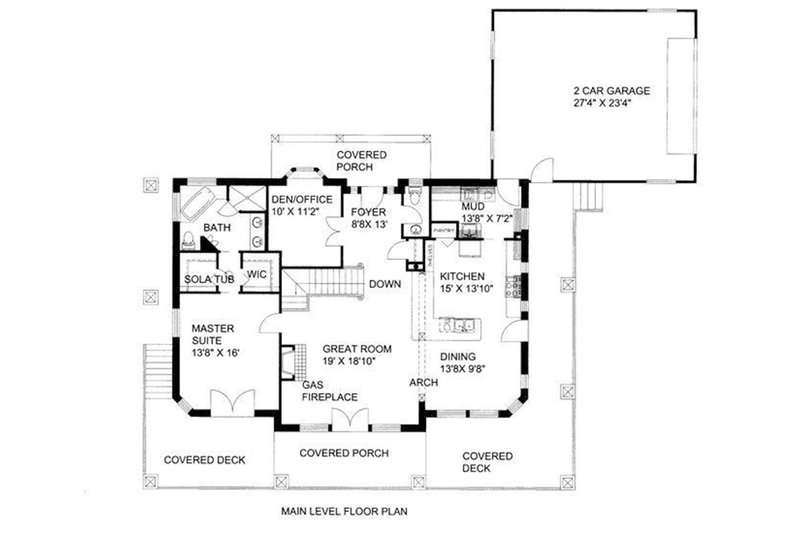

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

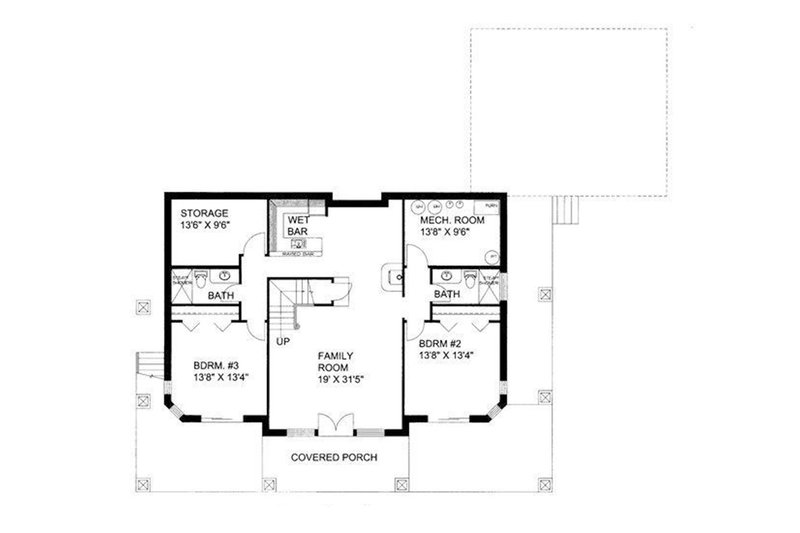

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 58' 6"

Height : 28' 6"

Width : 59' 6"

Area

Garage : 669 sq/ft

Lower Floor : 1652 sq/ft

Main Floor : 1652 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Lower Ceiling : 9'

Main Ceiling : 9'

Roof

Primary Pitch : 6:12

Roof Framing : Truss/Stick

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : ICF

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Main Floor Laundry

Mud Room

Storage Area

Wet Bar

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

width 13' 8" x depth 13' 4"

Bedroom 3:

width 13' 8" x depth 13' 4"

Den/Office:

width 10' x depth 11' 2"

Dining Room:

width 13' 8" x depth 13' 10"

Family Room:

width 19' x depth 31' 5"

Foyer:

width 8' 8" x depth 13'

Great Room:

width 19' x depth 18' 10"

Kitchen:

width 15' x depth 13' 10"

Master Bedroom:

width 13' 8" x depth 16'

Mech. Room:

width 13' 8" x depth 9' 6"

Mud Room:

width 13' 8" x depth 7' 2"

Storage:

width 13' 6" x depth 9' 6"

What's Included In This Plan Set

See a sample plan set

Foundation Plan(s): Footing locations, foundation details, etc.
Floor Plan(s): Layout of floor plan, window/door schedule, interior and exterior dimensions
Exterior Elevations: Exterior on all four sides, siding notes, roof pitches, garage door heights, etc.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): Cut-through view of home. Shows foundation, insulation, wall construction, ceiling heights, etc.
Electrical Plan(s): Lighting, switches, electrical outlet placement throughout home.
Detail Sheet(s): Additional structural details included in most log and ICF plans. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Construction Notes / Detail(s): Referencing the entirety of the project.
Framing Detail(s): Location of supporting walls and beams. Location/spacing of floor joists, floor framing details. Layout of roof, roof framing details, truss/rafter locations, connection details etc. If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set:
$1395.00

5 printed plan sets mailed to you.

CAD Single Build:
$1495.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1495.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy and PDF Set:
$1645.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$2195.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Walk Out Basement:
$0.00

Ideal for a sloping lot, lower level with outdoor access.

Framing

Insulated Concrete Forms:
$0.00

ICF Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Right-Reading Reverse:
$195.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$165.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$395.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$165.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
