Full Specs & Features
Depth : 79'
Height : 28'
Width : 79'
First Floor: 2278 sq/ft height 8'
Second Floor: 942 sq/ft height 8'
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Master Sitting Area
Unfinished Future Space
Carport Porte Cochere
Covered Front Porch
183 sq/ft width 11' x depth 16' 8"
177 sq/ft width 13' 8" x depth 13'
165 sq/ft width 15' x depth 11'
119 sq/ft width 9' x depth 13' 4"
132 sq/ft width 11' x depth 12'
210 sq/ft width 14' x depth 15'
380 sq/ft width 20' x depth 19'
255 sq/ft width 13' 8" x depth 18' 8"
157 sq/ft width 10' 6" x depth 15'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

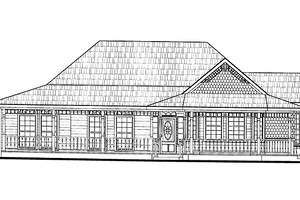

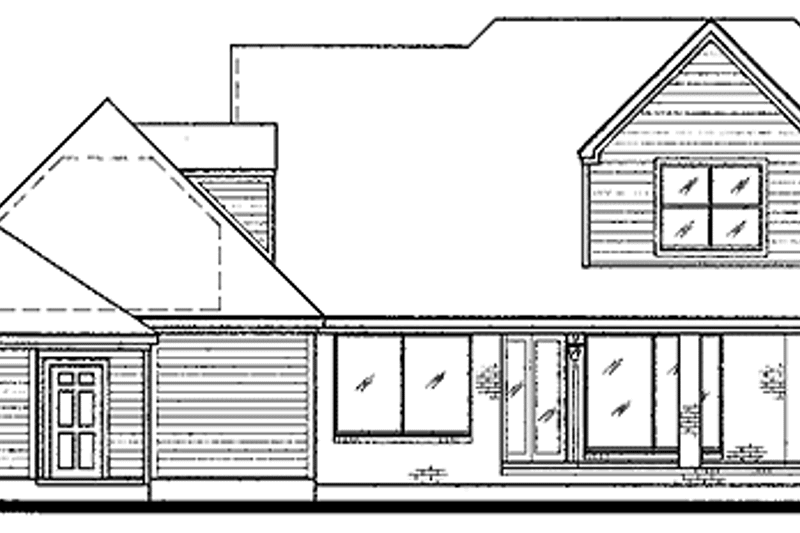

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

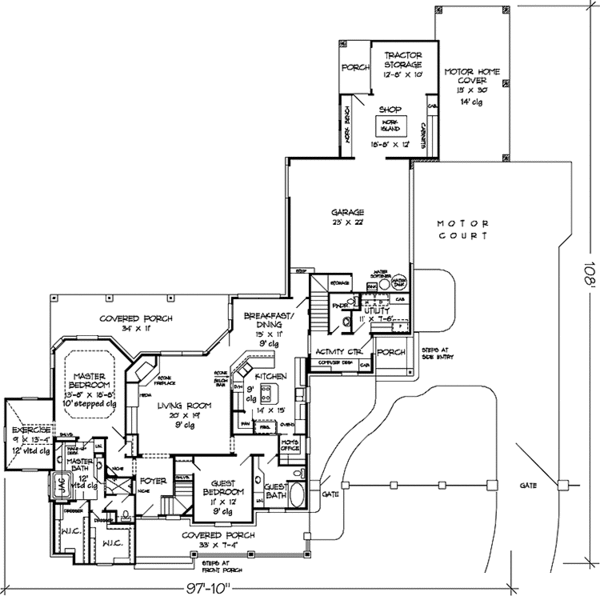

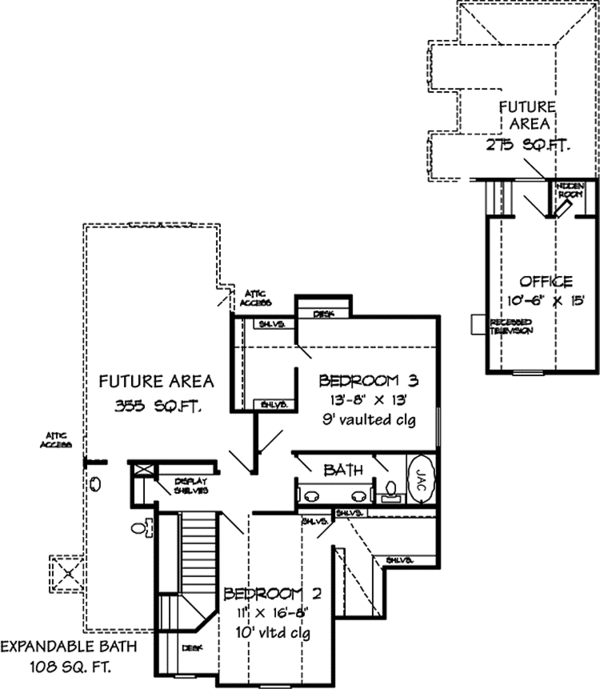

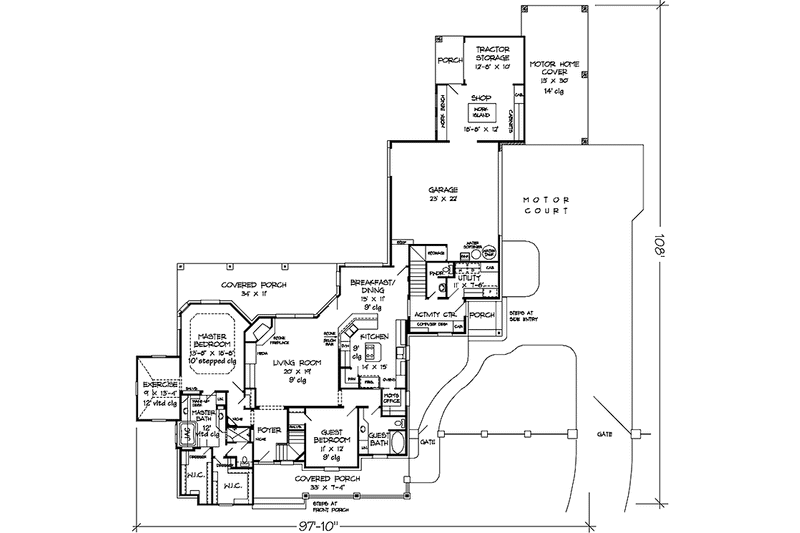

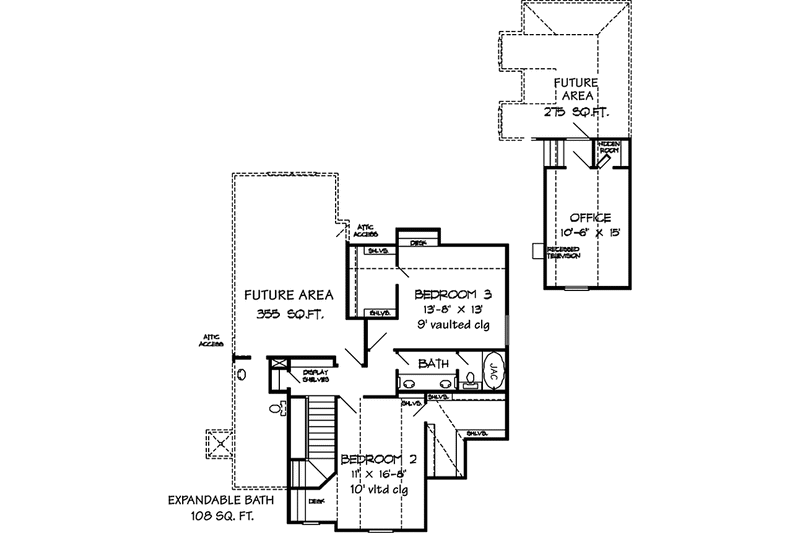

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
