Plan Description


This one-story layout balances open gathering areas (like the great room and island kitchen) with more intimate nooks, including the music nook near the foyer and a sitting area in the master suite. Owners will also enjoy the upscale features of the master bathroom, including an extra-large shower and a seated vanity station. Two bedrooms, two bathrooms, and a flexible study provide comfortable accommodations for family and friends on the opposite side of the home. The large lanai encourages outdoor relaxation. This plan is not for sale in Collier and Lee Counties in Florida without the written consent of the designer.

Full Specs & Features


Dimension

Depth : 99' 4"

Height : 27' 1"

Width : 67' 8"

Area

First Floor: 3211 sq/ft

Garage: 796 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Block

Bedroom Features

Formal Dining Room

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Master Sitting Area

Open Floor Plan

Garage Features

Side Entry Garage

Outdoor Spaces

Courtyard

Covered Rear Porch

Rooms

Covered Front Porch:

147 sq/ft

Covered Rear Porch:

777 sq/ft

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

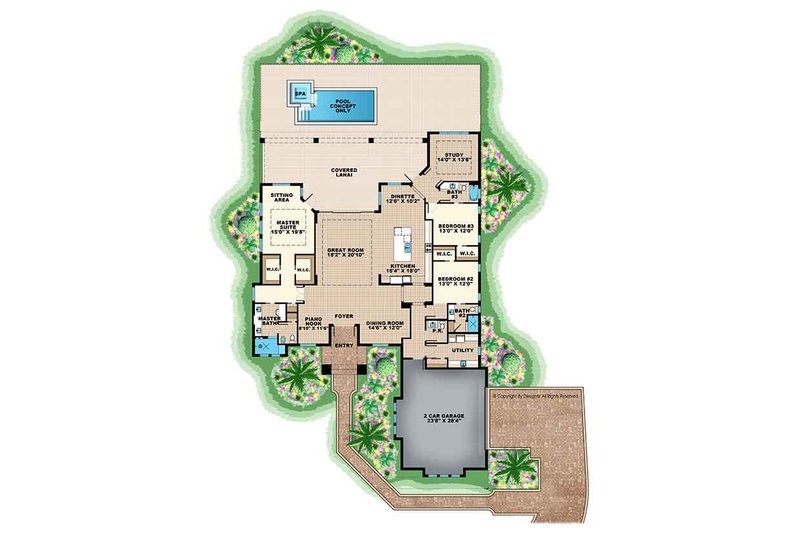

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-877-222-1762

Plan Set

CAD Set:
$1700.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set:
$1700.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set:
$1700.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Audio Video Design:
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
