PLAN 17-2632
Key Specs
3124
sq ft
3
Beds
3.5
Baths
1
Floors
3
Garages
Cost to Build Reports Only $9.99 for a Limited Time! Use Code CTB2021
This report will provide you cost estimates based on location and building materials.
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
PLAN 17-2632
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description
Gently curving arches and a grand covered porch liven up the facade of this palatial home. The foyer is flanked by columns defining the formal dining room and arched openings to other areas of the home. The grand room is situated beneath a thirteen-foot pan ceiling. Doors lead to the morning room and the rear skylit porch. The morning room enjoys spectacular views of the patio and separates the modern kitchen from the gathering room. Two family bedrooms are located nearby. The other side of the home holds the fantastic master suite and the study/nursery. The suite features patio access, a roomy sitting area with bay windows, His and Hers walk-in closets and a luxurious private bath. A three-car garage with a storage room caps this design. Please specify crawlspace or slab foundation when ordering.
Full Specs & Features
Height : 24' 8"
Width : 70'
Roof Framing : Conventional
Roof Type : Shingle
Framing : Wood - 2x4
Formal Dining Room
Guest Suite
Split Bedrooms
Family Room Keeping Room
Great Room Living Room
Covered Rear Porch
Bedroom 2:
129 sq/ft width 12' 6" x depth 10' 4"
Bedroom 3:
121 sq/ft width 11' x depth 11'
Breakfast Room:
90 sq/ft width 9' x depth 10'
Dining Room:
210 sq/ft width 14' x depth 15'
Game Room:
168 sq/ft width 12' x depth 14'
Garage:
760 sq/ft width 31' 8" x depth 24'
Gathering Room:
388 sq/ft width 22' x depth 17' 8"
Kitchen:
210 sq/ft width 15' x depth 14'
Master Bathroom:
192 sq/ft width 12' x depth 16'
Master Bedroom:
520 sq/ft width 25' 2" x depth 20' 8"
Porch - Front:
90 sq/ft width 6' x depth 15'
Porch - Rear:
250 sq/ft width 10' x depth 25'
Wash Room:
143 sq/ft width 11' x depth 13'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.

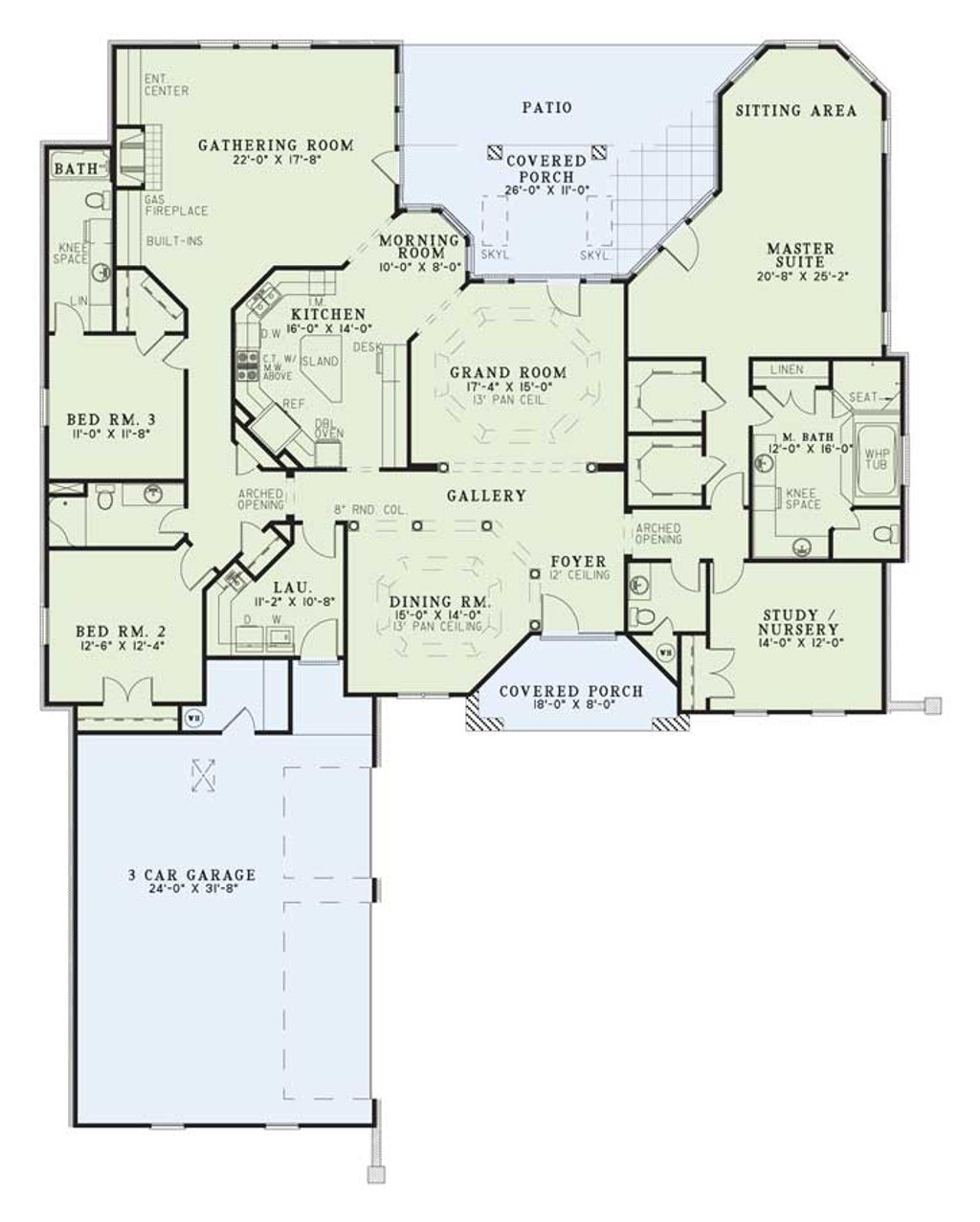

- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
- Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
| PDF Set
: $1200.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| 5 Copy Set
: $1300.00 |
5 printed plan sets mailed to you. |
| 5 Copy and PDF Set
: $1550.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $2400.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Crawlspace: $0.00 |
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
| Basement: $299.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Daylight Basement: $299.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x4: $0.00 |
Wood 2x4 |
| Wood 2x6: $299.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $199.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $75.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Roof Framing Detail
: $149.00 |
Get a detailed plan for your roof framing. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
