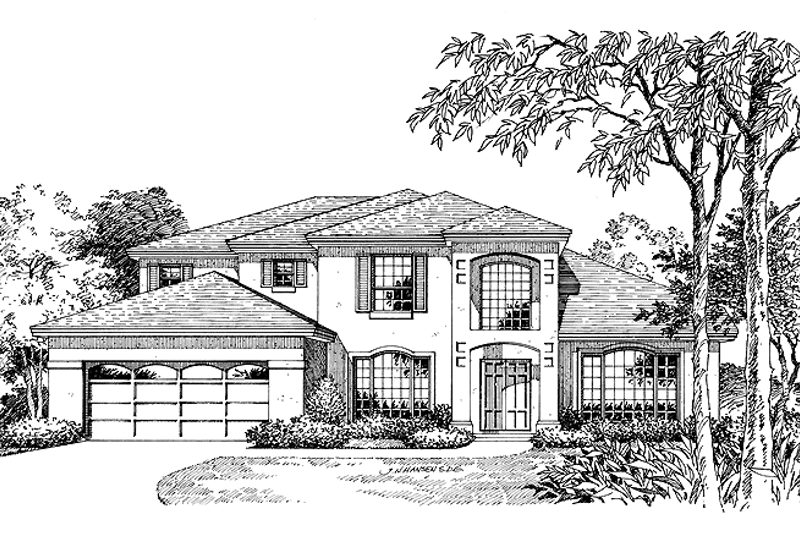

Architectural House Design - Mediterranean Exterior - Front Elevation Plan #1015-4

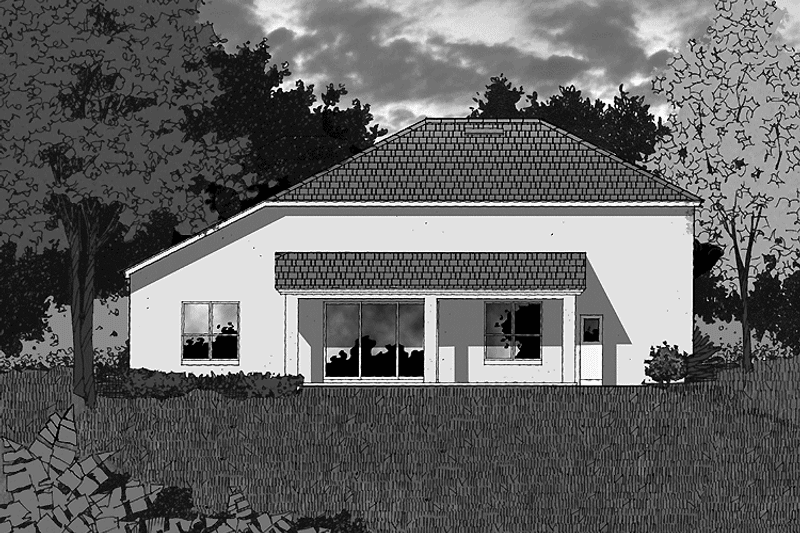

Architectural House Design - Mediterranean Exterior - Rear Elevation Plan #1015-4

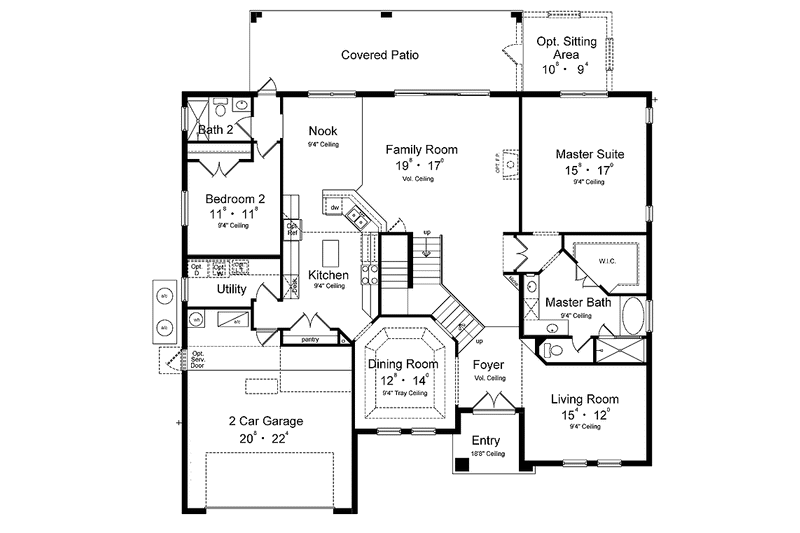

Architectural House Design - Mediterranean Floor Plan - Main Floor Plan #1015-4

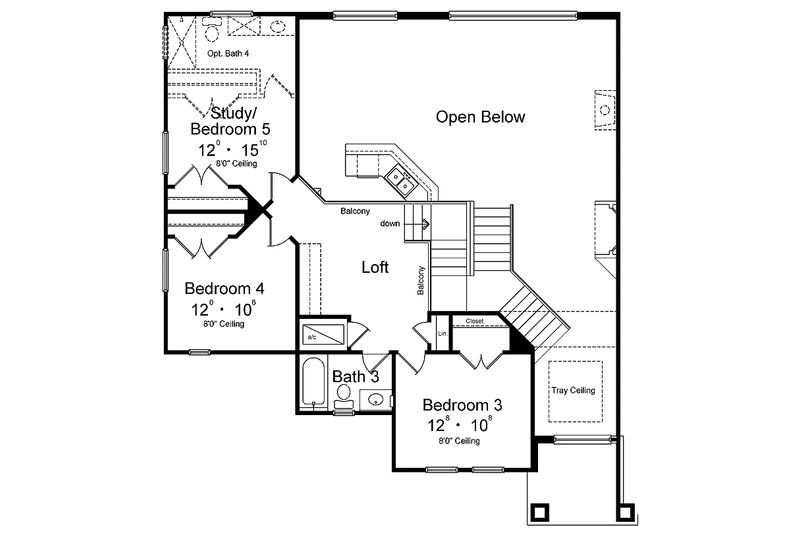

Architectural House Design - Mediterranean Floor Plan - Upper Floor Plan #1015-4

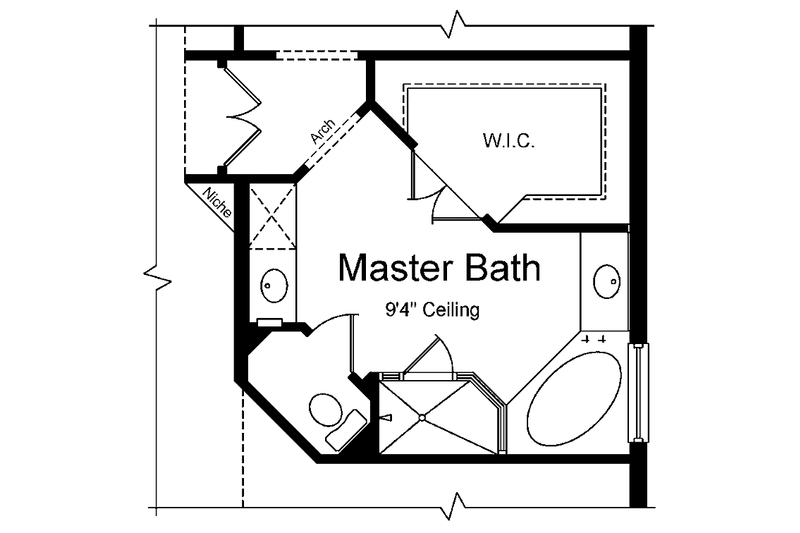

Architectural House Design - Mediterranean Floor Plan - Other Floor Plan #1015-4

Jump to:
All (6)
Exterior (3)
Floor plans (3)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

3100
sq ft

5
Beds

3
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$42.50/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design

$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets

$25.50

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $1105.00

You save $195.00 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1015-4

Home > Style > Mediterranean

Key Specs

3100
sq ft

5
Beds

3
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This grand design will appeal to those homebuyers who want more bang for their buck. This plan is also cost effective and efficient to build with its simple foundation design. Combining the best of traditional and contemporary with its split entry design and open kitchen and gathering room, this home offers a unique composition that customers will love. The Master Suite and Guest Suite on the first floor offer secluded luxury for the owners and visitors, while the second floor has the ability to convert the den/study to a fifth bedroom complete with a full bath.

Floor Plans

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Reverse

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 53'

Height : 27' 9"

Width : 59'

Area

First Floor: 2293 sq/ft

Garage: 511 sq/ft

Second Floor: 807 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stucco

Framing : Block

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Main Floor Laundry

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

136 sq/ft width 11' 8" x depth 11' 8"

Bedroom 3:

135 sq/ft width 12' 8" x depth 10' 8"

Bedroom 4:

126 sq/ft width 12' x depth 10' 6"

Bedroom 5:

189 sq/ft width 12' x depth 15' 10"

Breakfast Room:

123 sq/ft width 10' x depth 12' 4"

Dining Room:

177 sq/ft width 12' 8" x depth 14'

Family Room:

334 sq/ft width 19' 8" x depth 17'

Kitchen:

156 sq/ft width 11' 10" x depth 13' 3"

Laundry Room:

69 sq/ft width 11' 8" x depth 5' 11"

Living Room:

183 sq/ft width 15' 4" x depth 12'

Master Bathroom:

138 sq/ft width 15' 5" x depth 9'

Master Bedroom:

266 sq/ft width 15' 8" x depth 17'

Sitting Area:

99 sq/ft width 10' 8" x depth 9' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1105.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1275.00

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1402.50

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$2210.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$595.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$25.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
