Plan Description

Amenities abound throughout this three-bedroom Mediterranean home. With large rooms and spacious outdoor living areas, this home is great for entertaining. A summer kitchen on the covered lanai and a full pool bath invite the possibility of warm weather fun. The lavish master suite sits to the right of the first floor, equipped with a sitting area, His and Hers walk-in closets, and a dual-sink vanity. Upstairs houses two additional family bedrooms--both with full baths--a loft area, and a large study. A three-car garage completes this plan.Note: First story walls are constructed of concrete block; upper stories are 2 x 6 wood-framed.

Floor Plans

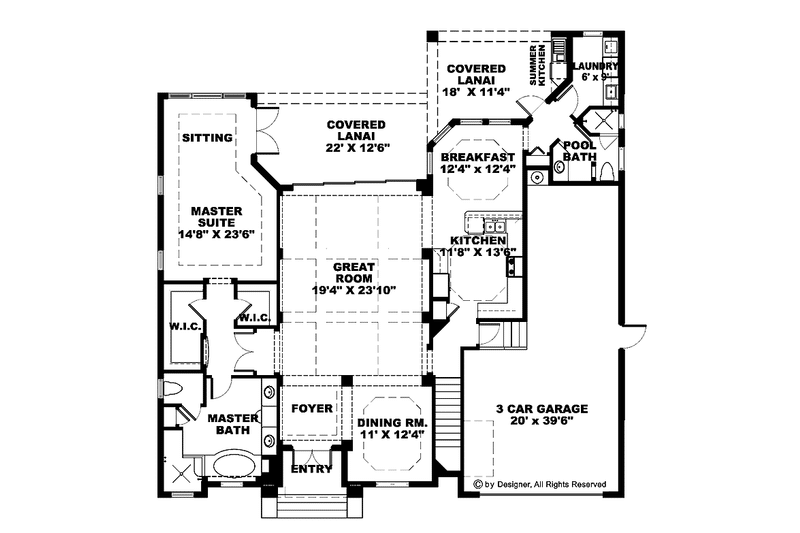

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

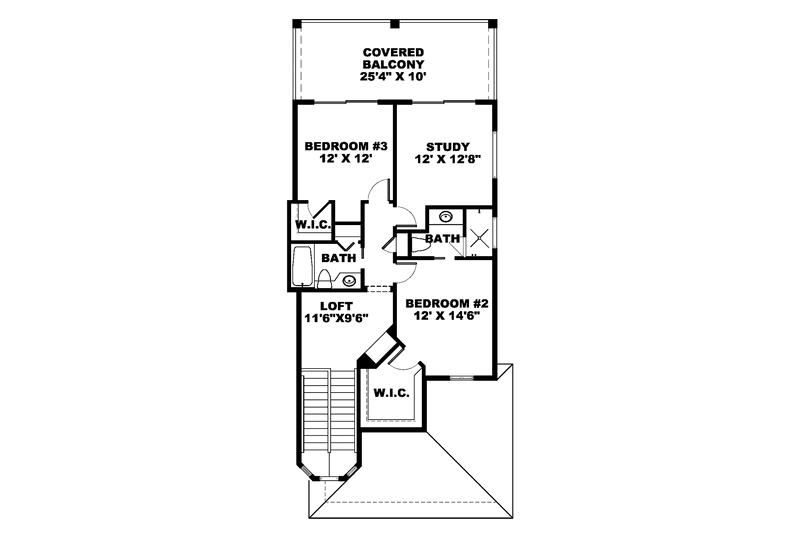

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 62' 8"

Height : 35'

Width : 60'

Area

First Floor: 2114 sq/ft

Second Floor: 924 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Formal Dining Room

Main Floor Master Bedroom

Kitchen Features

Breakfast Nook

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Main Floor Laundry

Master Sitting Area

Open Floor Plan

Outdoor Spaces

Balcony

Grill Deck Sundeck

Outdoor Kitchen Grill

Rooms

3rd BR Closet:

22 sq/ft width 5' x depth 4' 6"

Bathroom 2:

72 sq/ft width 8' 6" x depth 8' 6"

Bathroom 3:

60 sq/ft width 10' x depth 6'

Bedroom 2:

156 sq/ft width 12' x depth 13'

Bedroom 2 Closet:

56 sq/ft width 8' x depth 7'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bedroom 3 Closet:

56 sq/ft width 8' x depth 7'

Breakfast Room:

136 sq/ft width 11' 8" x depth 11' 8"

Den/Office or Bedroom 1:

152 sq/ft width 12' x depth 12' 8"

Dining Room:

146 sq/ft width 11' x depth 13' 4"

Foyer:

35 sq/ft width 6' 4" x depth 5' 8"

Garage:

790 sq/ft width 20' x depth 39' 6"

Gathering Room:

460 sq/ft width 19' 4" x depth 23' 10"

Hall Bathroom:

80 sq/ft width 10' x depth 8'

Kitchen:

155 sq/ft width 11' 8" x depth 13' 4"

Laundry Room:

54 sq/ft width 6' x depth 9'

Master Bathroom:

210 sq/ft width 15' x depth 14'

Master Bedroom:

344 sq/ft width 14' 8" x depth 23' 6"

Master Closet:

161 sq/ft width 14' x depth 11' 6"

Porch - Rear:

234 sq/ft width 26' x depth 9'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

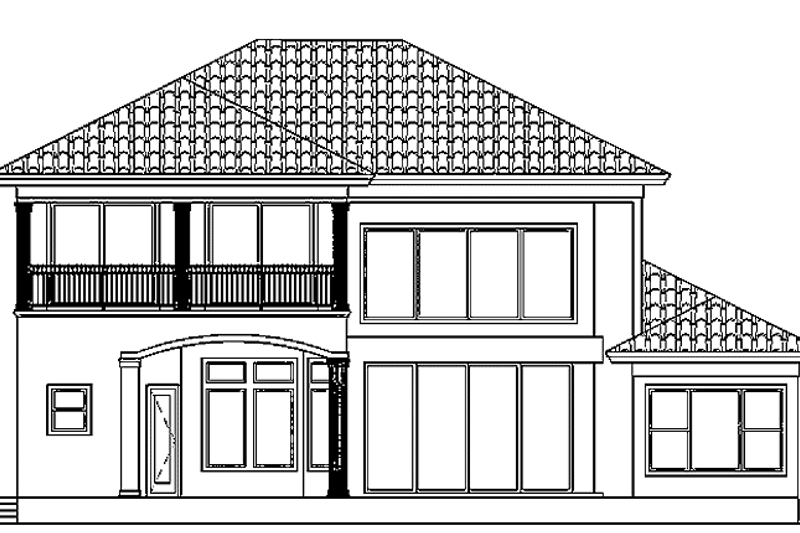

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-877-222-1762

Plan Set

CAD Set:
$1032.75

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1032.75

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1032.75

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets:
$76.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
