PLAN 1010-169

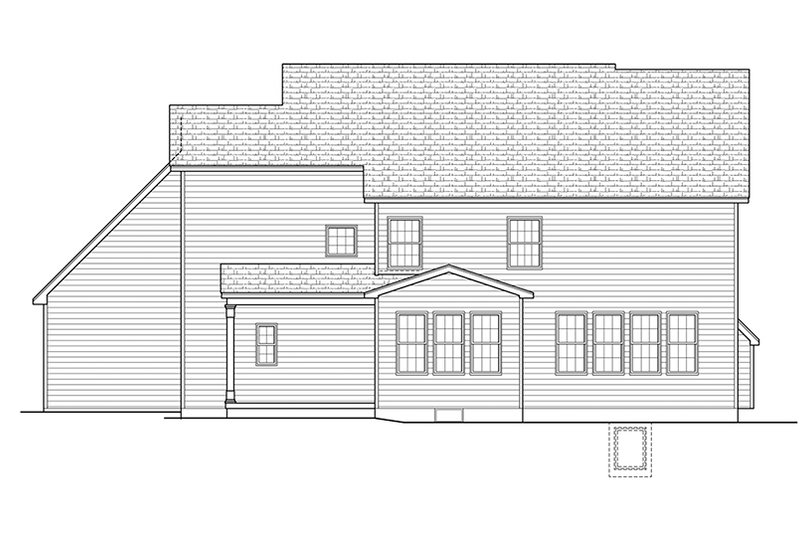

Architectural House Design - Colonial Exterior - Rear Elevation Plan #1010-169

Key Specs

3017
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

	Additional Construction Sets $75.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $200.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets $100.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$2050.00

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1010-169

Key Specs

3017
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Smart storage abounds in this design, from the large pantry to the cubbies and walk-in closet in the mudroom. A snack bar and central island add counter space to the kitchen, which overlooks the morning and great rooms and also steps out to the porch. On the left side of the home, a study provides a place for homework or a home office. Upstairs, the master suite takes a modern turn by eschewing the tub in favor of an extra-large shower. Also in this suite, a walk-in closet provides plenty of wardrobe storage and a well-placed linen closet keeps washcloths where you need them.

Floor Plans

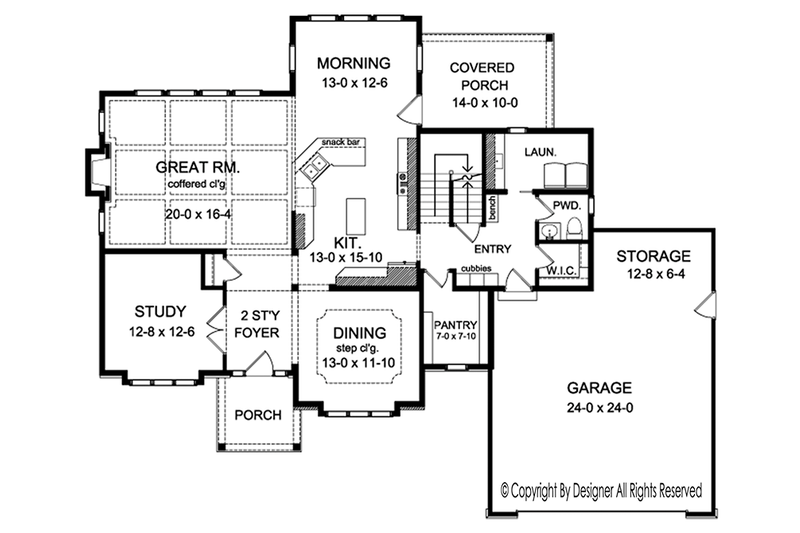

Floor Plan - Main Floor

Reverse

Architectural House Design - Colonial Floor Plan - Main Floor Plan #1010-169

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

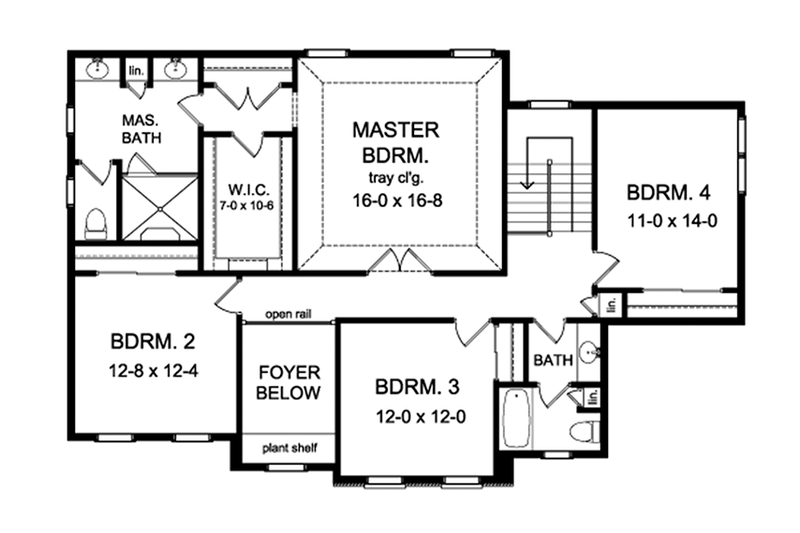

Floor Plan - Upper Floor

Reverse

Architectural House Design - Colonial Floor Plan - Upper Floor Plan #1010-169

Full Specs & Features

Dimension

Depth : 53' 4"
Height : 33'
Width : 65' 8"

Area

Basement Unfinished: 1599 sq/ft
First Floor: 1599 sq/ft height 9'
Garage: 672 sq/ft
Second Floor: 1418 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Main Floor Laundry
Open Floor Plan

Garage Features

Front Entry Garage
Golf Cart Storage

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

156 sq/ft width 12' 8" x depth 12' 4"

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bedroom 4:

154 sq/ft width 11' x depth 14'

Covered Front Porch:

72 sq/ft

Covered Rear Porch:

168 sq/ft width 14' x depth 10'

Dining Room:

154 sq/ft

Garage:

576 sq/ft width 24' x depth 24'

Garage Storage:

80 sq/ft width 12' 8" x depth 6' 4"

Great Room:

326 sq/ft width 20' x depth 16' 4"

Kitchen:

206 sq/ft width 13' x depth 11' 10"

Master Closet:

74 sq/ft width 7' x depth 10' 6"

Master Bedroom:

267 sq/ft width 16' x depth 16' 8"

Morning Room:

163 sq/ft width 13' x depth 12' 6"

Pantry:

55 sq/ft width 7' x depth 7' 10"

Study:

283 sq/ft width 12' 8" x depth 12' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
CAD Plans are in AutoDesk Architecture.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $2050.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $2100.00	5 printed plan sets mailed to you.
CAD Set : $4100.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set : $1000.00	One electronic set for bidding purposes only. Not a legal building set for construction.
Single Set : $1200.00	One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Additional Construction Sets : $75.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $100.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
