Key Specs
2988
sq ft
3
Beds
2.5
Baths
1
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

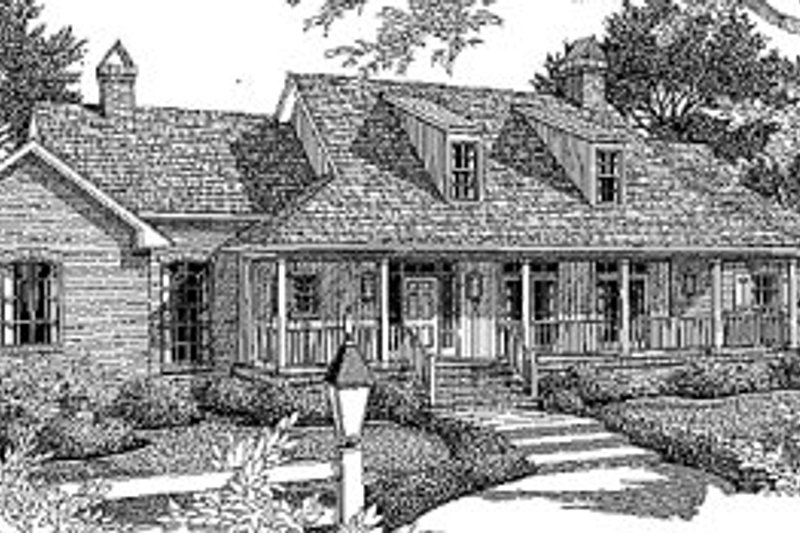

PLAN 41-165
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 78'
Height : 24'
Width : 92'
Area
First Floor: 2988 sq/ft height 9'
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Family Room Keeping Room
Garage Features
Rear Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
3rd BR Closet:
29 sq/ft width 3' 8" x depth 8'
Bathroom 2:
40 sq/ft width 6' x depth 6' 8"
Bedroom 3:
164 sq/ft width 12' x depth 13' 8"
Bedroom 4:
168 sq/ft width 12' x depth 14'
Bedroom 4 Closet:
31 sq/ft width 9' 4" x depth 3' 4"
Breakfast Room:
381 sq/ft width 22' x depth 17' 4"
Dining Room:
168 sq/ft width 12' x depth 14'
Foyer:
128 sq/ft width 10' 8" x depth 12'
Garage:
575 sq/ft width 25' x depth 23'
Hall:
width 3' 8" x depth 0"
Hall Bathroom:
88 sq/ft width 16' x depth 5' 6"
Hall Closet:
7 sq/ft width 2' x depth 3' 8"
Kitchen:
190 sq/ft width 11' x depth 17' 4"
Living Room:
337 sq/ft width 19' 6" x depth 17' 4"
Master Bathroom:
160 sq/ft width 10' 6" x depth 15' 4"
Master Bedroom:
297 sq/ft width 17' 6" x depth 17'
Master Closet:
84 sq/ft width 7' 6" x depth 11' 4"
Porch - Front:
368 sq/ft width 8' x depth 46'
Porch - Rear:
224 sq/ft width 8' x depth 28'
Powder Room:
38 sq/ft width 5' 2" x depth 7' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

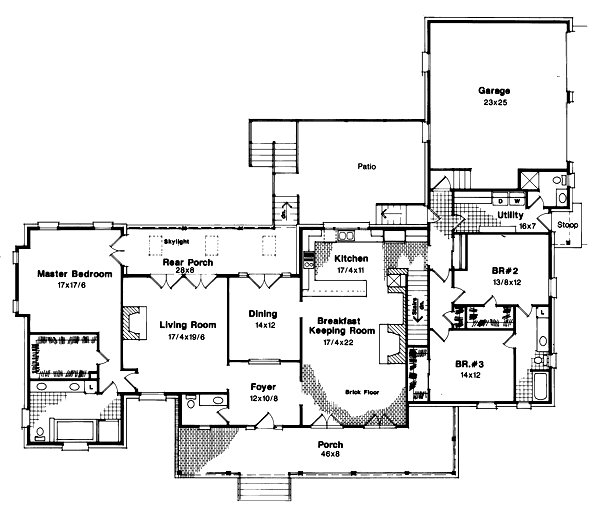

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$573.75
$658.75
$658.75
$1147.50
$467.50
Foundation
$0.00
Additional Options
$42.50
$140.25
$250.75
$33.15
$140.25
$42.50
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
