PLAN 1069-16

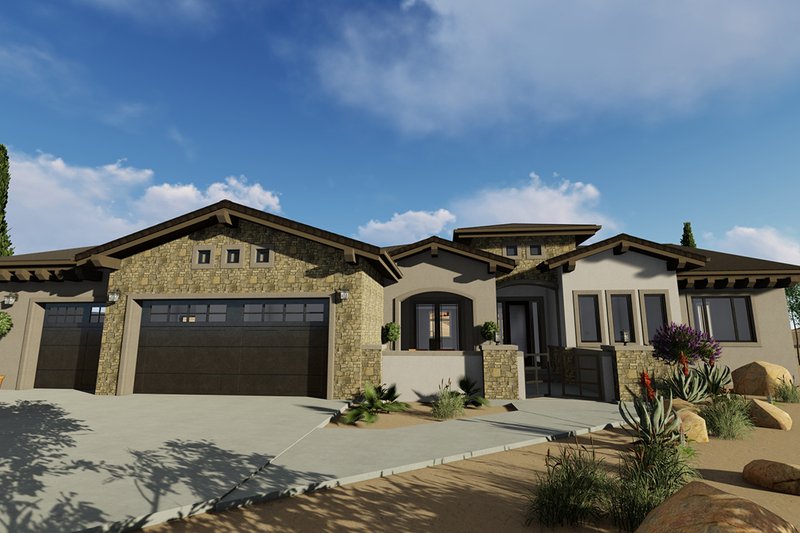

Architectural House Design - Adobe / Southwestern Exterior - Front Elevation Plan #1069-16
Architectural House Design - Adobe / Southwestern Exterior - Front Elevation Plan #1069-16
Architectural House Design - Adobe / Southwestern Exterior - Rear Elevation Plan #1069-16
Architectural House Design - Adobe / Southwestern Exterior - Other Elevation Plan #1069-16

Key Specs

sq ft





Select Plan Set Options

What's included?
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1069-16

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

Here's a new plan with the right priorities: kitchen, master suite, and outdoor living. Start with the kitchen: a massive island seats five people for casual gatherings, with the living room within sight. Don't miss the master suite's deluxe bathroom.

Full Specs & Features

Depth : 64' 4"
Height : 20' 1"
Width : 81' 8"
Main Floor : 2982 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Main Ceiling : 10'
Primary Pitch : 4/12
Roof Framing : Truss/Stick
Roof Type : Clay Tile/Concrete/Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco/Stone
Framing : 2x6
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Garage Features
Oversized Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch

Bathroom 2:

width 7' 8" x depth 10' 4"

Bathroom 3:

width 10' 1" x depth 5'

Bedroom 2:

width 12' x depth 14' 6"

Bedroom 3:

width 12' 2" x depth 14' 4"

Covered Patio:

width 17' 10" x depth 15' 10"


width 11' 2" x depth 14' 7"


width 7' 6" x depth 14' 10"


width 35' x depth 26' 6"


width 38' 10" x depth 4' 3"


width 9' 4" x depth 3' 2"


width 15' 4" x depth 17' 9"


width 11' 7" x depth 6' 9"

Living Room:

width 18' 4" x depth 16' 9"

Master Bath:

width 11' 3" x depth 13' 3"

Master Bedroom:

width 20' 3" x depth 17'

Master Closet:

width 9' 8" x depth 11' 1"


width 7' 7" x depth 6' 4"


width 12' 4" x depth 7' 2"


width 10' 4" x depth 12' 6"


width 5' x depth 9'


width 10' 4" x depth 5' 8"


width 5' 5" x depth 5' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Study Set :
One electronic set for bidding purposes only. Not a legal building set for construction.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.
Ideal for level lot, single layer concrete poured directly on grade.
Walk Out Basement:
Ideal for a sloping lot, lower level with outdoor access.


Wood 2x6:
Wood 2x6
Wood 2x4:
Wood 2x4

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Use License :
Additional Use License.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house for the standard plan. Please note materials list will not reflect optional add-ons such as foundation and framing.
Roof Framing Detail :
Get a detailed plan for your roof framing.
Unlimited Use License :
Unlimited Use License.
