PLAN 928-57
Key Specs
2973
sq ft
4
Beds
4.5
Baths
2
Floors
0
Garages
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-877-222-1762
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Phone: 1-877-222-1762
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 928-57
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description

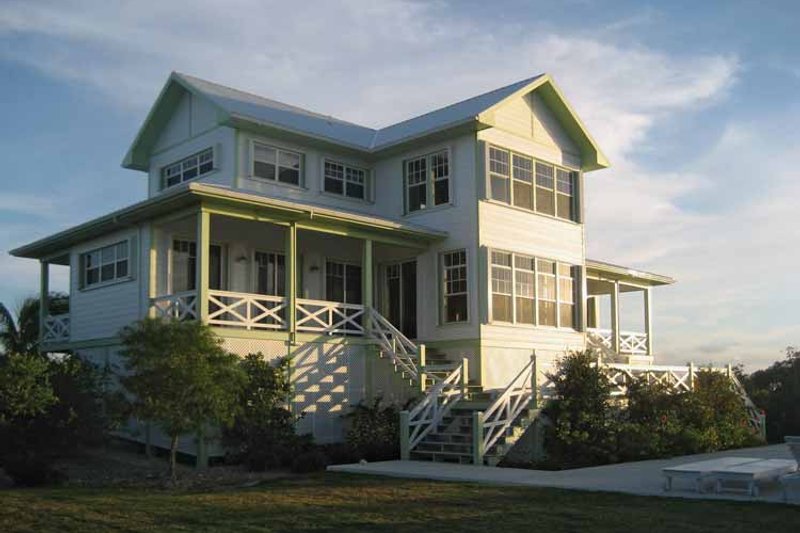

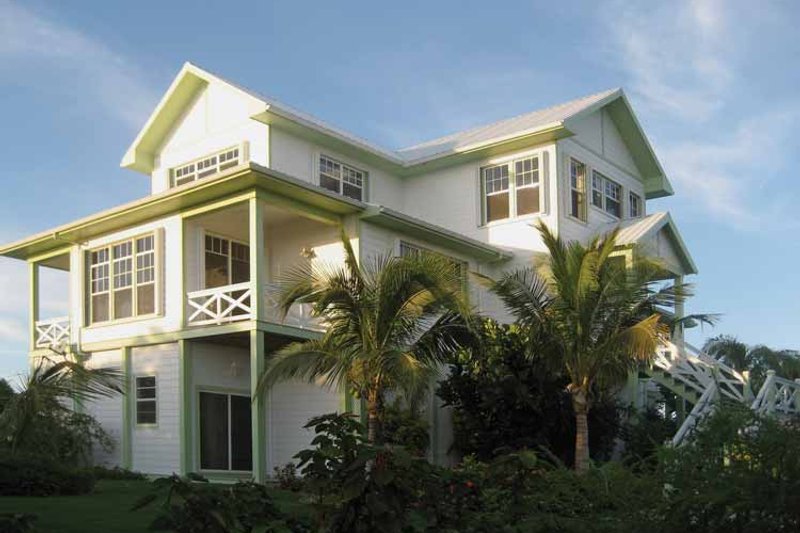

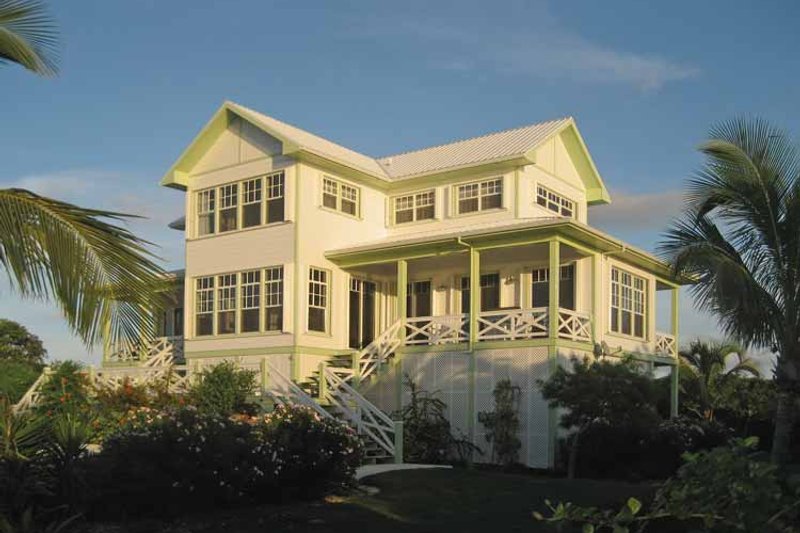

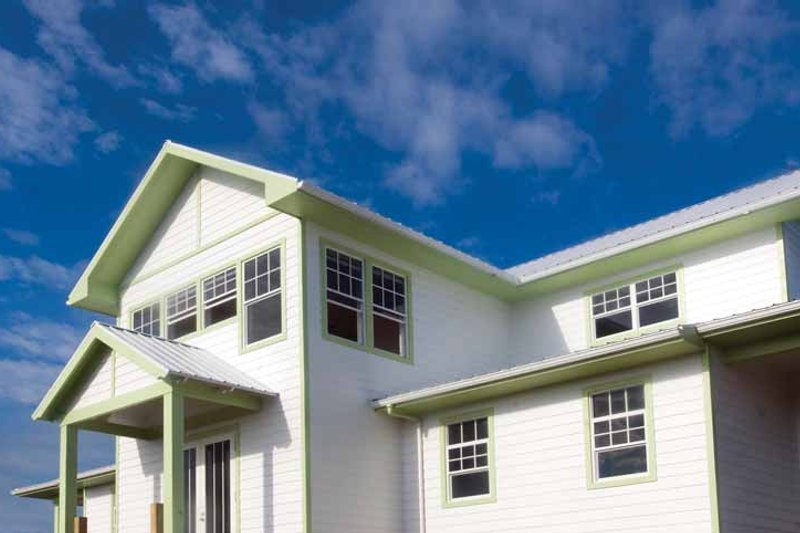

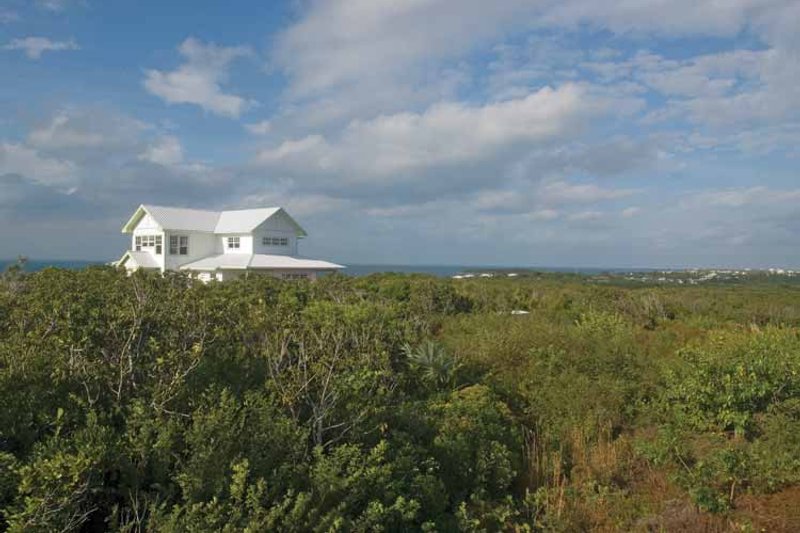

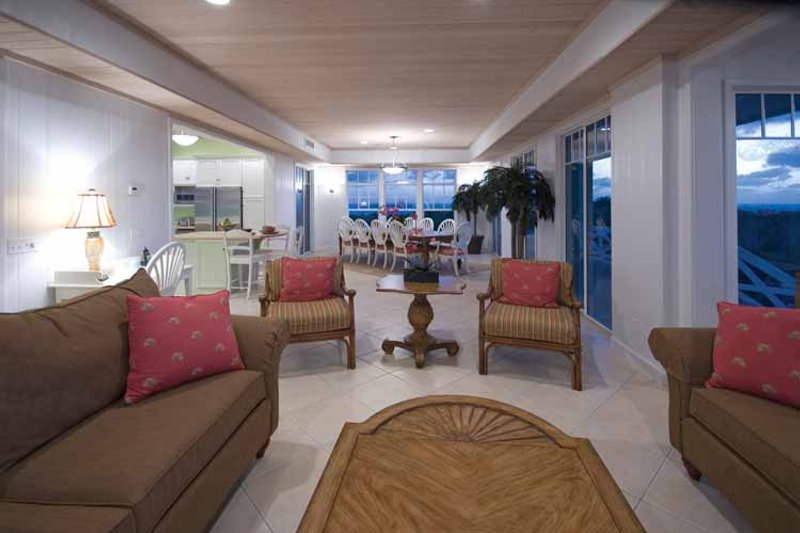

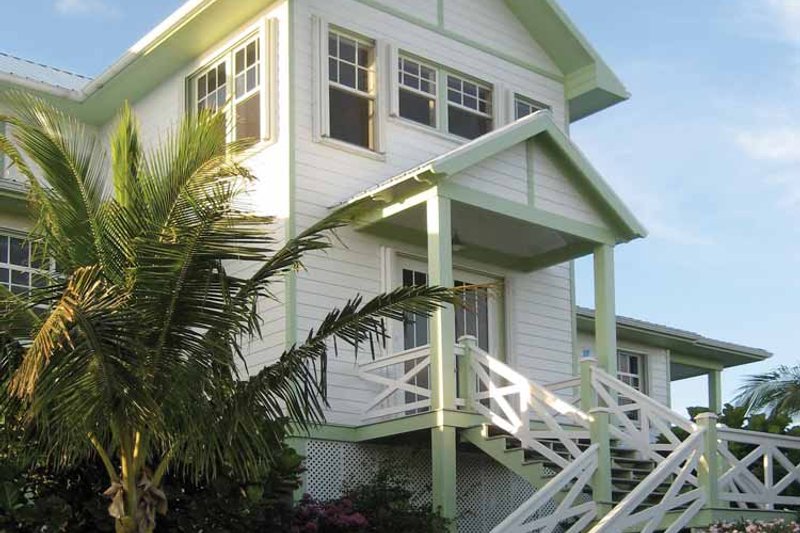

Southern style meets Arts & Crafts in this coastal home from Visbeen Associates. Multiple covered decks catch breezes from any direction. Highlights of the design include large windows throughout, a first-floor master suite with access to two decks (one of them private), and a spacious open kitchen/dining/living area. Three full suites on the second floor make the home a great place to host overnight guests.
Full Specs & Features
Dimension
Depth : 46'
Height : 34' 2"
Width : 64'
Height : 34' 2"
Width : 64'
Area

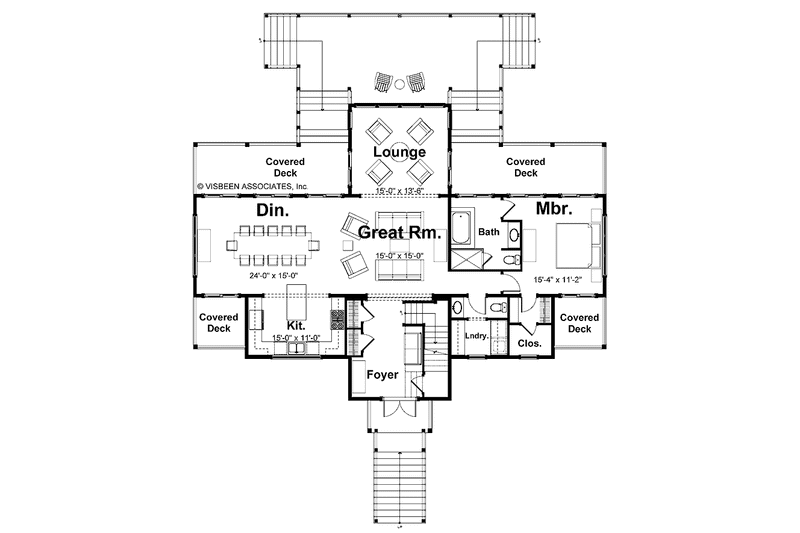

First Floor: 1807 sq/ft

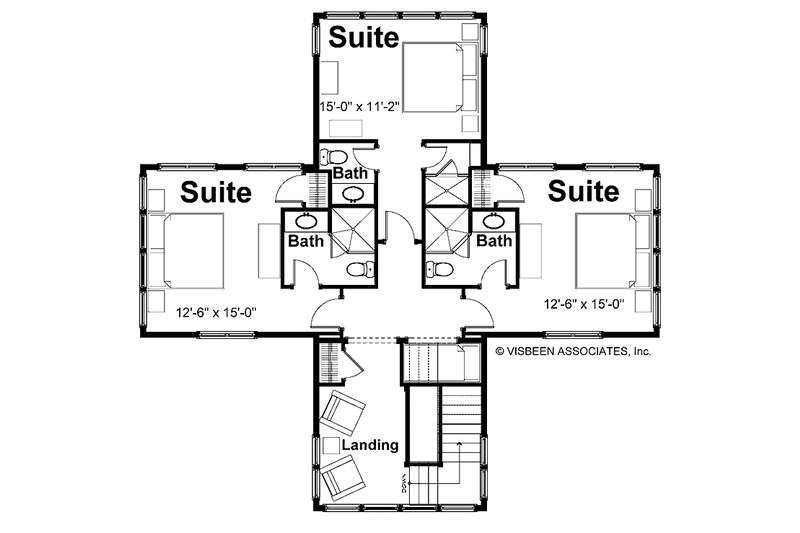

Second Floor: 1166 sq/ft
Second Floor: 1166 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Kitchenette Wet Bar
Additional Room Features

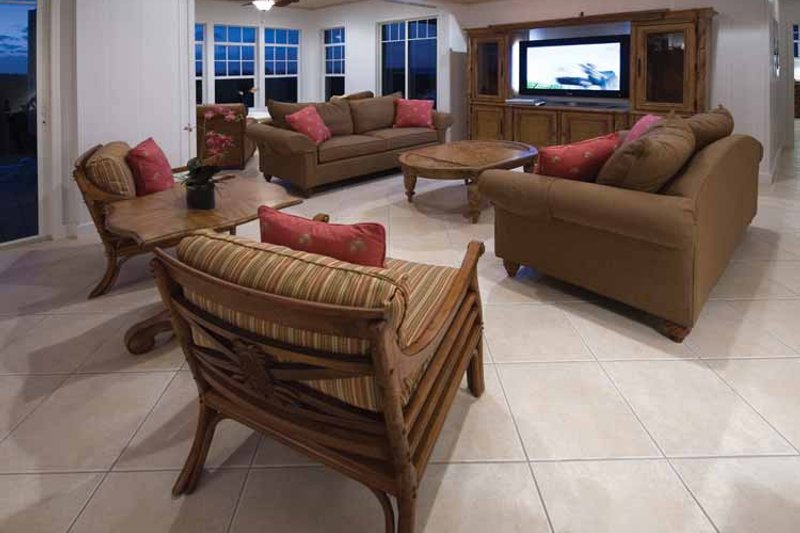

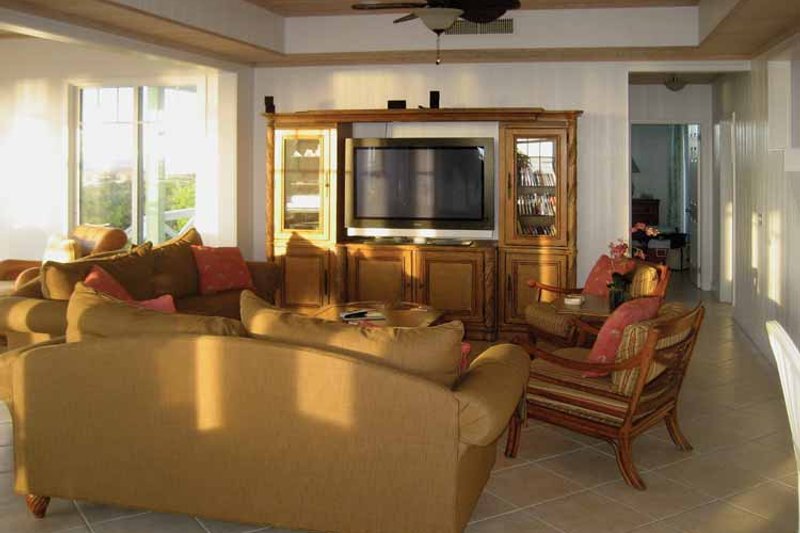

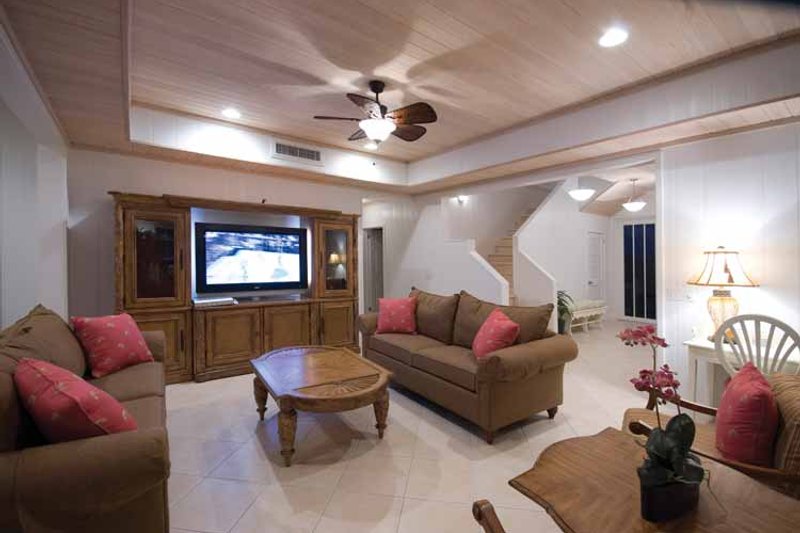

Great Room Living Room
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Main Floor Laundry
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Rear Porch
Deck
Deck
Rooms

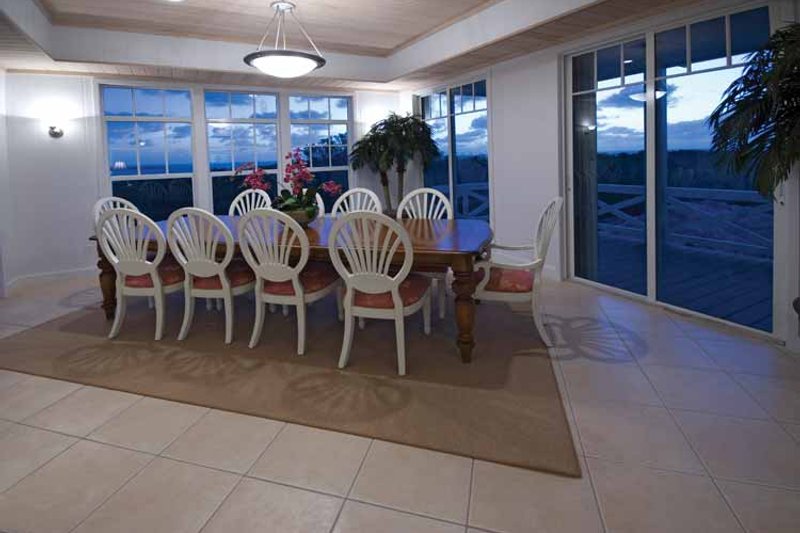

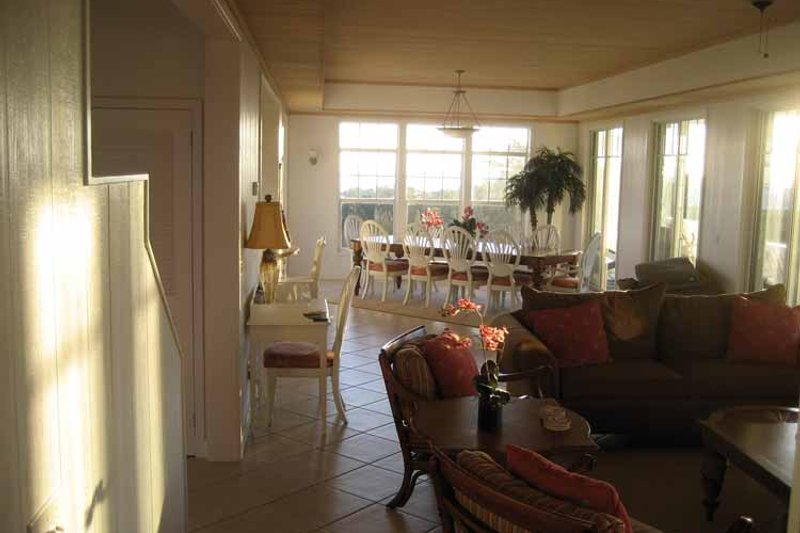

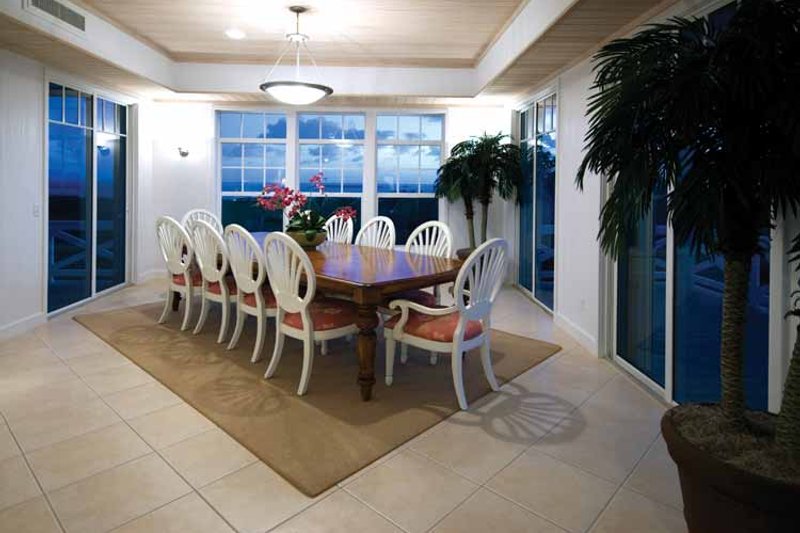

Dining Room:
360 sq/ft width 24' x depth 15'

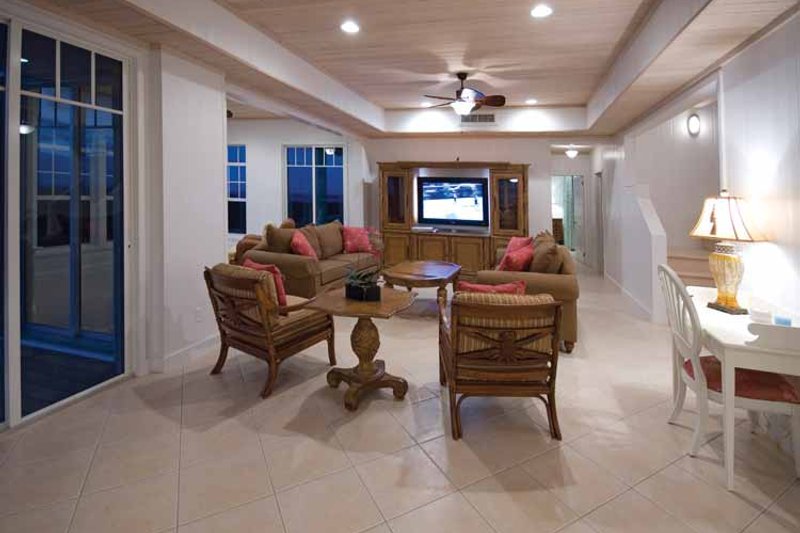

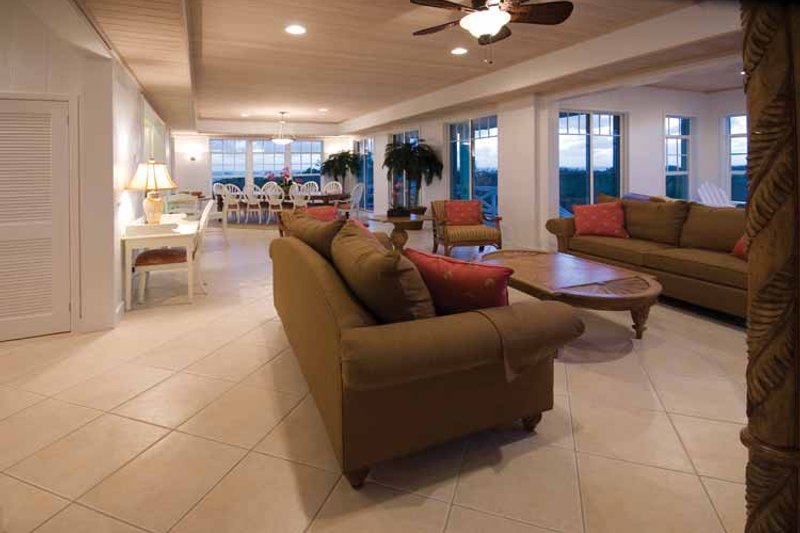

Great Room:
225 sq/ft width 15' x depth 15'

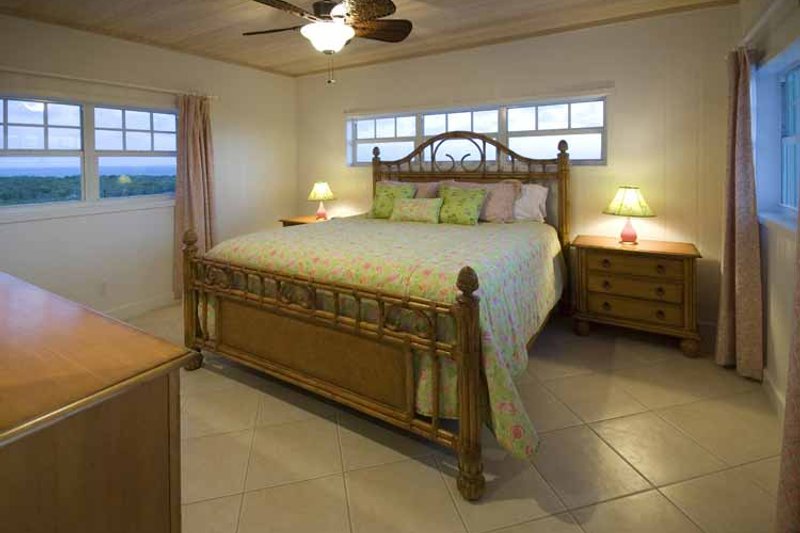

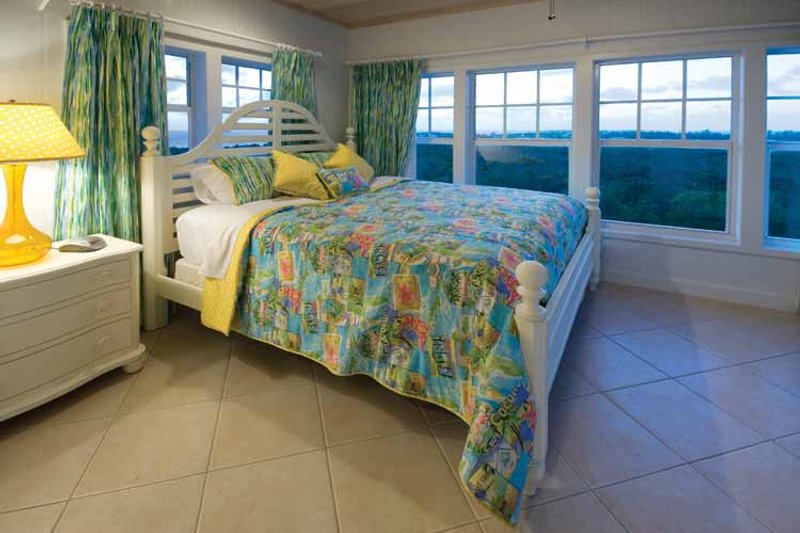

Guest Suite 1:
187 sq/ft width 12' 6" x depth 15'

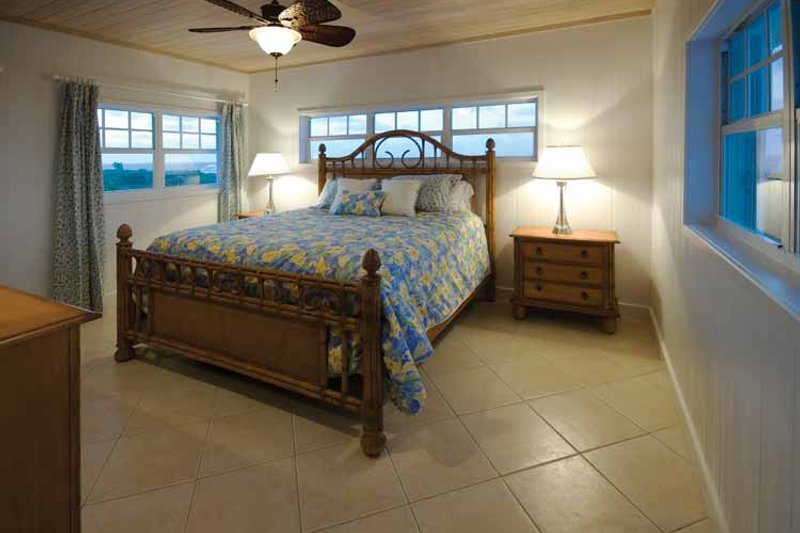

Guest Suite 2:
167 sq/ft width 15' x depth 11' 2"
Guest Suite 2:
187 sq/ft width 12' 6" x depth 15'

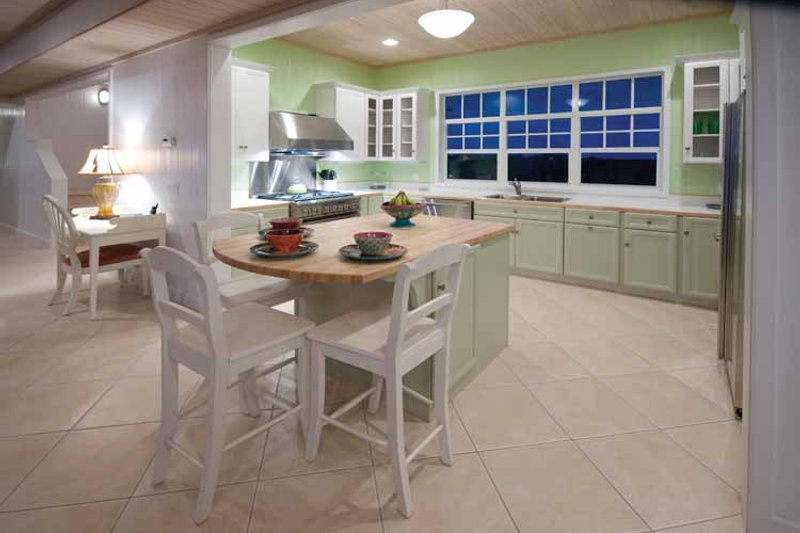

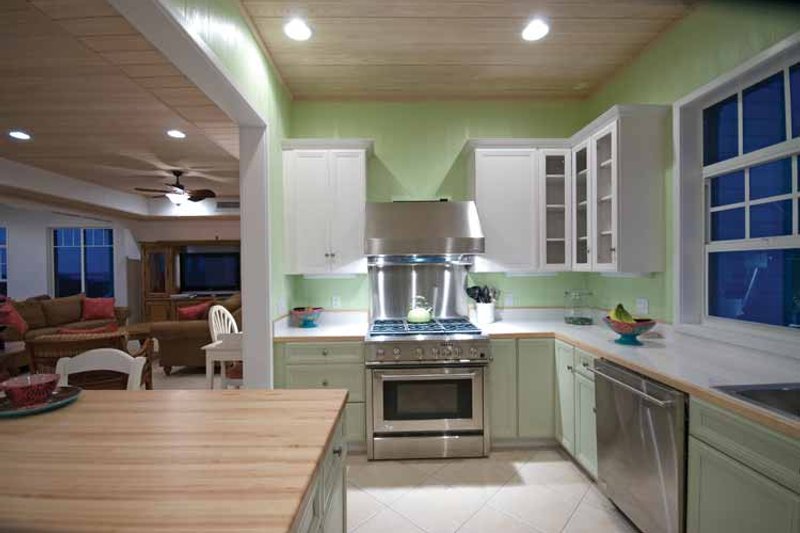

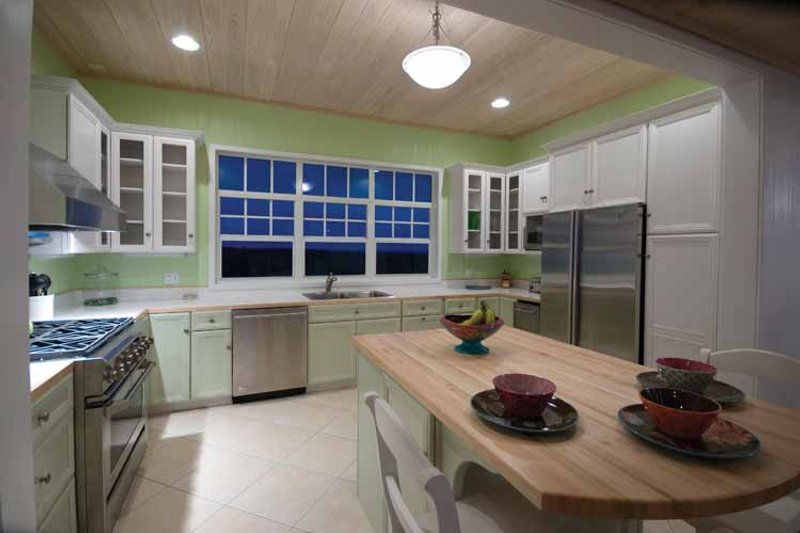

Kitchen:
165 sq/ft width 15' x depth 11'

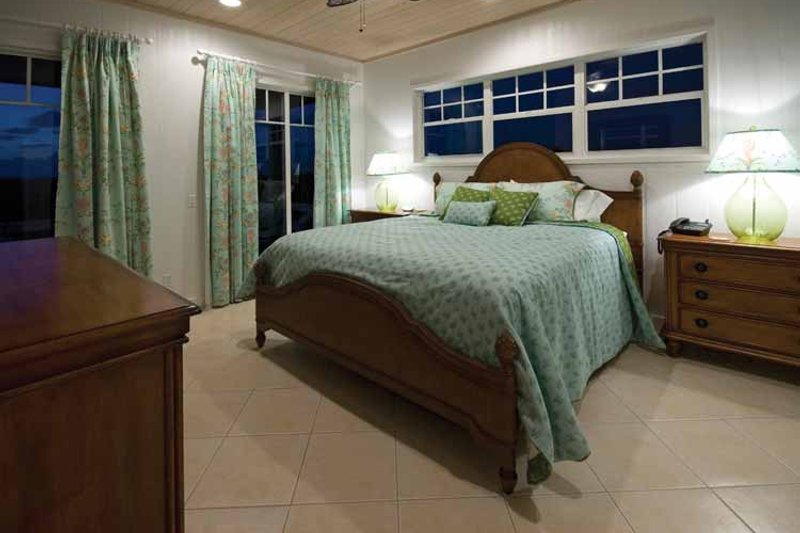

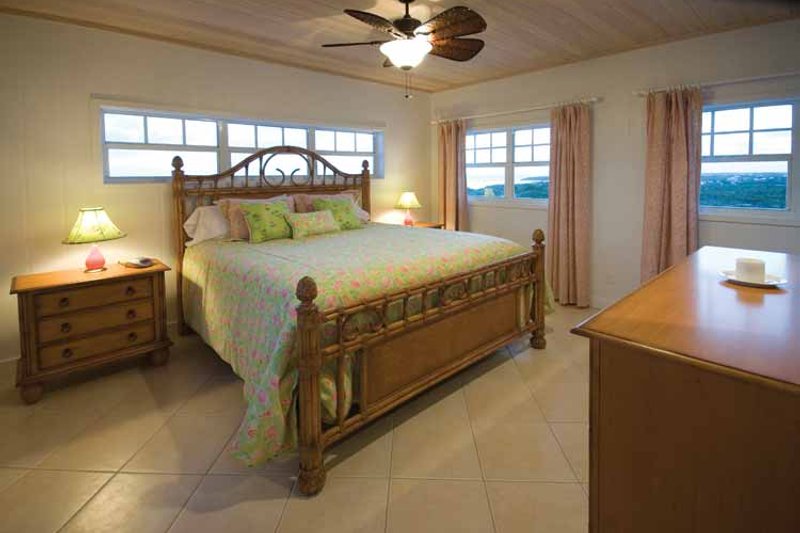

Master Bedroom:
17 sq/ft width 15' 4" x depth 1' 2"
Sitting Area:
202 sq/ft width 15' x depth 13' 6"
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Questions? Call 1-877-222-1762
Plan Set
| PDF Set : $1495.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $3495.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Pier: $0.00 |
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $195.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
