PLAN 413-139

Architectural House Design - Tudor Exterior - Other Elevation Plan #413-139

Architectural House Design - Tudor Exterior - Rear Elevation Plan #413-139

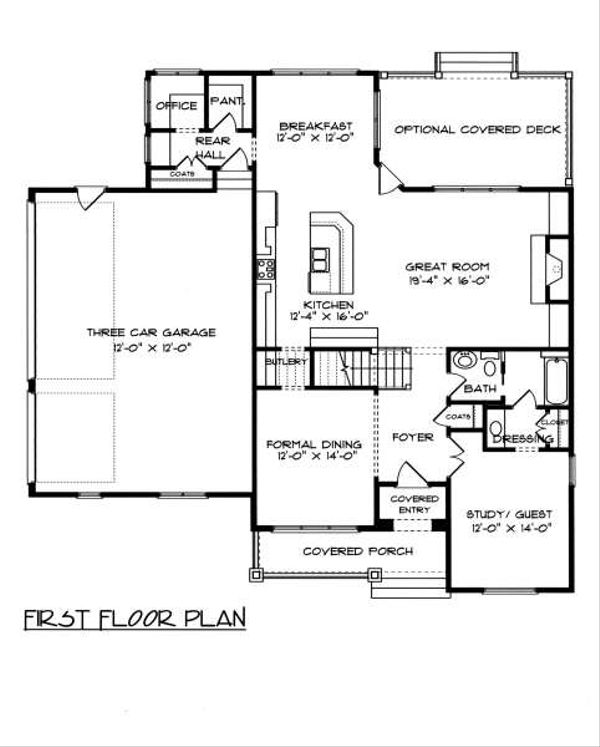

Architectural House Design - Tudor Floor Plan - Main Floor Plan #413-139

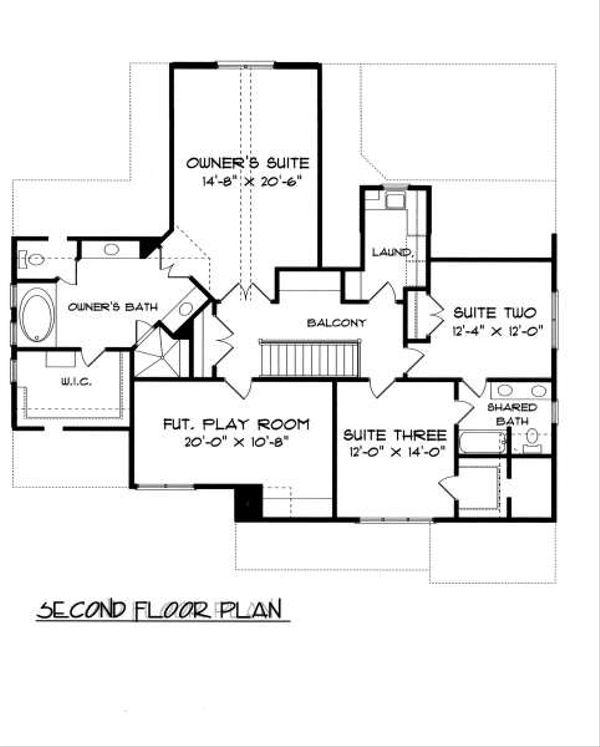

Architectural House Design - Tudor Floor Plan - Upper Floor Plan #413-139

Key Specs

2877
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

	Additional Construction Sets $100.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $100.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1800.00

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 413-139

Key Specs

2877
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Floor Plans

Floor Plan - Main Floor

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 53' 4"
Height : 32' 6"
Width : 55'

Area

Bonus: 257 sq/ft
First Floor: 1472 sq/ft
Garage: 719 sq/ft
Second Floor: 1405 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12

Exterior Wall Framing

Framing : 2"x4"

Bedroom Features

Guest Suite
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Great Room Living Room
Loft
Play Flex Room
Storage Area
Unfinished Future Space

Garage Features

Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For View Lot

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch

Rooms

Bedroom 2:

147 sq/ft width 12' 4" x depth 12'

Bedroom 3:

168 sq/ft width 12' x depth 14'

Dining Room:

168 sq/ft width 12' x depth 14'

Garage:

144 sq/ft width 12' x depth 12'

Great Room:

149 sq/ft width 9' 4" x depth 16'

Guest Bedroom:

168 sq/ft width 12' x depth 14'

Kitchen:

197 sq/ft width 12' 4" x depth 16'

Master Suite:

300 sq/ft width 14' 8" x depth 20' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $1800.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $2600.00	5 printed plan sets mailed to you.
CAD Set : $2600.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace: $0.00	Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab: $200.00	Ideal for level lot, single layer concrete poured directly on grade.
Basement: $400.00	Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement: $600.00	Ideal for sloping lot, lower level of home partially underground.

Additional Options

Additional Construction Sets : $100.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $100.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
