Plan Description
This sleek design incorporates outdoor living into the footprint of the home, with a fireplace-warmed space just outside the great room. The kitchen's island holds seating for four and an adjacent open dining room. For working from home or holding guests, the den near the front stands ready with a full bath attached. Upstairs, the master suite offers a huge walk-in closet and a spacious bathroom. Three more bedrooms share the hall bath with two sinks and convenient closeness to the laundry room. Corner windows in the bonus space make it a bright place for a future office.
Floor Plans

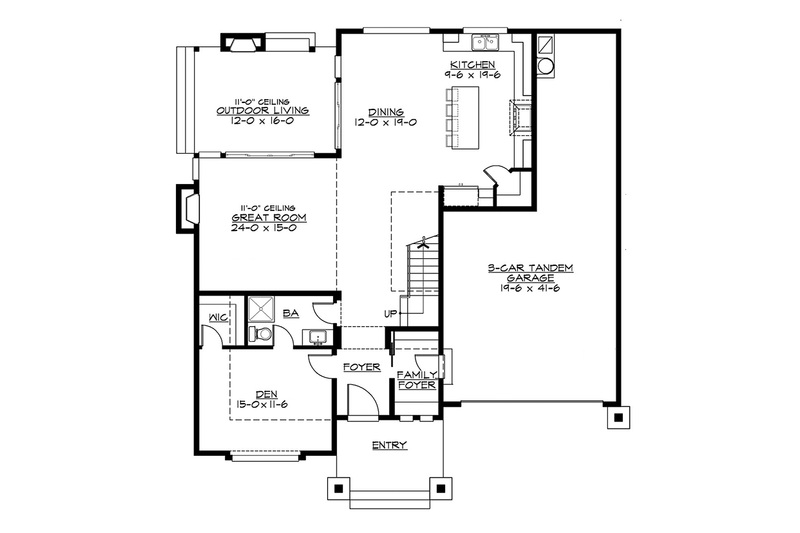

Floor Plan - Main Floor

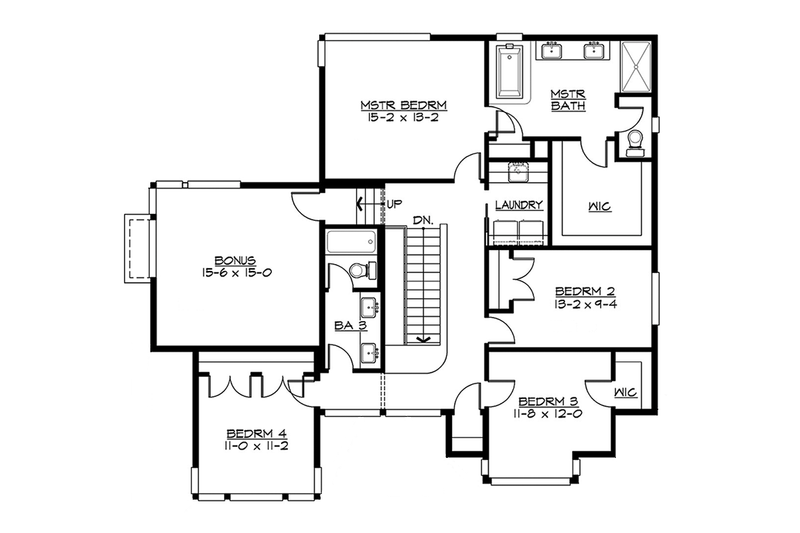

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 53' 6"
Height : 24' 6"
Width : 48'
Area
First Floor: 1272 sq/ft height 9'
Garage: 650 sq/ft
Second Floor: 1603 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Mud Room
Open Floor Plan
Upstairs Laundry
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Tandem Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Fireplace
Rooms
Bedroom 2:
123 sq/ft width 13' 2" x depth 9' 4"
Bedroom 3:
140 sq/ft width 11' 8" x depth 12'
Bedroom 4:
123 sq/ft width 11' x depth 11' 2"
Bonus Room:
233 sq/ft width 15' 6" x depth 15'
Den:
173 sq/ft width 15' x depth 11' 6"
Dining Area:
228 sq/ft width 12' x depth 19'
Garage:
650 sq/ft width 19' 6" x depth 41' 6"
Great Room:
360 sq/ft width 24' x depth 15'
Kitchen:
185 sq/ft width 9' 6" x depth 19' 6"
Master Bedroom:
200 sq/ft width 15' 2" x depth 13' 2"
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license.
If you are building this plan in the state of Washington, please call us before placing your order.
» See important
information before purchasing.
If you are building this plan in the state of Washington, please call us before placing your order.
-
This designer includes the bonus square feet in the total heated living square feet.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
