PLAN 70-1203

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$40.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$1060.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 70-1203

Key Specs


2866
sq ft

2
Beds

2.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

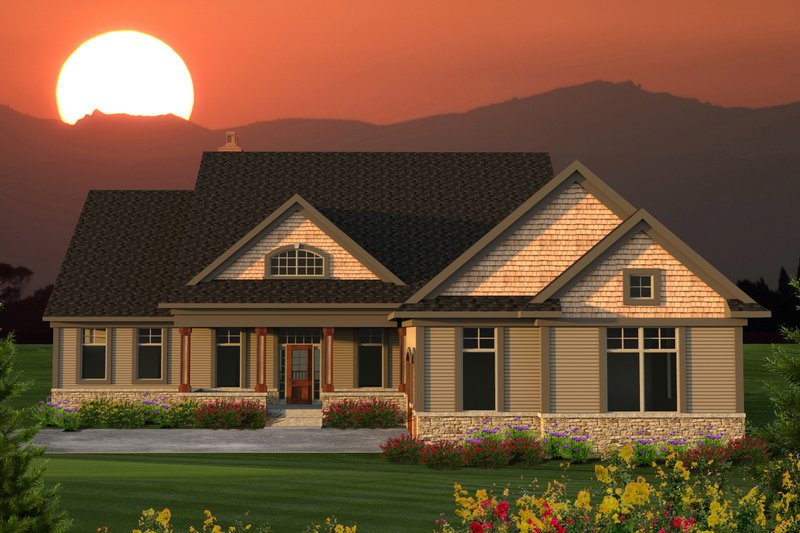

A spacious porch flanked by columns creates an extra living space on this craftsman charmer. • The 11’ entry leads you into the open concept floor plan. • The great room features a cathedral ceiling, a fireplace with built-ins and access to the covered porch off the back. • A center island overlooks the great room and adjacent dining room for easy conversation. • An octagonal screen porch is accessed off the dining room and creates another living area off the back of the home. • The second bedroom lies in front of the screen porch to the right of the home. • The master suite is on the opposite side of the home and includes a cathedral ceiling, spacious walk-in closet and dual sinks. • The three-stall, side-load garage includes extra storage.

Floor Plans

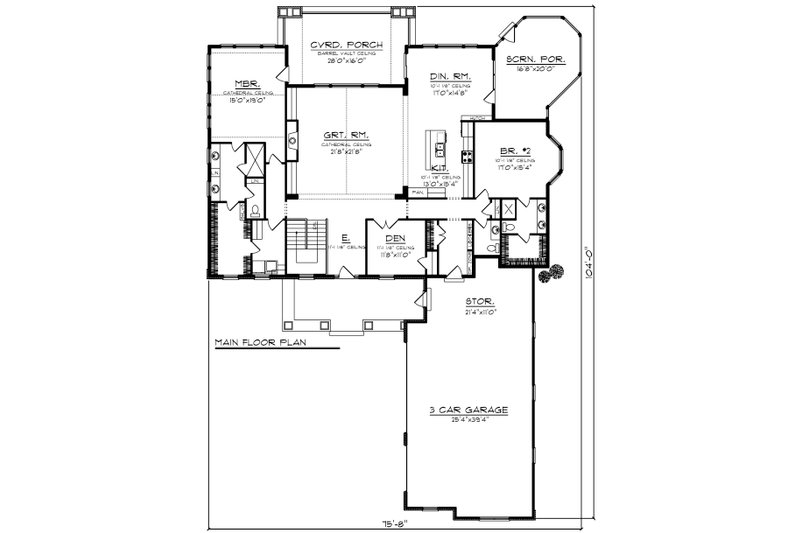

Floor Plan - Main Floor Plan
Reverse
Save Ranch Floor Plan - Main Floor Plan Plan #70-1203

Full Specs & Features


Dimension
Depth : 104'
Height : 31' 6"
Width : 75' 8"
Area
First Floor: 2866 sq/ft
Garage: 1252 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Entry, Den 11', Grt Rm/Master Bdrm Cathedral, Rear Porch Barrel Vault
Lower Ceiling : 9'
Main Ceiling : 10'
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : Asphalt
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : 2x6
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Sunroom
Unfinished Future Space
Garage Features
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch

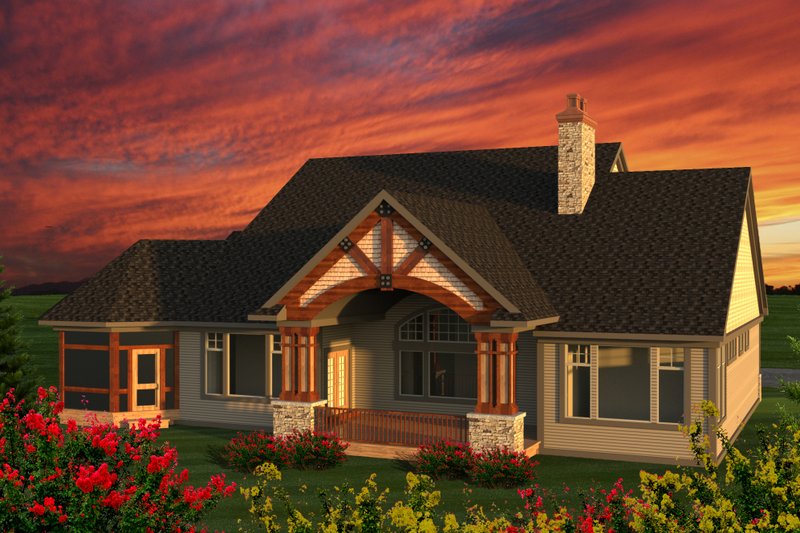

Covered Rear Porch
Screened Porch
Rooms

Bath 2:

63 sq/ft width 9' x depth 7'

Bedroom 2:

261 sq/ft width 17' x depth 15' 4"

Bedroom 2:

54 sq/ft width 9' x depth 6'

Covered Front Porch:

219 sq/ft width 26' 4" x depth 8' 4"

Covered Rear Porch:

448 sq/ft width 28' x depth 16'

Den:

128 sq/ft width 11' 8" x depth 11'

Dining Room:

249 sq/ft width 17' x depth 14' 8"

Foyer:

87 sq/ft width 7' 8" x depth 11' 4"

Garage:

1010 sq/ft width 25' 4" x depth 39' 4"

Garage Storage:

242 sq/ft width 21' 4" x depth 11'

Great Room:

469 sq/ft width 21' 8" x depth 21' 8"

Half Bath:

37 sq/ft width 5' 4" x depth 7'

Hall 1:

44 sq/ft width 4' x depth 11'

Hall 2:

67 sq/ft width 16' 8" x depth 4'

Hall Closet:

12 sq/ft width 2' x depth 6'

Kitchen:

199 sq/ft width 13' x depth 15' 4"

Laundry Room:

73 sq/ft width 6' 8" x depth 11'

Linen Closet:

7 sq/ft width 1' 8" x depth 4'

Master Closet:

117 sq/ft width 8' x depth 14' 8"

Master Bath:

160 sq/ft width 10' 8" x depth 15'

Master Bedroom:

285 sq/ft width 15' x depth 19'

Mud Room:

62 sq/ft width 5' 8" x depth 11'

Screened Porch:

333 sq/ft width 16' 8" x depth 20'

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.

Plan Set

5 Copy Set :
$1060.00
5 printed plan sets mailed to you.
8 Copy Set :
$1100.00
8 printed plan sets mailed to you.
PDF Set :
$1325.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1325.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$2120.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$295.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$295.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse :
$295.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$40.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
