Full Specs & Features
Depth : 63' 2"
Height : 26' 2"
Width : 84'
Garage : 842 sq/ft
Main Floor : 2789 sq/ft
Porch : 422 sq/ft
Storage : 20 sq/ft
Main Ceiling : 9'
Primary Pitch : 8:12
Roof Framing : Stick
Roof Load : 40 psf
Roof Type : Gable
Exterior Wall Framing
Exterior Wall Finish : Stone / Siding
Framing : 2x6
Walk In Closet
Additional Room Features
Den Office Study Computer
Great Room Living Room
Side Entry Garage
Covered Front Porch
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

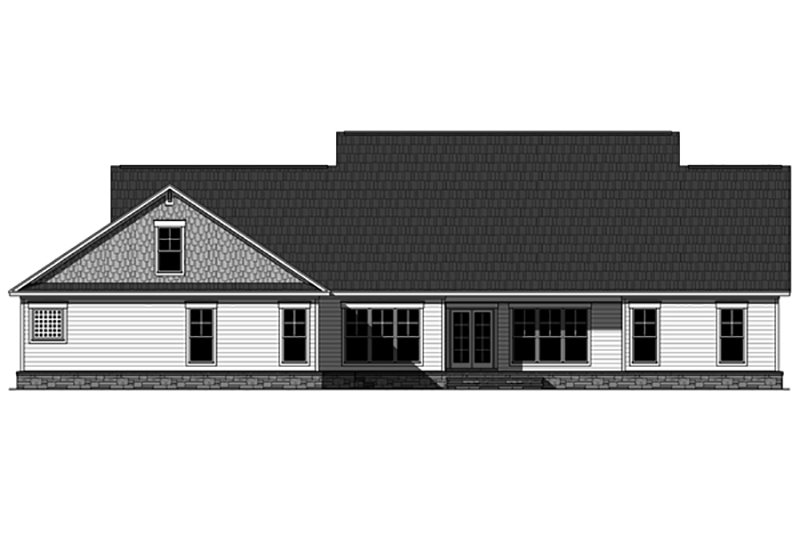

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
