PLAN 60-298

Home > Style > Craftsman

Key Specs

2778
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 2778 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

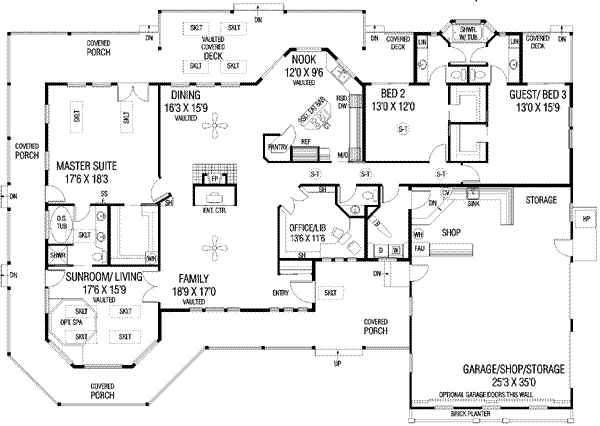

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 63' 6"

Height : 23'

Width : 84'

Area

First Floor: 2778 sq/ft height 8'

Garage: 933 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : 2"x6"

Bedroom Features

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Storage Area

Sunroom

Workshop

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Screened Porch

Wrap Around Porch

Jack & Jill Bath

Rooms

Bedroom 2:

156 sq/ft width 13' x depth 12'

Dining Room:

255 sq/ft width 16' 3" x depth 15' 9"

Family Room:

275 sq/ft width 17' 6" x depth 15' 9"

Garage:

933 sq/ft width 25' 3" x depth 35'

Guest Bedroom:

204 sq/ft width 13' x depth 15' 9"

Kitchen:

195 sq/ft width 16' 4" x depth 12'

Laundry Room:

80 sq/ft width 7' x depth 11' 6"

Master Bedroom:

284 sq/ft width 17' 6" x depth 16' 3"

Nook:

114 sq/ft width 12' x depth 9' 6"

Sun Room:

275 sq/ft width 17' 6" x depth 15' 9"

What's Included In This Plan Set

See a sample plan set

Exterior Elevations are scaled (1/4" and 1/8" = 1'-0") drawings of the front, rear, left, and right sides of the home.
Detailed Floor plans of the home accurately dimensioning the positioning of the walls, doors, windows, stairs, and permanent fixtures.
Foundation plan details the foot print of the home. Location and size of load points, stem walls, footings, pony walls, and floor joist.
Roof plans are typically truss planing, truss manufacturer will provide detail diagrams of truss's. In some cases the roof plans may be drawn as stick framed or have stick framing which will call out lumber sizes and spacing.
Cross Sections offer a cut away through the home showing your builder the correlation of building components.
Details indicate minimum CABO/IRC standards for construction of the home.
Electrical plan shows the schematic of the electrical layout. Most electricians want to discuss the options the home owner desires prior to bidding.
Mechanical and Detailed Plumbing plans are not included. These are site specific and are accomplished by those professionals.
All plans are prepared in compliance with the Uniform Building Code (ICBO) or the International Residential Code, a National Standard for residential construction at the time of completion.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set:
$850.00

5 printed plan sets mailed to you.

PDF Set:
$850.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1530.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$170.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$51.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$85.00

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
