Full Specs & Features
Depth : 42'
Height : 25' 10"
Width : 55' 4"
Basement Unfinished: 1400 sq/ft
First Floor: 1400 sq/ft
Garage: 463 sq/ft
Porch: 125 sq/ft
Second Floor: 1297 sq/ft
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 7:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Formal Dining Room
Upstairs Master Bedrooms
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Covered Front Porch
width 12' 4" x depth 11' 4"
width 11' x depth 11' 9"
width 17' x depth 11'
width 13' 3" x depth 9' 2"
width 11' 7" x depth 12' 4"
width 20' x depth 20' 11"
width 17' 3" x depth 17' 6"
width 11' 7" x depth 12' 4"
width 6' 11" x depth 9'
width 14' 6" x depth 15' 4"
width 10' 7" x depth 11' 4"
What's Included In This Plan Set

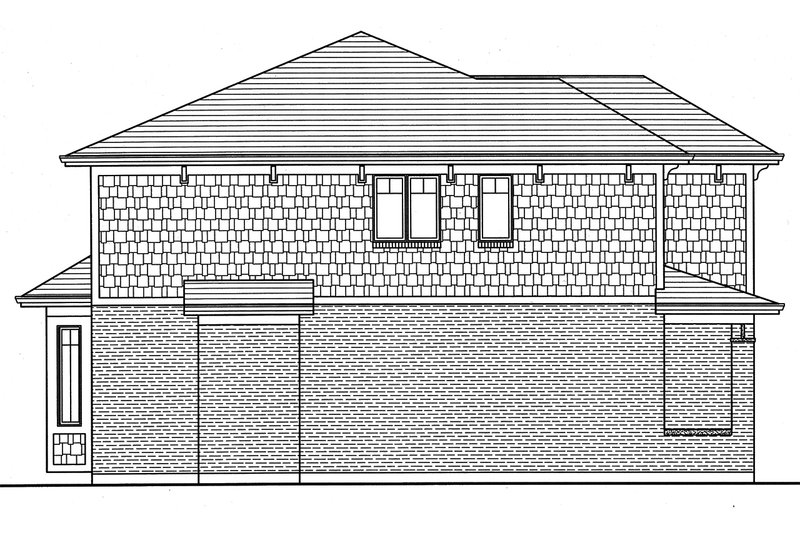

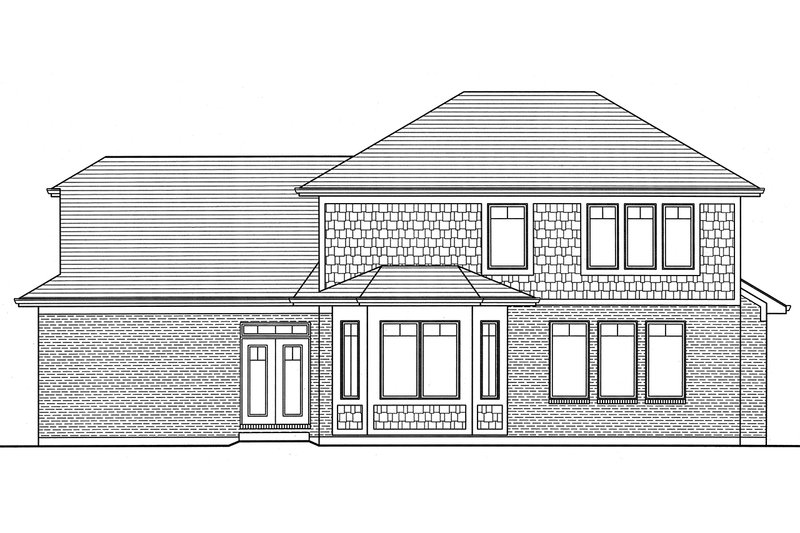

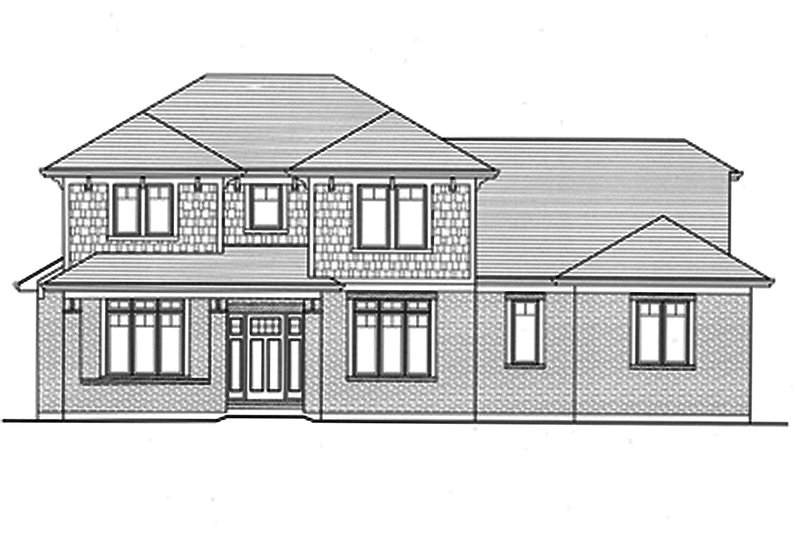

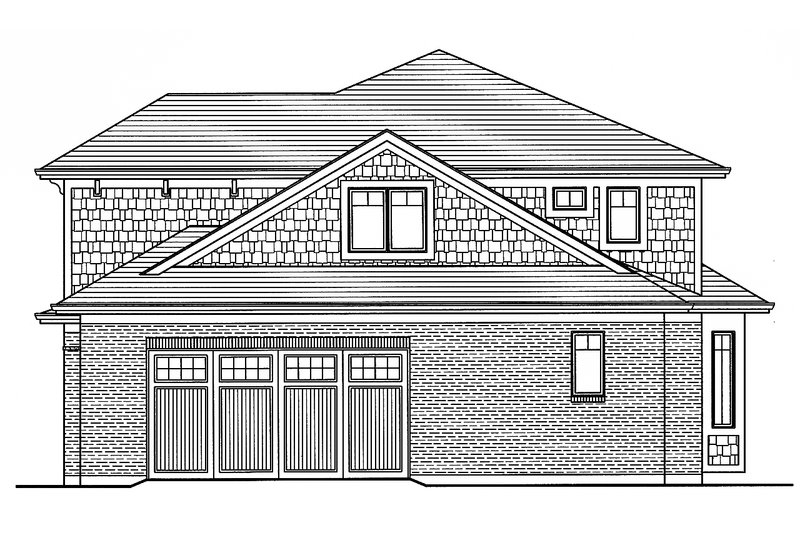

- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

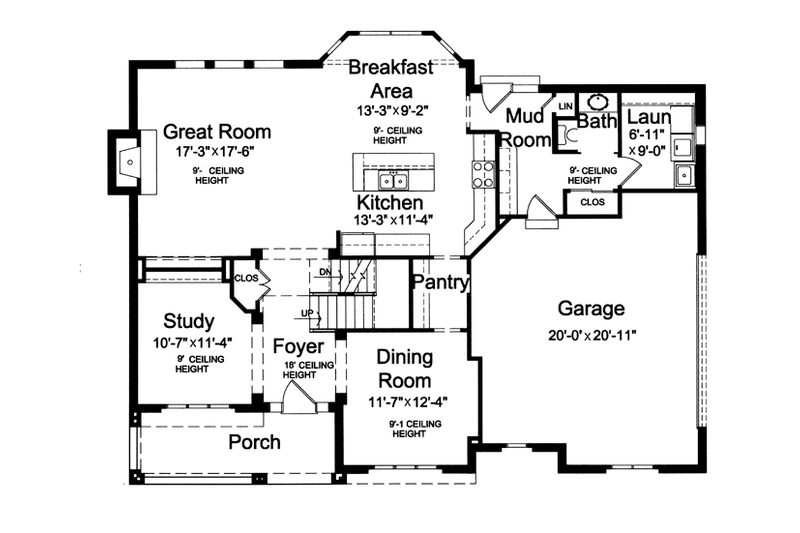

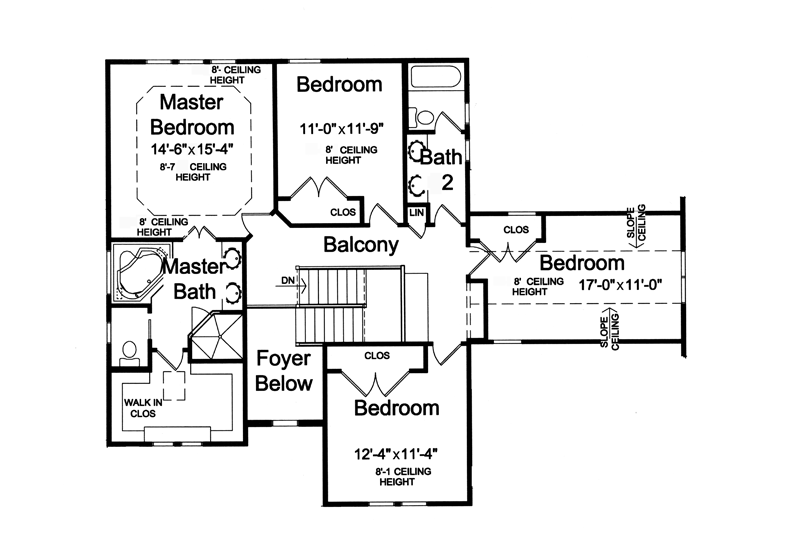

- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
