Full Specs & Features
Depth : 30'
Height : 28'
Width : 78'
Basement : 1217 sq/ft
Bonus : 555 sq/ft
Garage : 672 sq/ft
Main Floor : 1217 sq/ft
Upper Floor : 833 sq/ft
Ceiling Details : Upper floor ceiling vaults to 24'7".
Lower Ceiling : 9'
Main Ceiling : 8'
Primary Pitch : 10:12
Exterior Wall Framing
Framing : 2"x6"
Main Floor Master Bedroom
Walk In Closet
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Front Entry Garage
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

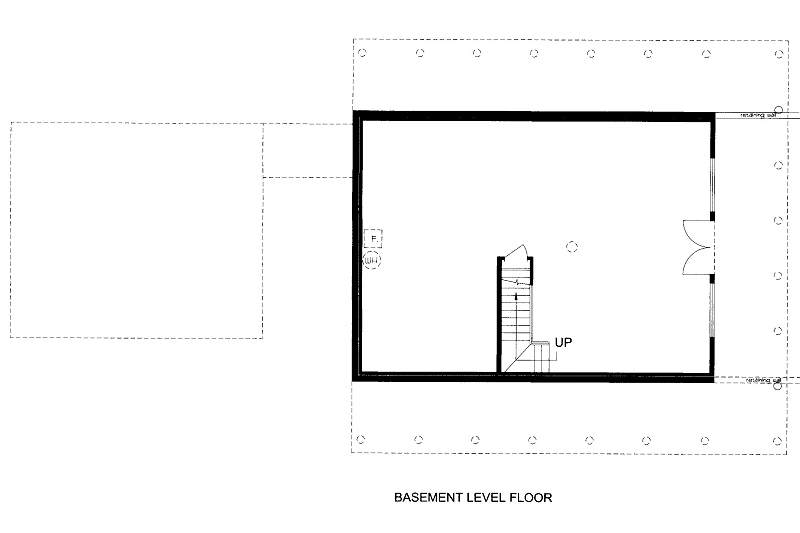

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

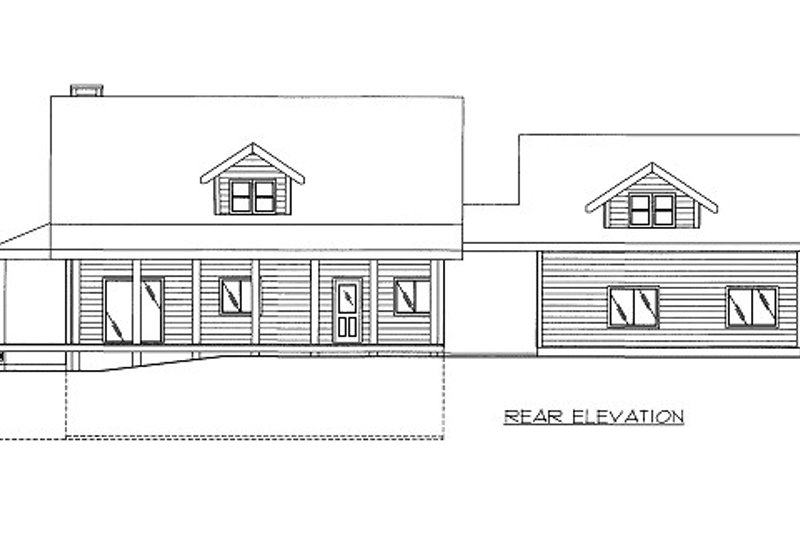

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

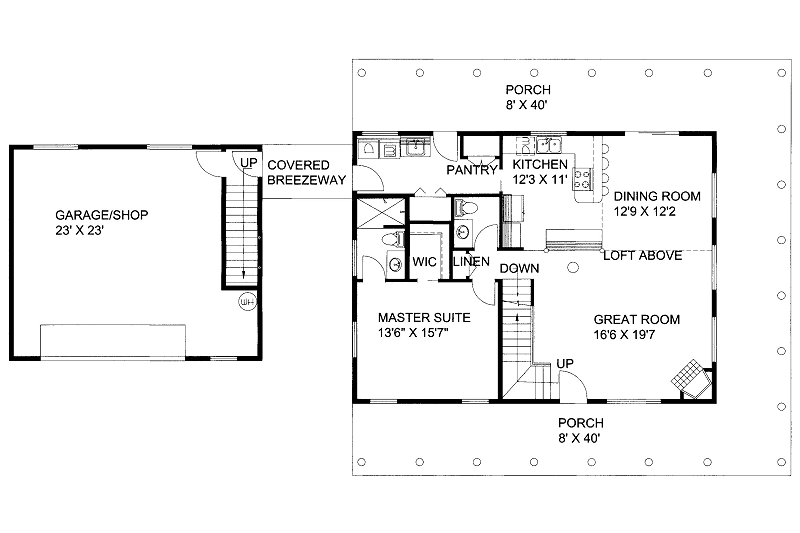

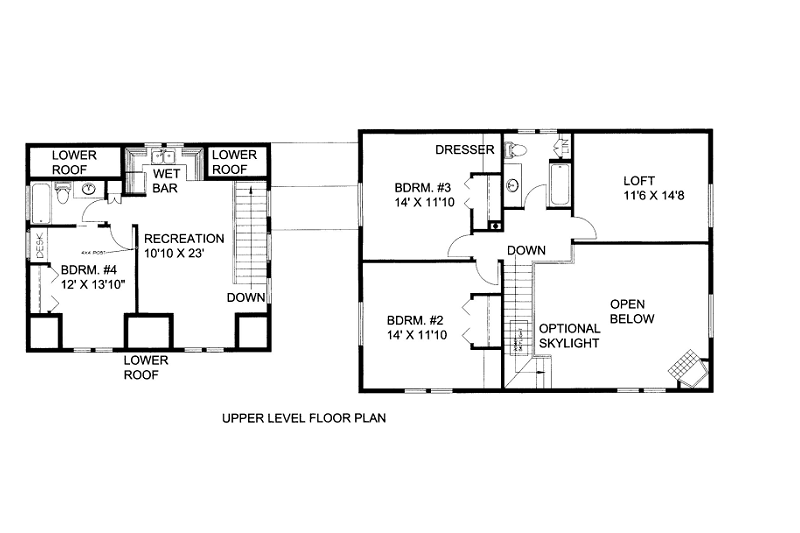

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
