Photographs may show modified designs.
PLAN 46-428
Key Specs
2544
sq ft
4
Beds
3.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $9.99 for a Limited Time! Use Code CTB2021
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-877-222-1762
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Phone: 1-877-222-1762
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 46-428
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description

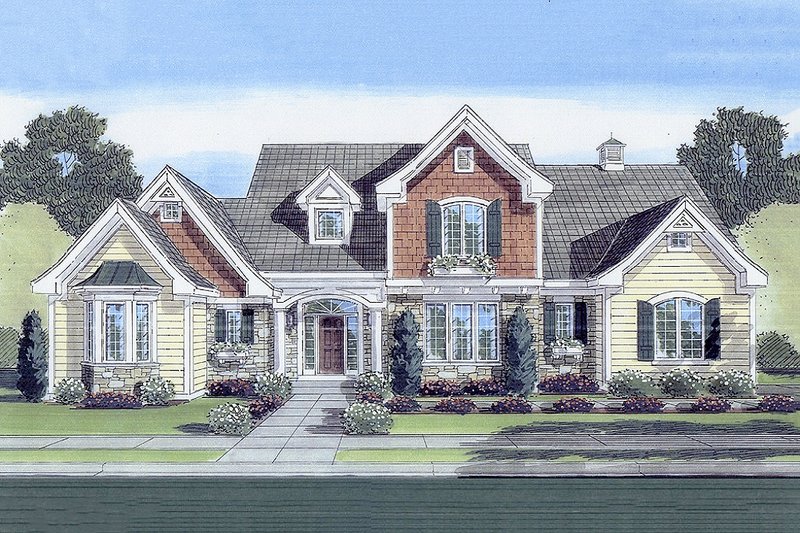

beautiful exterior, of siding and stone and a floor plan that includes a great room with 18' ceiling height, formal and informal dining, and a first floor master bedroom suite will delight the most discriminating buyer. The master suite enjoys a whirlpool tub, shower encloser and double bowl vanity. The beautiful staircase decorates the foyer where a grand view to the spacious great room and through to the rear yard is showcased. A butler's pantry offers additional storage to the dining room and the laundry room is conveniently located for entry from the garage and kitchen. A nine foot ceiling height is standard throughout the first floor. The graceful stairs lead to a second floor balcony that overlooks the great room and leads to 3 additional bedrooms. Each bedroom enjoys a walk-in closet and a private bath access.
Full Specs & Features
Dimension
Depth : 46'
Height : 28'
Width : 73'
Height : 28'
Width : 73'
Area

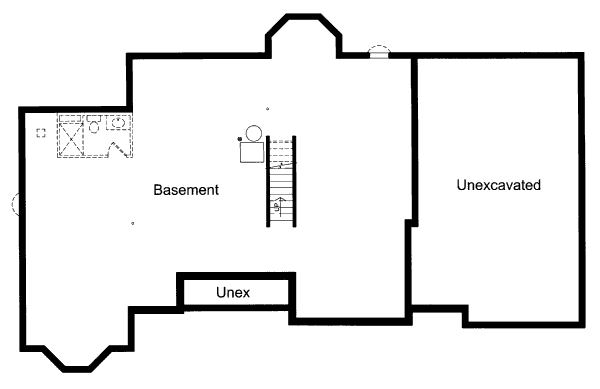

Basement Unfinished: 1667 sq/ft height 7' 10"

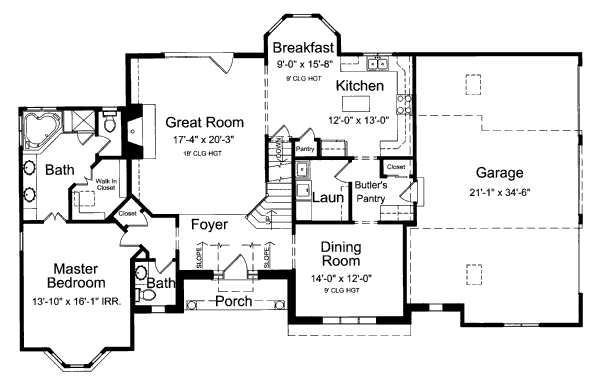

First Floor: 1667 sq/ft height 9'
Second Floor: 877 sq/ft height 8'
First Floor: 1667 sq/ft height 9'

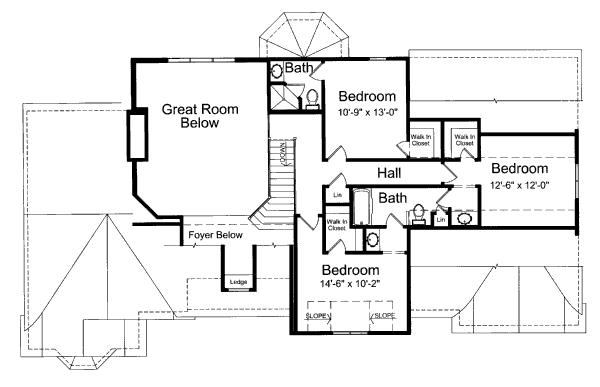

Second Floor: 877 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Butler's Pantry
Kitchen Island
Additional Room Features
Great Room Living Room
Loft
Storage Area
Unfinished Future Space
Loft
Storage Area
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Balcony
Covered Front Porch
Covered Front Porch
More
Jack & Jill Bath
Rooms
Bedroom 2:
147 sq/ft width 14' 6" x depth 10' 2"
Bedroom 3:
140 sq/ft width 10' 10" x depth 13'
Bedroom 4:
150 sq/ft width 12' 6" x depth 12'
Breakfast Nook:
141 sq/ft width 9' x depth 15' 8"
Dining Room:
168 sq/ft width 14' x depth 12'
Entry:
84 sq/ft width 14' x depth 6'
Great Room:
352 sq/ft width 17' 4" x depth 20' 4"
Kitchen:
156 sq/ft width 12' x depth 13'
Master Bathroom:
130 sq/ft width 13' x depth 10'
Master Bedroom:
222 sq/ft width 13' 10" x depth 16' 1"
What's Included In This Plan Set
Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Questions? Call 1-877-222-1762
Plan Set
| PDF Set
: $995.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $995.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| 5 Copy and PDF Set
: $1050.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Eight Copy and PDF Set
: $1075.00 |
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $1650.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Additional Options
| Right-Reading Reverse
: $150.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Material List
: $85.00 |
A list of building supplies needed to construct the infrastructure of your new house. |
| Mirror Reversed Sets
: $25.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
