PLAN 938-141

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

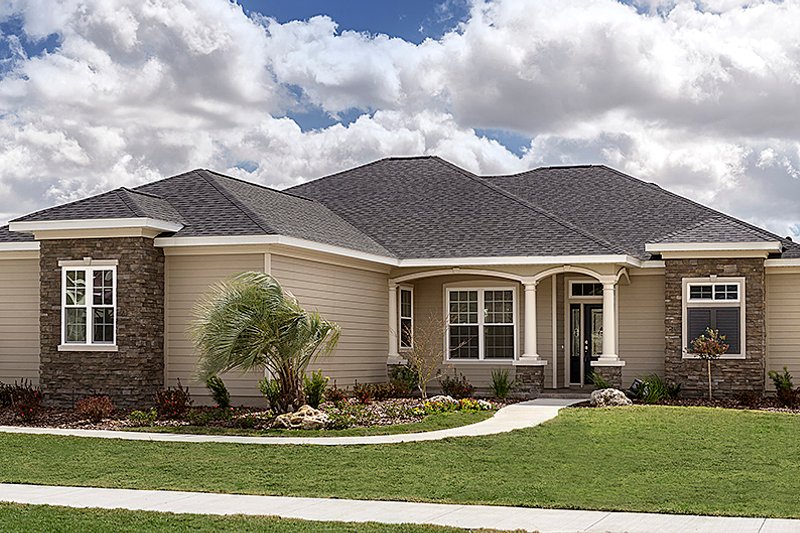

The Cavaillon House Plan features great curb appeal and interesting bay shaped rooms that promote long-range views and natural light. The large Great Room boasts an octagonal coffered ceiling feature. Interesting angles promotes livability and openness The Primary Suite is on a separate wing for ultimate private living. Double walk in closets, a bayed sitting area, and a luxurious full bath with separate vanities, give this home a custom feel. The split bedrooms allow for total owner privacy. One bedroom is designed to be flexible for use as a study or bonus room. A cabana bath becomes an outdoor mudroom bath for the rear yard. A well-appointed Kitchen with an breakfast bar, center prep-island, arches, columns, and walk-in pantry round out this great design.

Full Specs & Features


Dimension

Depth : 76' 4"

Height : 10'

Width : 62'

Area

Garage : 487 sq/ft

Main Floor : 2529 sq/ft

Patios : 333 sq/ft

Porch : 137 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : great room coffered, dining & master tray

Main Ceiling : 10'

Roof

Primary Pitch : 7/12

Roof Framing : Truss

Roof Type : Hip

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2x6

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Suited For Sloping Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

More

Economical To Build

Empty Nester

Suited For Vacation Home

Energy Efficient Features

Energy Efficient Design

What's Included In This Plan Set


  • Cover Sheet

    The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.

  • Wall Sections

    The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

  • Foundation Plan

    The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

  • Second floor framing (where appropriate)

    The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

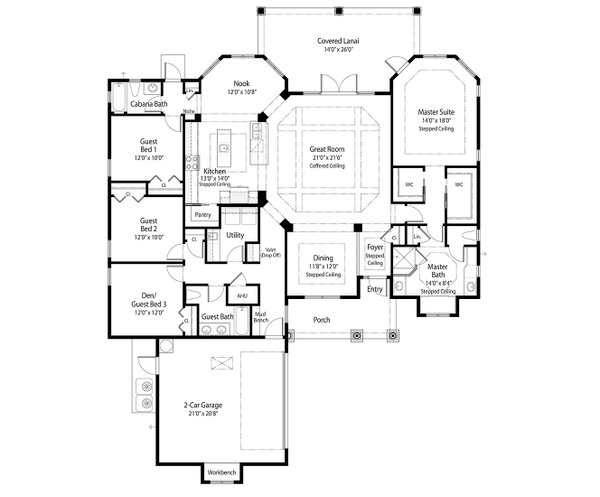

  • Floor Plans

    The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

  • Roof Plan & Soffit (Chase Layout) Plan

    The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

  • Reflected Ceiling Plan

    The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

  • Exterior Elevations

    The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.

  • Cross Section & Interior Elevations

    The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design.

  • Electrical Plan

    The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
