PLAN 455-586
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

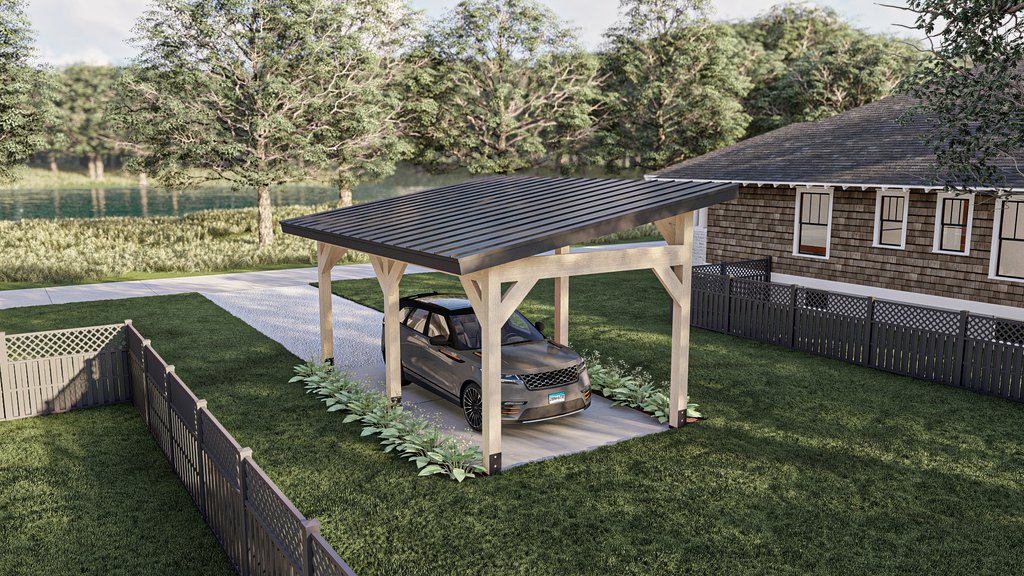

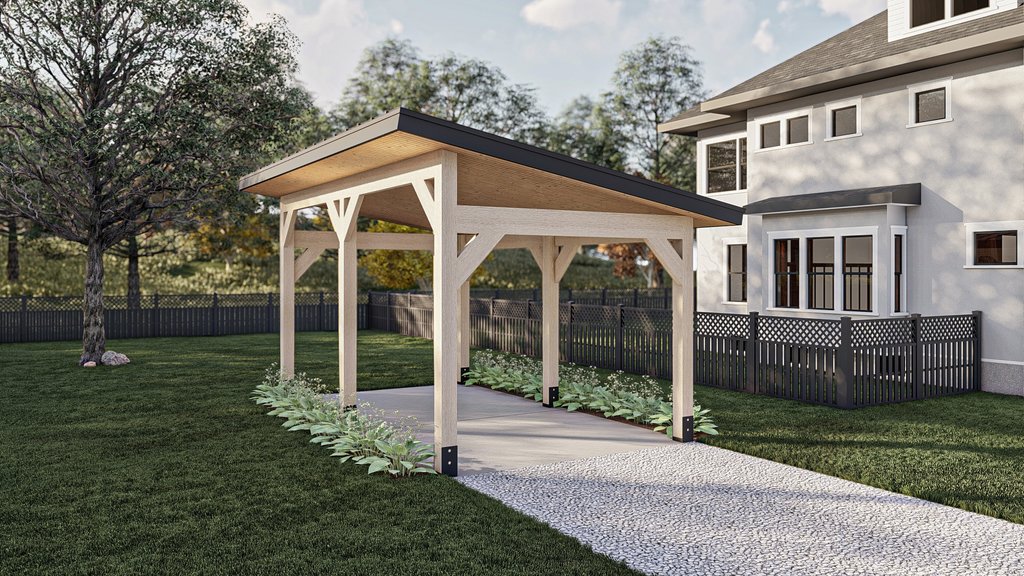

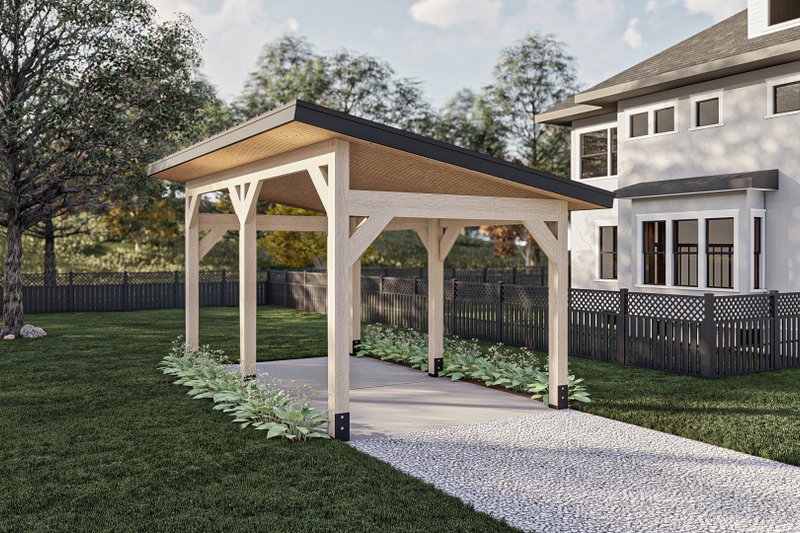

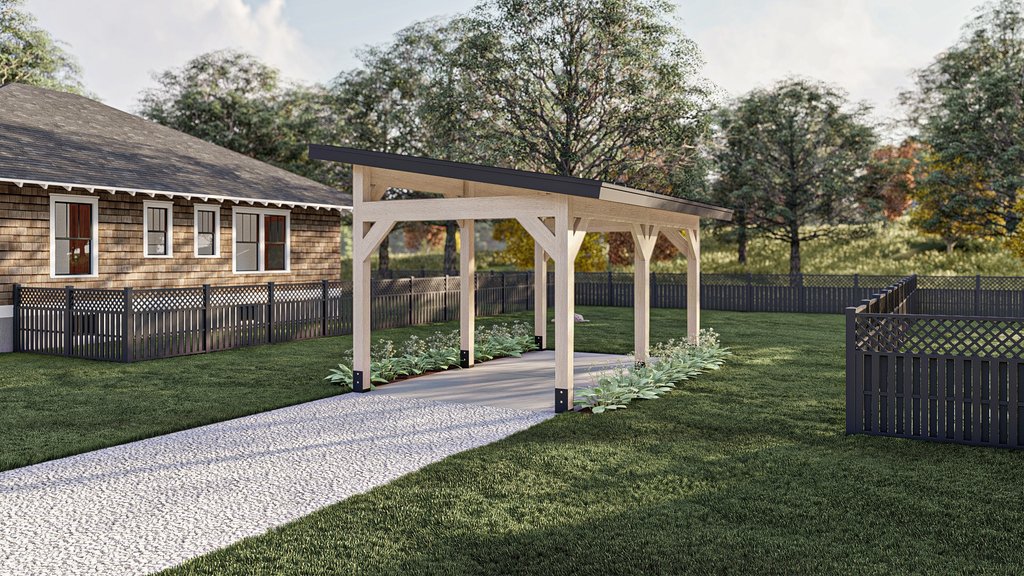

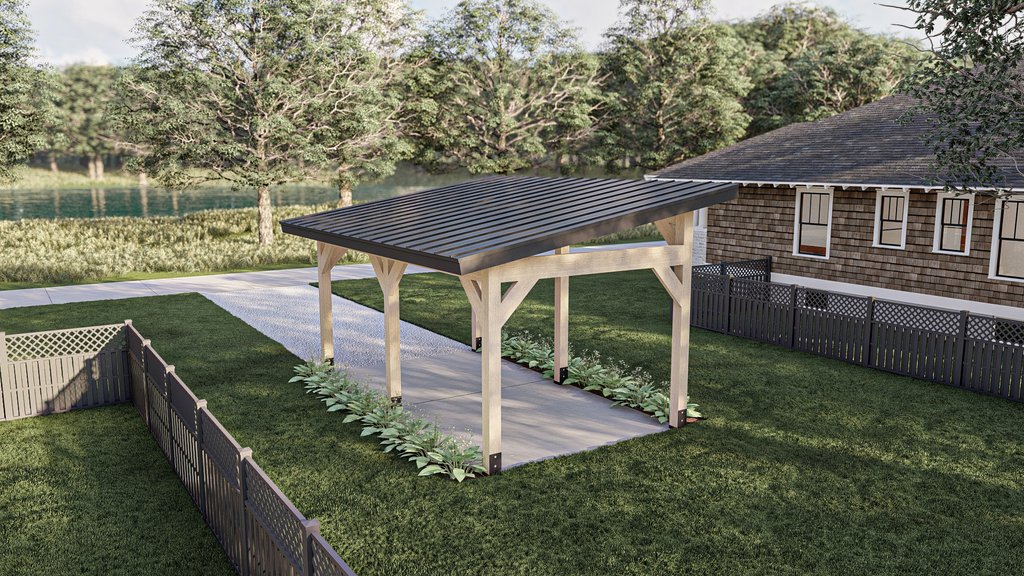

Welcome to our sleek and functional single-car carport, designed to provide reliable protection for your vehicle while seamlessly integrating with your outdoor space. Crafted with a keen eye for both aesthetic appeal and practicality, this carport boasts a minimalist yet robust structure that offers shelter from the elements. The carport's primary feature is its single-slope metal roof, which lends a contemporary touch to your property's exterior. The roof's gentle incline ensures efficient drainage of rainwater while maintaining an unobtrusive profile. Supported by a system of sturdy posts and beams, the carport strikes the perfect balance between strength and elegance. Each post is strategically positioned to anchor the structure securely to the ground, while the horizontal beams elegantly connect the posts, forming a framework that exudes both modernity and stability. A defining characteristic of this carport design is its openness on all four sides. This clever configuration allows for unobstructed entry and exit, as well as a constant flow of fresh air, which is especially beneficial for preventing moisture accumulation and maintaining the longevity of your vehicle's exterior. Whether you're seeking a dedicated shelter for your daily commuter or a safe haven for your prized possession, this single-car carport with a single-slope roof offers a visually appealing and structurally sound solution. Its harmonious blend of form and function ensures that your vehicle remains shielded from the elements while becoming an integral part of your outdoor space's design aesthetic.
Floor Plans

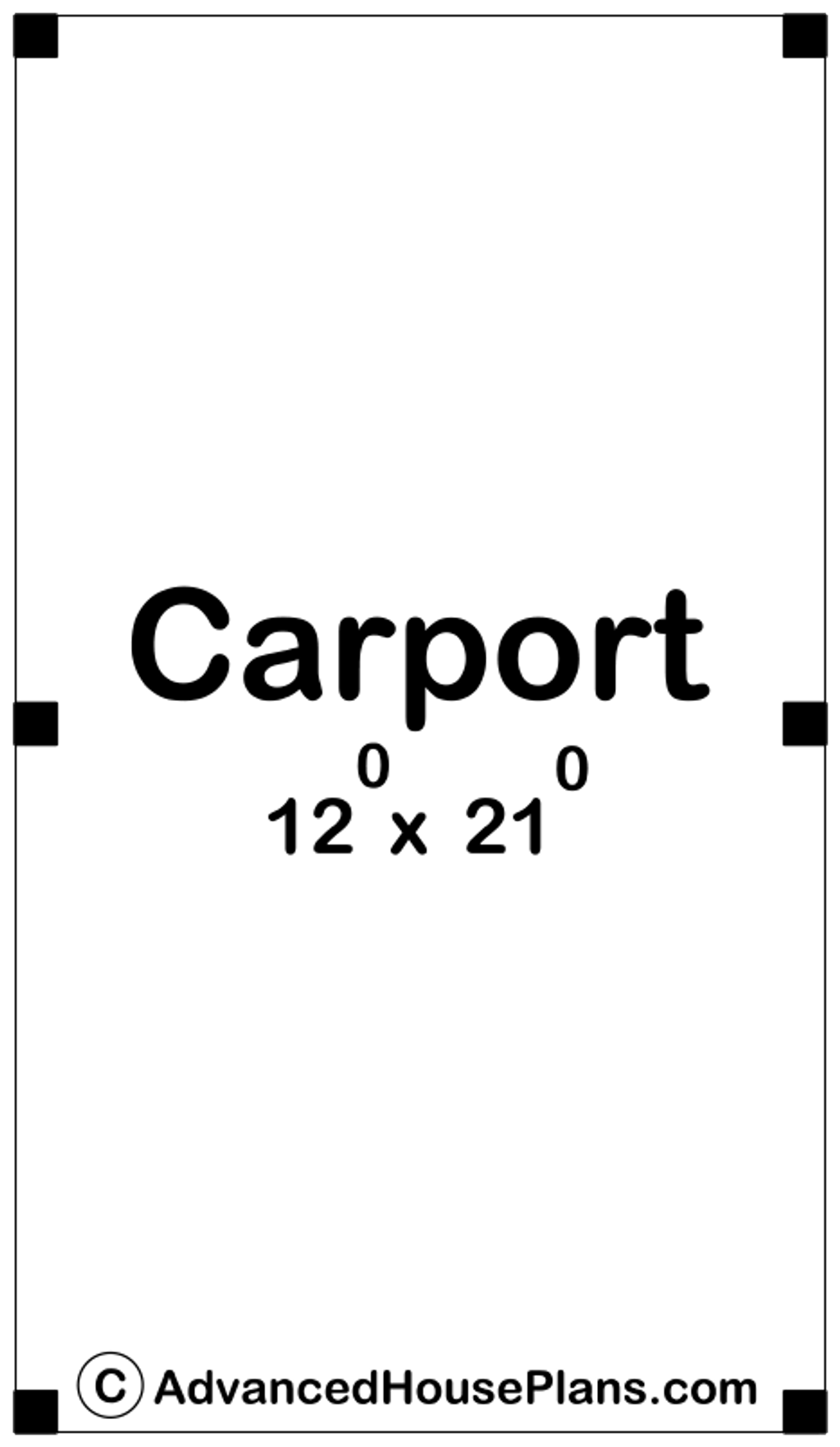

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 21'
Height : 12' 9"
Width : 12'
Area
Garage : 252 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 2/12
Roof Framing : Stick
Exterior Wall Framing
Framing : Post Frame
Garage Features
Carport Porte Cochere
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-877-222-1762
Plan Set
PDF Set:
$499.00
$499.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$794.00
$794.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$798.00
$798.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$1498.00
$1498.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Pier:
$0.00
$0.00
Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.
Framing
Post and Beam:
$0.00
$0.00
Post and Beam Exterior Construction
Wood 2x6:
$299.00
$299.00
Wood 2x6 Exterior Walls
Additional Options
Right-Reading Reverse:
$299.00
$299.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.00
$59.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Material List:
$299.00
$299.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
