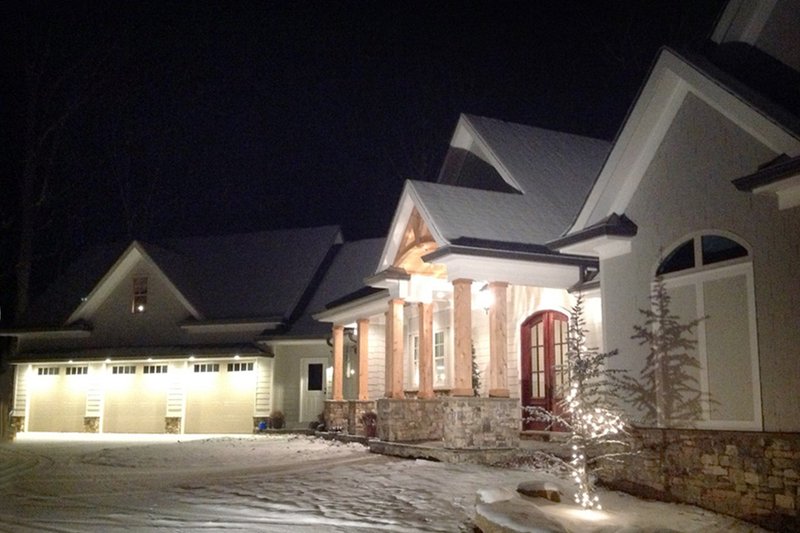

Craftsman Exterior - Rear Elevation Plan #119-367

Craftsman Exterior - Outdoor Living Plan #119-367

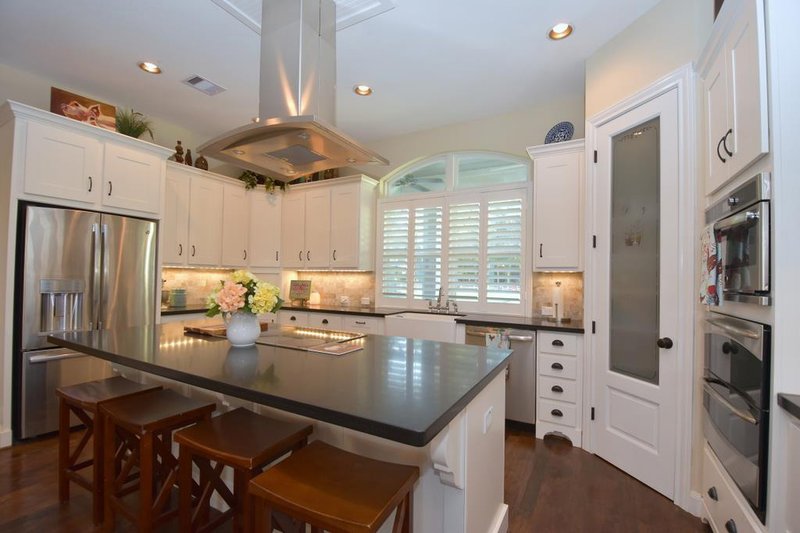

Craftsman Interior - Kitchen Plan #119-367

Craftsman Interior - Family Room Plan #119-367

Craftsman Interior - Dining Room Plan #119-367

Craftsman Interior - Master Bedroom Plan #119-367

Craftsman Interior - Master Bathroom Plan #119-367

Craftsman Interior - Other Plan #119-367

Select Plan Set Options

What's included?

	Right-Reading Reverse $225.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $148.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1795.50

You save $199.50

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 119-367

Key Specs

2499
sq ft

3
Beds

3.5
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This craftsman ranch house plan is intertwined with the softness of a country home. Upon arrival you are struck by its amazing curb appeal. There are large and swooping roofs, adorned with elegant gables & shutters. Stone, siding and cedar shakes blend beautifully together to create a unique look for this rustic Home plan. The wide open floor plan of this house is a homebuyer's answer when looking for an affordable home with plenty of room.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

Craftsman Floor Plan - Main Floor Plan Plan #119-367

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

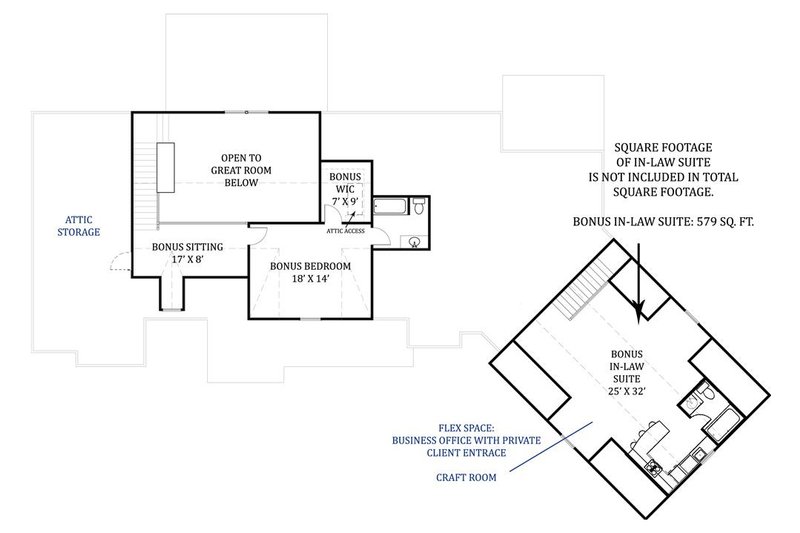

Floor Plan - Upper Floor Plan

Reverse

Craftsman Floor Plan - Upper Floor Plan Plan #119-367

Floor Plan - Lower Floor Plan

Reverse

Craftsman Floor Plan - Lower Floor Plan Plan #119-367

Full Specs & Features

Dimension

Depth : 72'
Height : 29'
Width : 106'

Area

Bonus: 1076 sq/ft
First Floor: 2498 sq/ft height 10'
Garage: 829 sq/ft height 10'

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 9'
Lower Ceiling : 9'
Main Ceiling : 10'

Roof

Primary Pitch : 12:12
Roof Framing : Stick
Roof Type : Gable
Secondary Pitch : 14:12

Exterior Wall Framing

Exterior Wall Finish : Stone / siding
Framing : Wood - 2x4

Bedroom Features

Guest Suite
Split Bedrooms
Walk In Closet

Kitchen Features

Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room
Main Floor Laundry
Play Flex Room

Garage Features

Side Entry Garage

Lot Characteristics

Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck

Rooms

Bathroom 2:

width 8' x depth 5'

Bathroom 3:

width 10' x depth 9'

Bedroom 2:

width 13' x depth 11'

Bedroom 2 Closet:

width 2' x depth 7'

Bedroom 3:

width 12' x depth 14'

Bedroom 3 Closet:

width 4' x depth 6'

Bonus:

579 sq/ft width 25' x depth 32'

Bonus:

497 sq/ft

Dining:

width 12' x depth 16'

Foyer:

width 7' x depth 10'

Garage:

829 sq/ft width 32' x depth 25'

Great Room:

width 21' x depth 16'

Grilling Porch:

width 25' x depth 14'

Half Bath:

width 5' x depth 10'

Kitchen:

width 19' x depth 10'

Laundry:

width 7' x depth 14'

Master Bath:

width 22' x depth 17'

Master Bedroom:

width 14' x depth 20'

Master Walk In Closet:

width 6' x depth 9'

Master Walk In Closet:

width 5' x depth 7'

Patio:

width 20' x depth 14'

Patio:

width 14' x depth 10'

Porch Rear:

width 22' x depth 14'

What's Included In This Plan Set

See a sample plan set

Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
Second Floor Lighting: The same details as provided for the first floor.
Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
