Key Specs
2472
sq ft
4
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

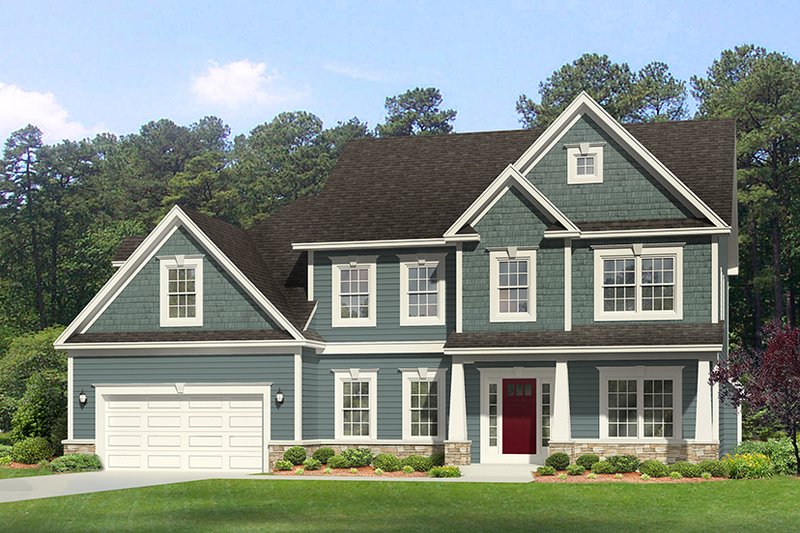

PLAN 1010-129
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

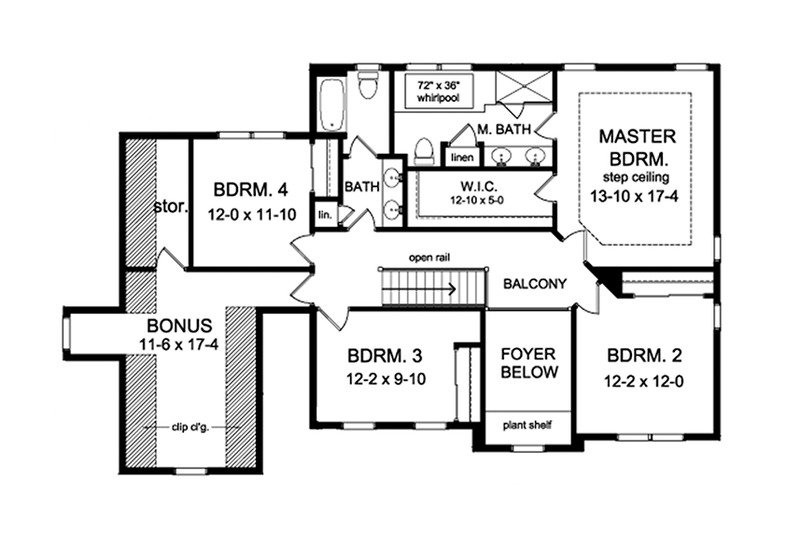

Floor Plans
Full Specs & Features
Dimension
Depth : 44' 6"
Height : 33' 6"
Width : 57' 8"
Area
Basement Unfinished: 1257 sq/ft
Bonus: 260 sq/ft
First Floor: 1257 sq/ft height 9'
Garage: 660 sq/ft
Second Floor: 1215 sq/ft height 8'
Storage: 72 sq/ft
Roof
Primary Pitch : 9:12
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Balcony
Covered Front Porch
Rooms
Attic Storage:
72 sq/ft
Bedroom 2:
146 sq/ft width 12' 2" x depth 12'
Bedroom 3:
120 sq/ft width 12' 2" x depth 9' 10"
Bedroom 4:
142 sq/ft width 12' x depth 11' 10"
Bonus:
260 sq/ft width 11' 6" x depth 17' 4"
Covered Front Porch:
110 sq/ft width 22' x depth 5'
Family Dining:
222 sq/ft width 16' 8" x depth 13' 4"
Garage:
660 sq/ft width 22' x depth 30'
Great Room:
324 sq/ft width 18' 8" x depth 17' 4"
Kitchen:
188 sq/ft width 16' 4" x depth 11' 6"
Laundry room:
45 sq/ft width 7' x depth 6' 6"
Master Bedroom:
241 sq/ft width 13' 10" x depth 17' 4"
Master WIC:
64 sq/ft width 12' 10" x depth 5'
Study:
150 sq/ft width 12' 2" x depth 12' 4"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

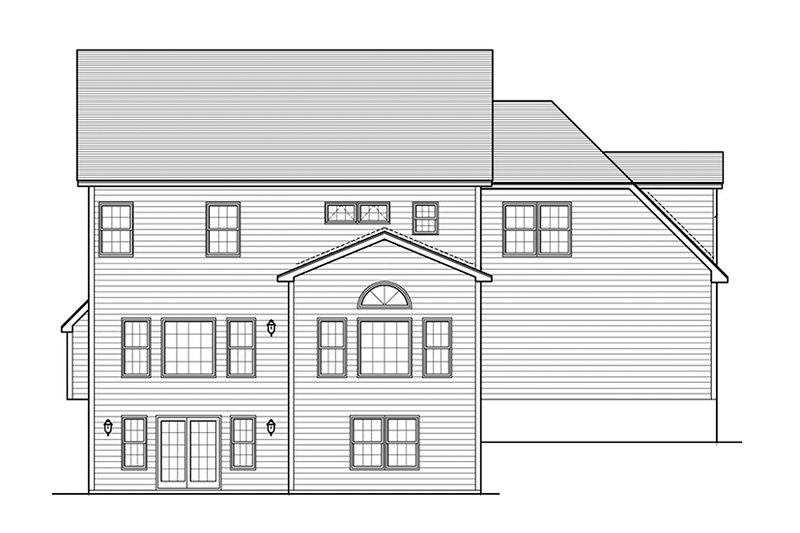

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
Plan Set
$1550.00
$1600.00
$3100.00
$900.00
$900.00
Foundation
$0.00
Framing
$0.00
Additional Options
$75.00
$165.00
$295.00
$39.00
$165.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
