PLAN 70-1200

Photographs may show modified designs.

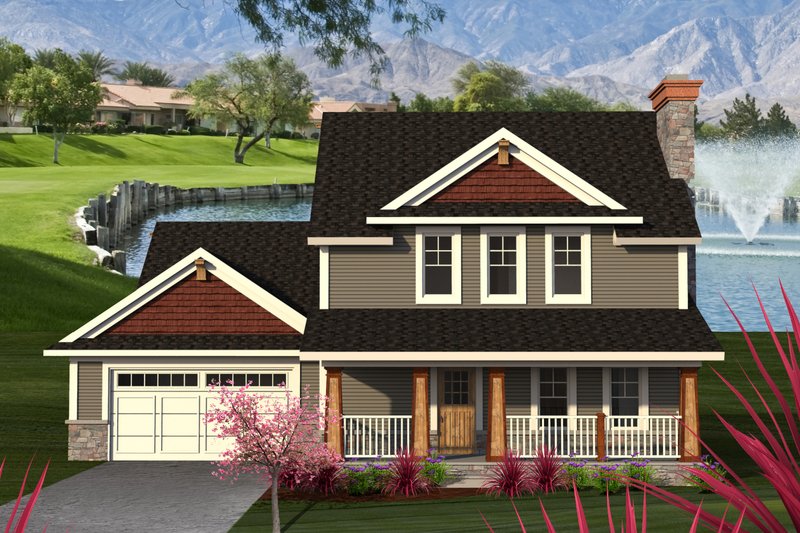

Architectural House Design - Traditional Exterior - Front Elevation Plan #70-1200

Architectural House Design - Traditional Exterior - Rear Elevation Plan #70-1200

Architectural House Design - Traditional Floor Plan - Main Floor Plan #70-1200

Architectural House Design - Traditional Floor Plan - Upper Floor Plan #70-1200

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Traditional House Plans

Key Specs

2447
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$80.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List

$295.00

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$75.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$1075.00

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 70-1200

Home > Style > Traditional House Plans

Key Specs

2447
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

A large front porch flanked by wooden columns creates an extra living space on this two-story design. • The entry features a two-story ceiling. • The open concept floor plan includes a kitchen with unique island that overlooks the dining and great rooms. • 9’ ceilings are found throughout the rest of the main floor. • The master is located on the main floor to the back of the home with close access to the laundry. • A covered porch off the back is accessed by the dining room or the door just off the master • Three additional bedrooms and a full bath are located on the second level. • The garage with extra storage makes this a family-friendly home.

Floor Plans

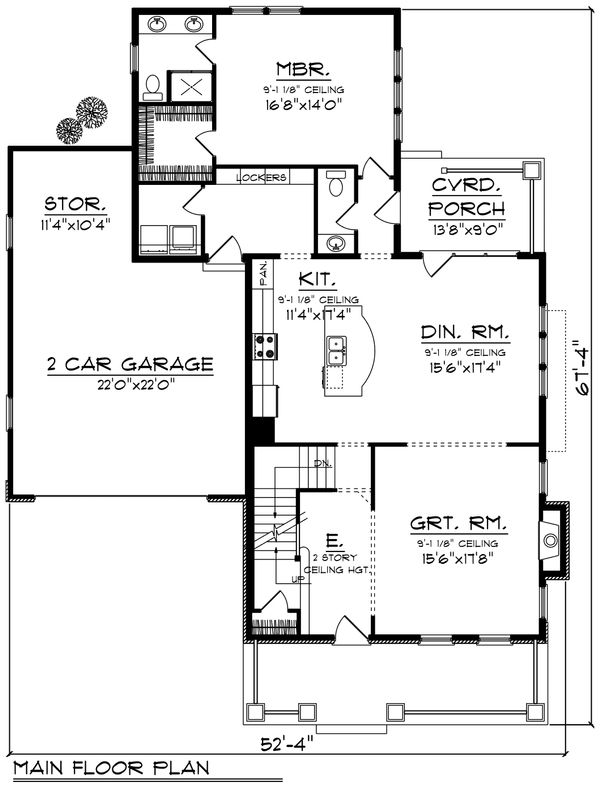

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

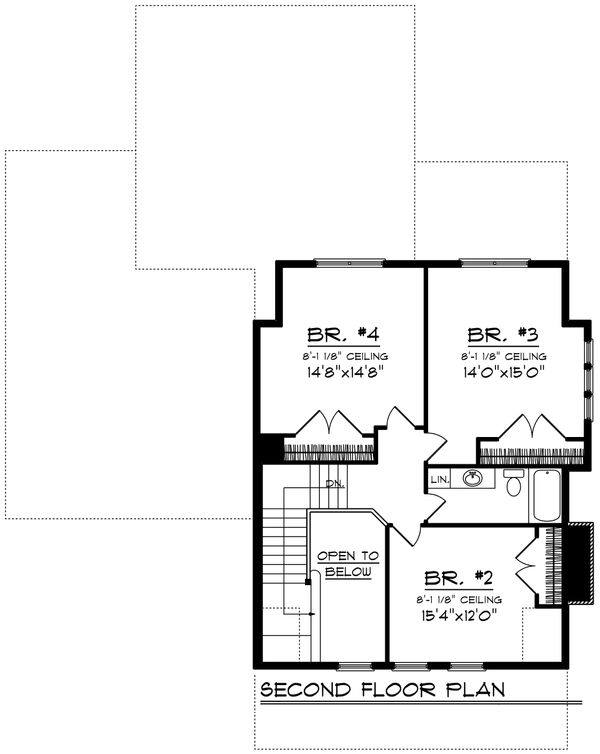

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 67' 4"

Height : 28'

Width : 52' 4"

Area

First Floor: 1612 sq/ft height 9'

Garage: 623 sq/ft

Second Floor: 835 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Entry 2-Story.

Lower Ceiling : 8'

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Load : 47 psf

Roof Type : Asphalt

Secondary Pitch : 8:12

Exterior Wall Framing

Exterior Wall Finish : Shingle/Siding

Framing : 2x6

Bedroom Features

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Unfinished Future Space

Garage Features

Front Entry Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bath 2:

60 sq/ft width 12' x depth 5'

Bedroom 2:

184 sq/ft width 15' 4" x depth 12'

Bedroom 2 Closet:

14 sq/ft width 2' x depth 7'

Bedroom 3:

210 sq/ft width 14' x depth 15'

Bedroom 3:

18 sq/ft width 9' x depth 2'

Bedroom 4:

215 sq/ft width 14' 8" x depth 14' 8"

Bedroom 4 Closet:

16 sq/ft width 8' x depth 2'

Covered Front Porch:

220 sq/ft width 28' 8" x depth 7' 8"

Covered Rear Porch:

123 sq/ft width 13' 8" x depth 9'

Dining Room:

269 sq/ft width 15' 6" x depth 17' 4"

Foyer:

76 sq/ft width 5' 8" x depth 13' 4"

Garage:

499 sq/ft width 22' x depth 22'

Garage Storage:

124 sq/ft width 11' 4" x depth 10' 4"

Great Room:

274 sq/ft width 15' 6" x depth 17' 8"

Half Bath:

28 sq/ft width 3' 6" x depth 8'

Hall Closet:

9 sq/ft width 4' 4" x depth 2'

Kitchen:

196 sq/ft width 11' 4" x depth 17' 4"

Laundry Room:

40 sq/ft width 6' x depth 6' 8"

Master Closet:

49 sq/ft width 7' x depth 7'

Master Bath:

58 sq/ft width 7' x depth 8' 4"

Master Bedroom:

233 sq/ft width 16' 8" x depth 14'

Mud Room:

83 sq/ft width 10' 4" x depth 8'

What's Included In This Plan Set

See a sample plan set

Cover sheet with front rendering
Foundation and floor plans at 1/4" = 1' scale
Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
Building sections and details as required to construct the individual design
Interior elevation of cabinets at 1/4" = 1' scale
Roof plans
Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set:
$1075.00

5 printed plan sets mailed to you.

8 Copy Set:
$1124.00

8 printed plan sets mailed to you.

PDF Set:
$1348.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1348.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$2143.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$395.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$395.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$395.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$80.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$295.00

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$75.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
