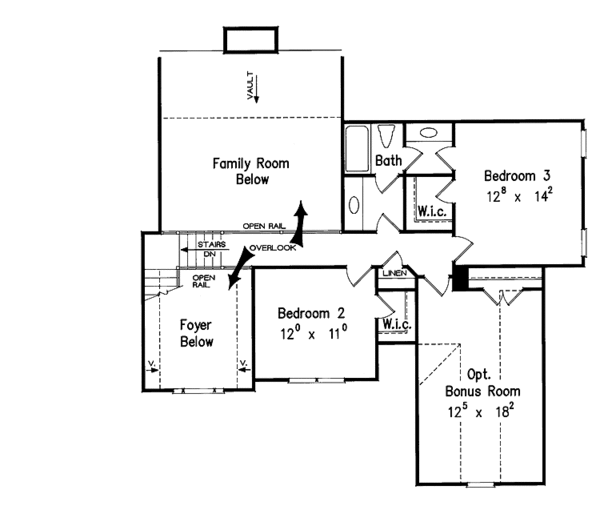

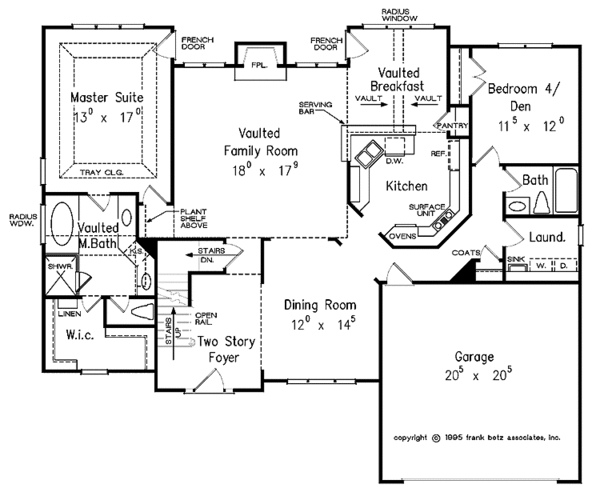

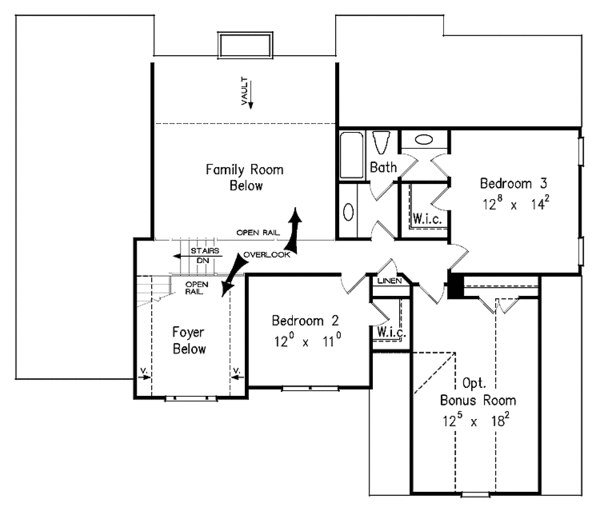

Decorative arches and quoins give this home a wonderful curb appeal that matches its comfortable interior. The two-story foyer is bathed in natural light as it leads to the formal dining room and beyond to the counter-filled kitchen and the vaulted breakfast nook. A den, or possible fourth bedroom, is tucked away at the rear for privacy and includes a full bath. Located downstairs is a spacious master suite with a luxurious private bath. Two family bedrooms and a full bath are located on the second floor, as well as a balcony that looks down to the family room and the foyer. An optional bonus room is available for expanding at a later date. Please specify basement or crawlspace foundation when ordering.
131 sq/ft width 12' x depth 10' 11"
179 sq/ft width 12' 8" x depth 14' 2"
132 sq/ft width 11' 1" x depth 12'
Bonus Room - Finished:
236 sq/ft width 12' 5" x depth 19' 1"
108 sq/ft width 10' 1" x depth 10' 9"
Den/Office or Bedroom 1:
132 sq/ft width 11' 1" x depth 12'
173 sq/ft width 12' x depth 14' 5"
128 sq/ft width 10' 9" x depth 11' 11"
416 sq/ft width 20' 5" x depth 20' 5"
319 sq/ft width 18' x depth 17' 9"
144 sq/ft width 12' 4" x depth 11' 9"
47 sq/ft width 7' 7" x depth 6' 3"
118 sq/ft width 11' 4" x depth 10' 5"
222 sq/ft width 13' 1" x depth 17'
83 sq/ft width 11' 4" x depth 7' 4"
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
