PLAN 63-278

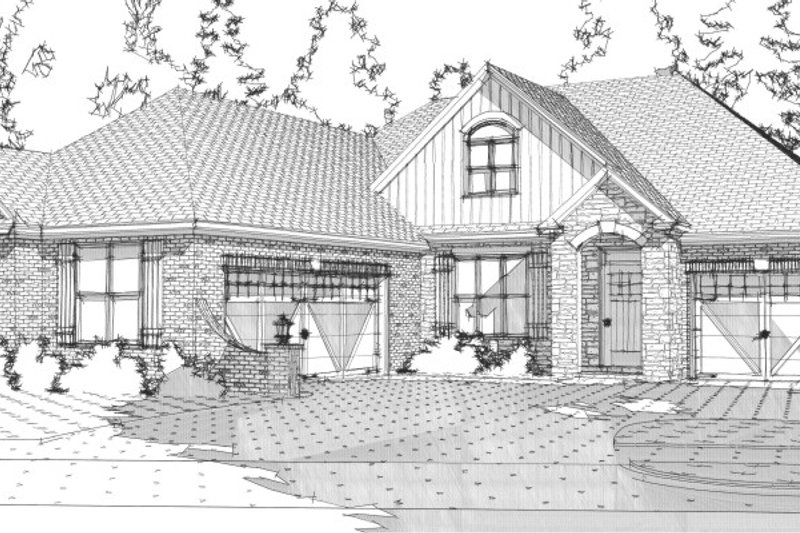

Architectural House Design - Traditional Exterior - Front Elevation Plan #63-278
Architectural House Design - Traditional Exterior - Front Elevation Plan #63-278

Key Specs


2294
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?
Subtotal
$1804.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 63-278

Key Specs


2294
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Full Specs & Features


Dimension
Depth : 87'
Height : 23'
Width : 55'
Area
Garage : 837 sq/ft
Main Floor : 2294 sq/ft
Porch : 254 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : stick
Roof Load : 30
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone/Board & Batten
Framing : 2"x4"
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
More
Suited For Vacation Home
Wheelchair Adaptable
Code Compliance
Irc 2006
Structural Information Provided
Foundation Drawing
Structural Notes
Structural Roof Framing

What's Included In This Plan Set


  • Cover Sheet: Including 3-D perspectives of the exterior of the house. Also protects the rest of the documents within the project set.
  • * Foundation: Complete with dimensions, dimensioned plumbing and referenced details
  • Elevations: Complete with dimensions, ridge heights and special notes and materials
  • Floor Plan(s): Complete with dimensions of all elements including plumbing, appliances and cabinet sizes. Applicable notes of special conditions are tailored with the tradesmen in mind.
  • Roof Plan: Complete with dimensions, plate heights, roof pitches and notes for special conditions, as well as a Roof Square footage table for Calculating roof materials.
  • Rafter plan: Complete with rafter lengths and separate rafter cut list. for accurate estimation of materials. This also aids the framer in selecting the correct lengths to use in order to minimize waste.
  • Details: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Including applicable cabinets, electrical, and special construction notes.
  • Floor joist: Complete with spans, sizes and direction (if applicable).
  • Ceiling Joist: Complete with spans, sizes and direction
  • Sections: Complete with dimensions, notes and Specifications
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
* Alternate foundations are available. Please call 1-800-913-2350 for pricing and turnaround time » See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
5 Copy Set :
$1804.00
5 printed plan sets mailed to you.
8 Copy Set :
$1892.00
8 printed plan sets mailed to you.
PDF Set :
$2024.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$2200.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$2332.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$1848.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$451.00
A list of building supplies needed to construct the infrastructure of your new house.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
