PLAN 46-461
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 51' 8"
Height : 24' 6"
Width : 80' 2"
Area
First Floor: 2246 sq/ft height 8'
Garage: 546 sq/ft
Ceiling
Ceiling Details : Main Floor 9'1"Garage Floor 10'5"
Garage Ceiling : 10'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Load : 47 psf
Roof Type : shingles
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick & Stone
Framing : 2"x4"
Insulation : R15 Walls, R38 Ceiling
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Storage Area
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Empty Nester
Rooms
Bedroom 2:
158 sq/ft width 13' 2" x depth 12'
Bedroom 2 Closet:
130 sq/ft width 20' 1" x depth 6' 6"
Bedroom 3:
129 sq/ft width 10' 10" x depth 12'
Bedroom 3 Closet:
17 sq/ft width 2' 1" x depth 8' 3"
Breakfast Nook:
161 sq/ft width 14' 6" x depth 11' 2"
Coat Closet:
10 sq/ft width 5' x depth 2' 1"
Dining Room:
156 sq/ft width 11' 4" x depth 13' 10"
Foyer:
120 sq/ft width 7' 8" x depth 15' 9"
Garage:
565 sq/ft width 21' 10" x depth 25' 11"
Great Room:
322 sq/ft width 17' 11" x depth 18'
Half Bathroom:
45 sq/ft width 9' x depth 5'
Hall Closet:
9 sq/ft width 4' 6" x depth 2' 1"
Kitchen:
177 sq/ft width 12' x depth 14' 10"
Laundry Room:
49 sq/ft width 8' 2" x depth 6' 1"
Linen Closet:
5 sq/ft width 1' 7" x depth 3' 6"
Master Bathroom:
144 sq/ft width 10' 7" x depth 13' 8"
Master Bedroom:
234 sq/ft width 13' x depth 18'
Master Walk-In Closet:
73 sq/ft width 10' 6" x depth 7'
Pantry:
7 sq/ft width 2' 1" x depth 3' 6"
Porch - Front:
211 sq/ft width 21' 2" x depth 10'
Porch - Rear:
203 sq/ft width 13' 1" x depth 15' 7"
Toilet Closet:
17 sq/ft width 5' x depth 3' 6"
What's Included In This Plan Set
- Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).

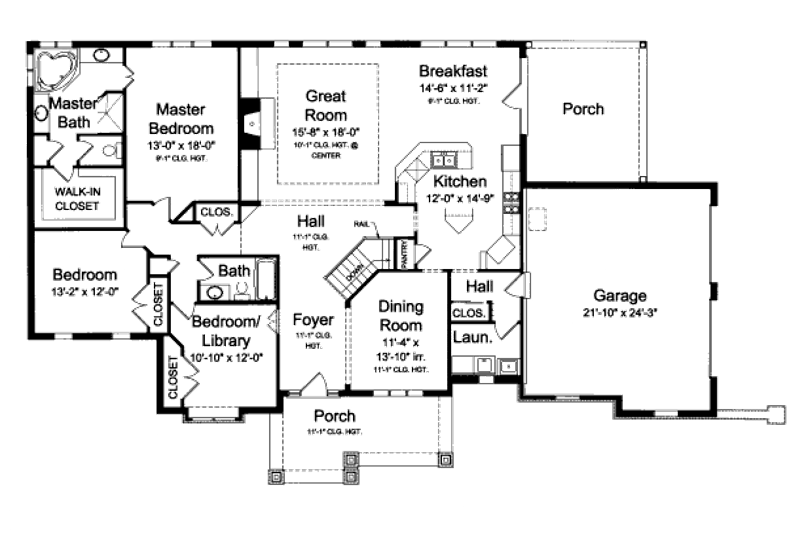

- Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
- Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
- Fireplace detail shows how the fireplace is to be built.
- Wall section shows typical framing detail of house.
Plan Set
$995.00
$1050.00
$1075.00
$1130.00
$1775.00
$1775.00
$820.00
Foundation
$0.00
$250.00
$250.00
Framing
$0.00
Additional Options
$150.00
$50.00
$100.00
$39.00
$100.00
$50.00
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
