PLAN 1073-9

Photographs may show modified designs.

Save
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

2243
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

3.5
Baths

Plan Floors

2
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$157.25
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Use License
$425.00
Allows you to build one more home for each additional license purchased.
Audio Video Design
$127.50
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Subtotal
NOW $973.25
You save $171.75 (15% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-877-222-1762
Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 1073-9

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description


Here’s a versatile home with space in all the right places. Through the two-car garage (add a third bay if needed), the mudroom captures clutter before it enters the home. Putting away groceries is easy with the pantry just a few steps away. Don’t need a formal living room? Use the space as a den or playroom instead. Upstairs, three bedrooms (or four, if you decide to finish the loft) enjoy walk-in closets and close proximity to the laundry room. The master suite features a five-piece private bathroom.

Full Specs & Features


Dimension

Depth : 40'

Height : 28' 1"

Width : 35' 6"

Area

Garage : 408 sq/ft

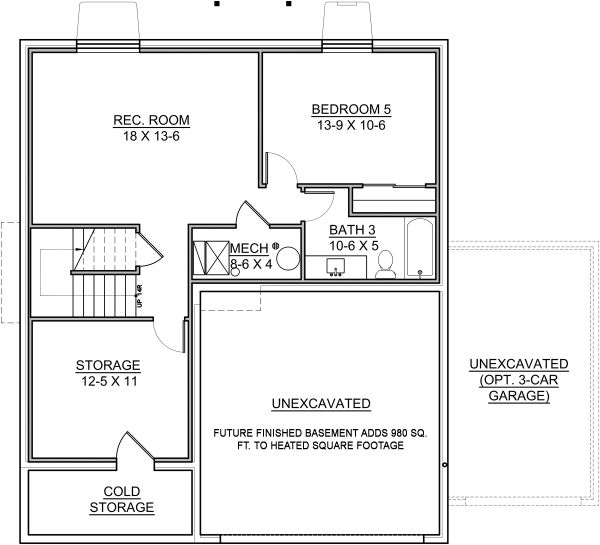

Lower Floor : 980 sq/ft

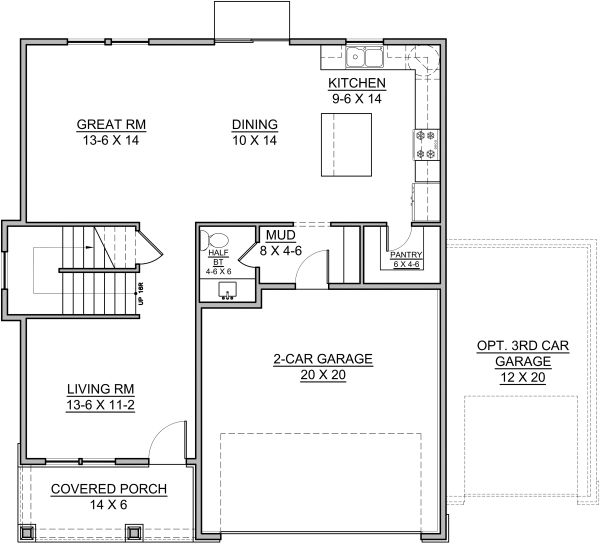

Main Floor : 984 sq/ft

Porch : 89 sq/ft

Storage : 89 sq/ft

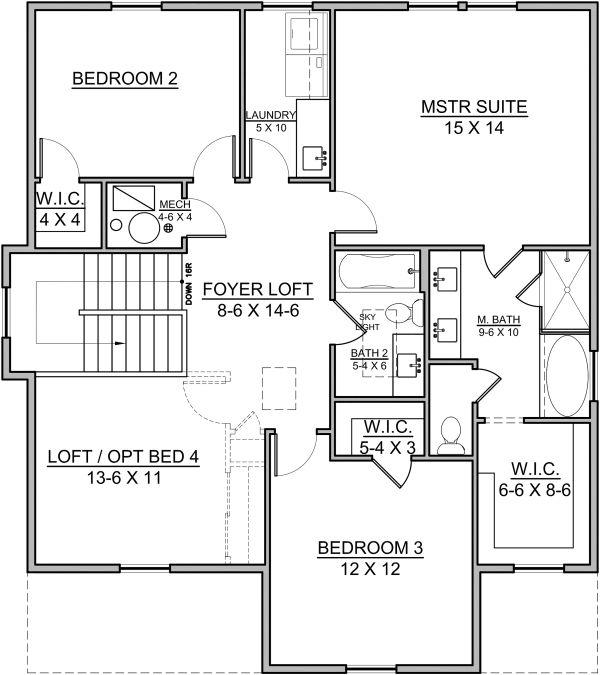

Upper Floor : 1259 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Garage Ceiling : 11' 2"

Lower Ceiling : 8'

Main Ceiling : 9'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 6/12

Roof Framing : Conventional

Roof Load : 30LL/15DL

Roof Type : P.E. Trusses

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2x6

Insulation : R19 / R38

Bedroom Features

Upstairs Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Loft

Mud Room

Upstairs Laundry

Garage Features

Oversized Garage

Lot Characteristics

Suited For Narrow Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$973.25
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1270.75
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$1402.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set:
$1402.50
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$267.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Monolithic Slab:
$267.75
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Slab:
$267.75
Ideal for level lot, single layer concrete poured directly on grade.
Daylight Basement:
$297.50
Ideal for sloping lot, lower level of home partially underground.
Walk Out Basement:
$297.50
Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$212.50
Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$157.25
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Use License:
$425.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$127.50
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
