Plan Description
What a gracious stucco and brick ranch style home. This home is visually
inspiring, it features three bedrooms which includes a master suite. The
master suite is extremely roomy with a triple French door unit exiting to the
screen porch. There is a vast walk-in closet and a master bathroom including a
whirlpool tub. The kitchen, nook, and great room all flow together to give a
feeling of openness. There is a center island in the kitchen perfect for meal
palnning. This home also features a eating bar and the nook also has an exit
to the screen porch. The greatroom has built-in cabinets surrounding the
fabulous and cozy fireplace. Other amenities are a first floor laundry, a full
bath and a open staircase to the lower level.
Floor Plans

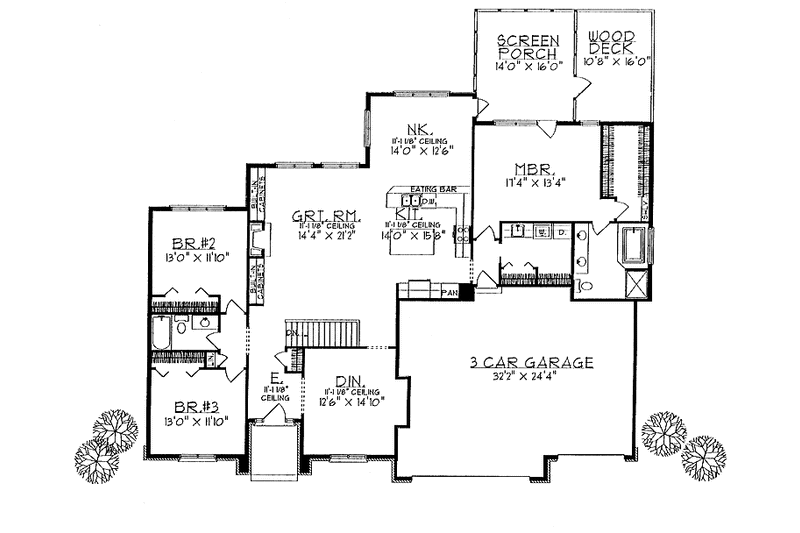

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 54'
Height : 28'
Width : 69'
Area
First Floor: 2232 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : Wood - 2x6
Rooms
Bedroom 2:
153 sq/ft width 13' x depth 11' 10"
Bedroom 3:
153 sq/ft width 13' x depth 11' 10"
Breakfast Nook:
175 sq/ft width 14' x depth 12' 6"
Dining Room:
185 sq/ft width 12' 6" x depth 14' 10"
Garage:
782 sq/ft width 32' 2" x depth 24' 4"
Great Room:
303 sq/ft width 14' 4" x depth 21' 2"
Kitchen:
219 sq/ft width 14' x depth 15' 8"
Master Bedroom:
231 sq/ft width 17' 4" x depth 13' 4"
Porch - Screened:
224 sq/ft width 14' x depth 16'
Wood Deck:
170 sq/ft width 10' 8" x depth 16'
