Key Specs

2109
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Additional Construction Sets$63.75/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$250.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$140.25
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets$85.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $1317.50

You save $232.50 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1010-151

Home > Style > Ranch House Plans

Key Specs

2109
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Full of great family gathering zones and clever storage spaces, this one-story home offers versatility and beauty. Upon entering the home from the garage, the well-organized mudroom invites you to sit and remove your shoes, take off your coat, and stash muddy boots. A little further in, the walk-in pantry sits next to a tech area that's the perfect place to put your phone, tablet, or laptop. The island's snack bar gives extra room to sit and socialize. You'll find all three bedrooms in the left wing of the home, with the spacious master suite a bit apart from the others for privacy. Other highlights include the butler's pantry, the cozy fireplace in the great room, and the hutch space in the semi-open dining room.

Floor Plans

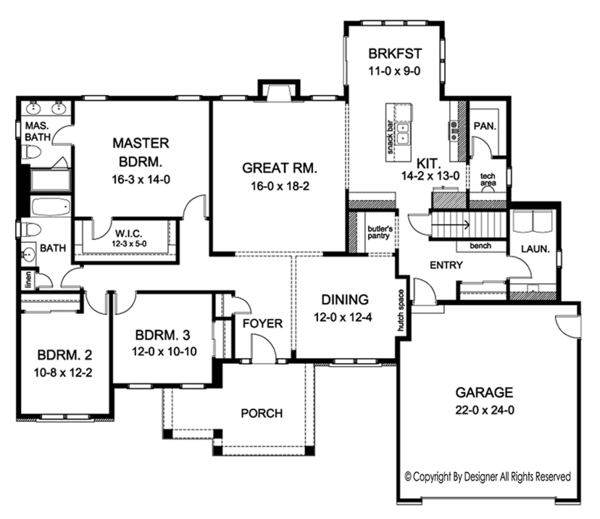

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 57' 8"

Height : 25'

Width : 67' 8"

Area

Basement Unfinished: 2109 sq/ft

First Floor: 2109 sq/ft height 9'

Garage: 528 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Truss

Roof Type : Asphalt

Secondary Pitch : 12:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Mud Room

Open Floor Plan

Garage Features

Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Bedroom 2:

130 sq/ft width 10' 8" x depth 12' 2"

Bedroom 3:

130 sq/ft width 12' x depth 10' 10"

Breakfast:

99 sq/ft width 11' x depth 9'

Butlers pantry:

28 sq/ft width 5' 6" x depth 5'

Covered Front Porch:

166 sq/ft

Dining Room:

148 sq/ft width 12' x depth 12' 4"

Foyer:

76 sq/ft width 9' 6" x depth 8'

Garage:

528 sq/ft width 22' x depth 24'

Great Room:

291 sq/ft width 16' x depth 18' 2"

Hall Bath:

69 sq/ft width 6' x depth 11' 6"

Kitchen:

184 sq/ft width 14' 2" x depth 13'

Laundry:

55 sq/ft width 5' 6" x depth 10'

Master bath:

48 sq/ft width 6' x depth 8'

Master Bedroom:

228 sq/ft width 16' 3" x depth 14'

Pantry:

29 sq/ft width 4' 6" x depth 6' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
CAD Plans are in AutoDesk Architecture.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1317.50

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1360.00

5 printed plan sets mailed to you.

CAD Set:
$2635.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$765.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Additional Construction Sets:
$63.75

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$85.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
