PLAN 46-429

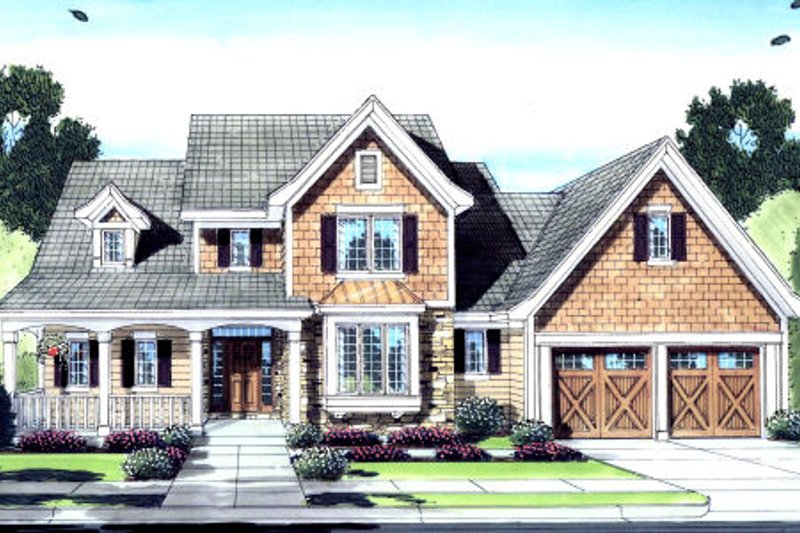

Craftsman Exterior - Front Elevation Plan #46-429
Craftsman Exterior - Other Elevation Plan #46-429
Craftsman Exterior - Rear Elevation Plan #46-429

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $877.50
You save $97.50
(10% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 46-429

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

The beauty of this house defines the term Love at first sight. From the warm and inviting exterior to the efficiency of the floor plan the love affair will continue throughout the years of enjoyment that this home will offer. The ten-foot ceilings height in the great room is highlighted by a dropped soffit around the perimeter; and gas fireplace adds to the cozy atmospher of the room. The formal and informal dining areas enjoy easy access from the kitchen; and the first floor master bedroom suite pampers the homeowner with a whirlpool tub, double bowl vanity, shower enclosure and access to the rear covered porch. A balcony offers a beautiful view to the foyer from the second floor and leads to 3 additional bedrooms, plus an optional bonus room that would be a great computer room, 5th bedroom or large storage area.

Full Specs & Features

Depth : 45' 4"
Height : 29' 6"
Width : 64' 4"
Bonus: 186 sq/ft

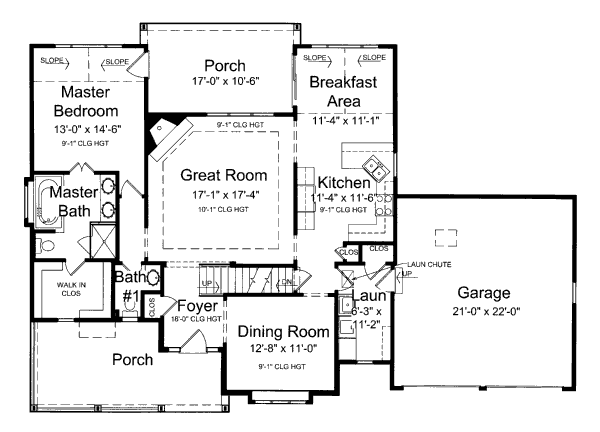

First Floor: 1415 sq/ft height 9'
Garage: 453 sq/ft

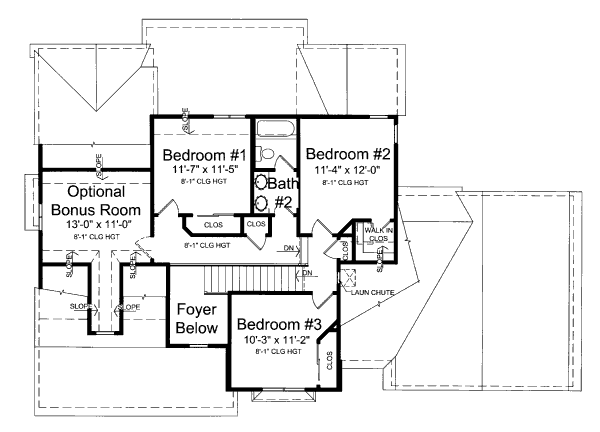

Second Floor: 693 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Additional Room Features
Great Room Living Room
Play Flex Room
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch


54 sq/ft width 3' 6" x depth 15' 6"

Bedroom 2:

132 sq/ft width 11' 7" x depth 11' 5"

Bedroom 2 Closet:

13 sq/ft width 6' 7" x depth 2' 1"

Bedroom 3:

135 sq/ft width 11' 4" x depth 12'

Bedroom 3 Closet:

22 sq/ft width 4' 9" x depth 4' 8"

Bedroom 4:

114 sq/ft width 10' 3" x depth 11' 2"

Bedroom 4 Closet:

11 sq/ft width 2' 1" x depth 5' 9"

Bonus Room - Finished:

147 sq/ft width 13' x depth 11' 4"

Breakfast Room:

125 sq/ft width 11' 4" x depth 11' 1"

Coat Closet:

6 sq/ft width 2' 1" x depth 2' 11"

Covered Porch:

215 sq/ft width 22' 4" x depth 9' 8"

Dining Room:

139 sq/ft width 12' 8" x depth 11'


65 sq/ft width 7' x depth 9' 4"


454 sq/ft width 20' 8" x depth 22'

Gathering Room:

296 sq/ft width 17' 1" x depth 17' 4"


23 sq/ft width 3' 1" x depth 7' 6"

Hall Bathroom:

56 sq/ft width 5' x depth 11' 3"

Hall Closet:

6 sq/ft width 3' x depth 2' 1"


130 sq/ft width 11' 4" x depth 11' 6"

Laundry Room:

69 sq/ft width 6' 3" x depth 11' 2"

Linen Closet:

4 sq/ft width 1' 6" x depth 2' 10"

Master Bathroom:

95 sq/ft width 9' 7" x depth 9' 11"

Master Bedroom:

188 sq/ft width 13' x depth 14' 6"

Master Closet:

60 sq/ft width 9' 1" x depth 6' 8"


3 sq/ft width 1' 6" x depth 2' 1"

Porch - Front:

215 sq/ft width 22' 4" x depth 9' 8"

Porch - Rear:

171 sq/ft width 16' 10" x depth 10' 2"

Powder Room:

33 sq/ft width 5' 5" x depth 6' 2"

What's Included In This Plan Set

Special Offer: When you buy a 5 copy or 8 copy printed set, a PDF set will be emailed to you.
  • Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.

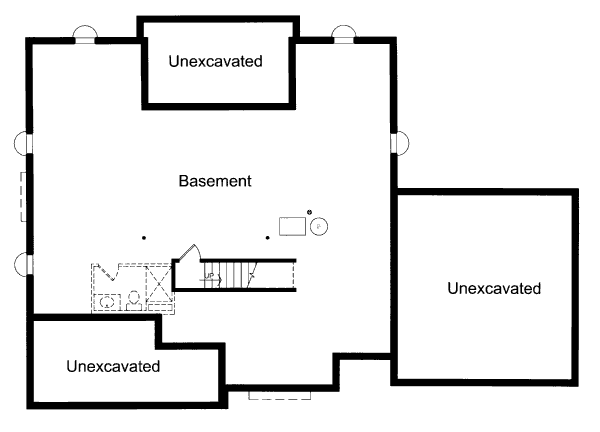

  • Foundation Plan: 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall).
  • Floor Plans: 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.
  • Roof Plan: 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
Miscellaneous Details:
  • Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
  • Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
  • Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
  • Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
  • Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point.
  • Fireplace detail shows how the fireplace is to be built.
  • Wall section shows typical framing detail of house.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.


Ideal for level lot, lower level of home partially or fully underground.

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
