Full Specs & Features
Depth : 48'
Width : 36'
Garage : 441 sq/ft

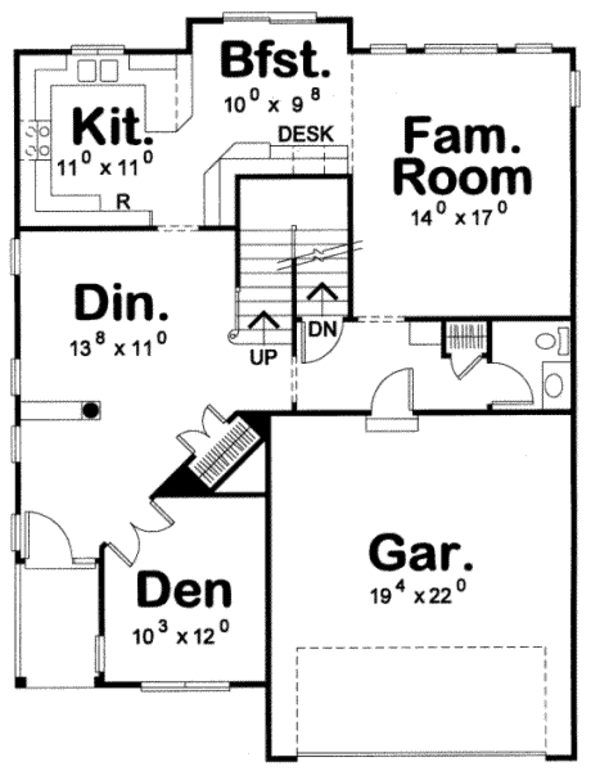

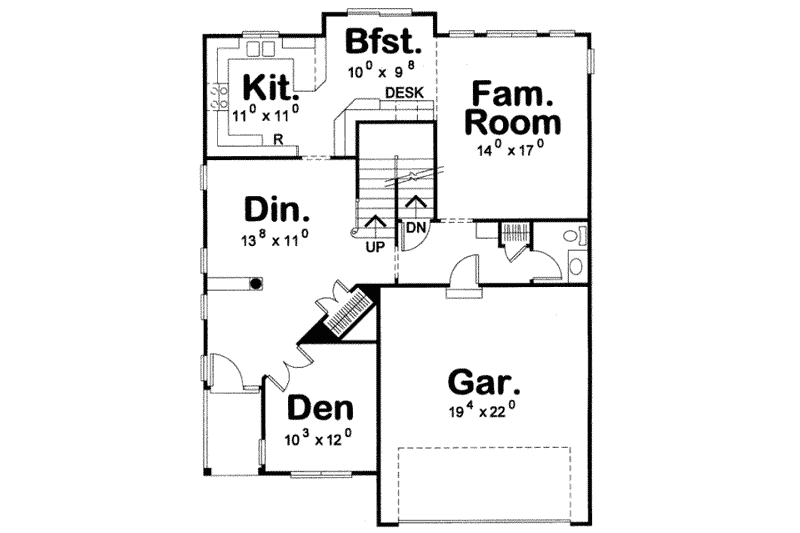

Main Floor : 1117 sq/ft

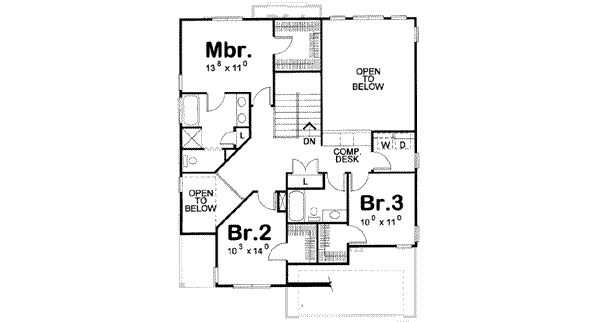

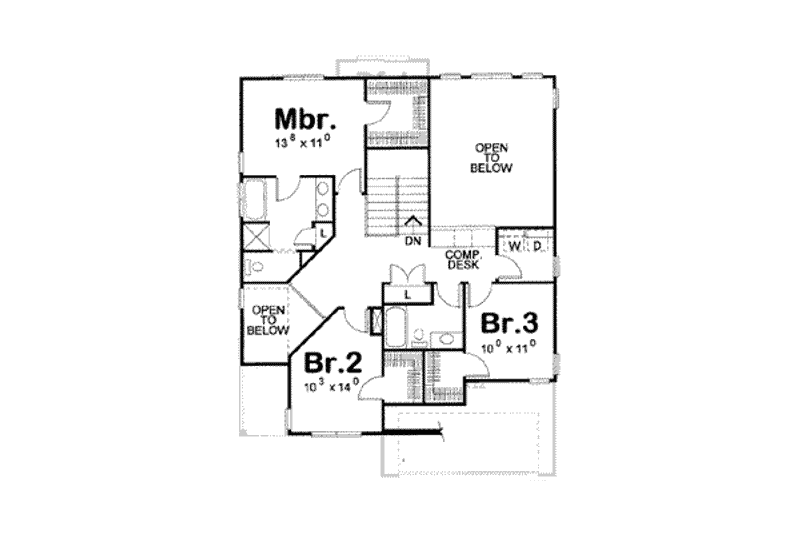

Upper Floor : 959 sq/ft
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 7:12
Secondary Pitch : 12:12
Exterior Wall Framing
Framing : 2"x6"
Upstairs Master Bedrooms
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Unfinished Future Space
Suited For Narrow Lot
Covered Front Porch
What's Included In This Plan Set
- Cover Page: Front elevation and informative reference sections including: general notes and design criteria
- Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
- Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
- Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
- Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
- Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.
- Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
