Full Specs & Features
Depth : 39'
Height : 15' 5"
Width : 30'
Basement : 832 sq/ft
Decks : 411 sq/ft
Main Floor : 832 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 2.5:12
Roof Framing : gable
Roof Load : 25
Roof Type : truss
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
Additional Room Features
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Covered Front Porch
Covered Rear Porch
Wrap Around Porch
What's Included In This Plan Set
» See important
information before purchasing.
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

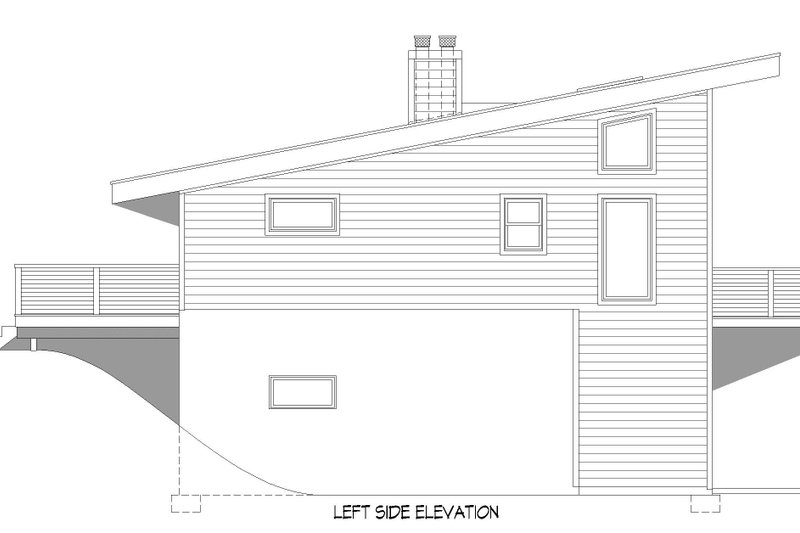

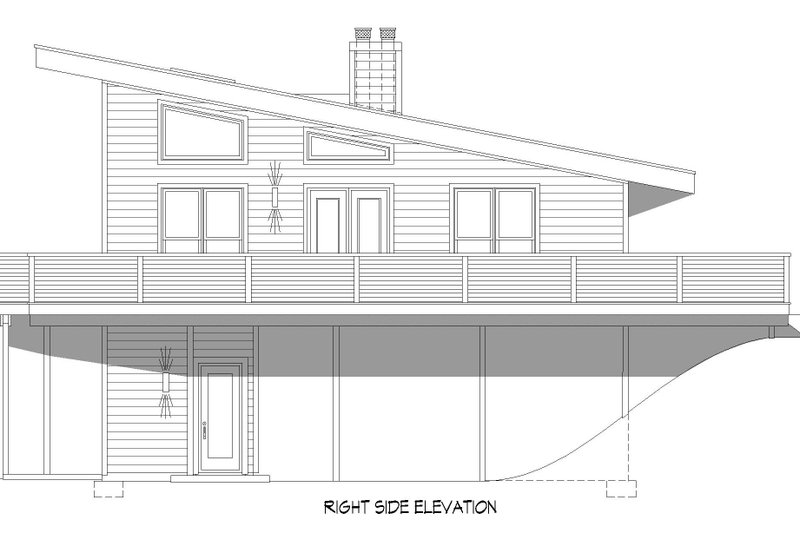

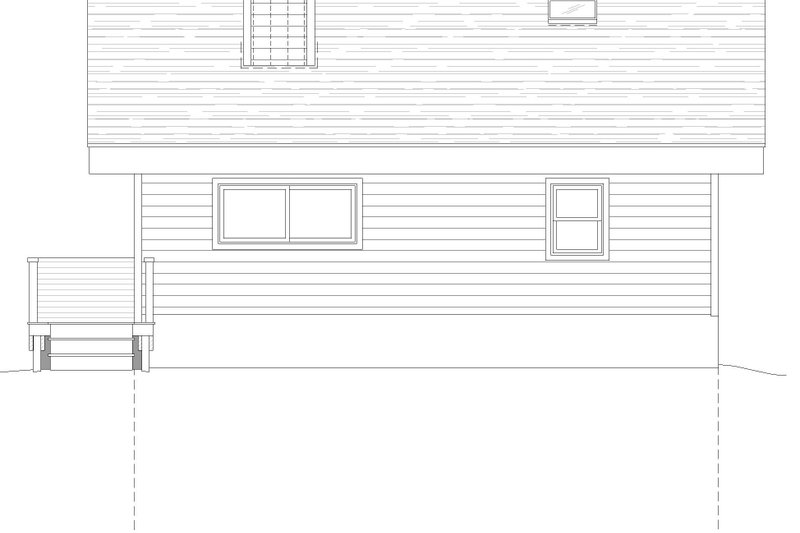

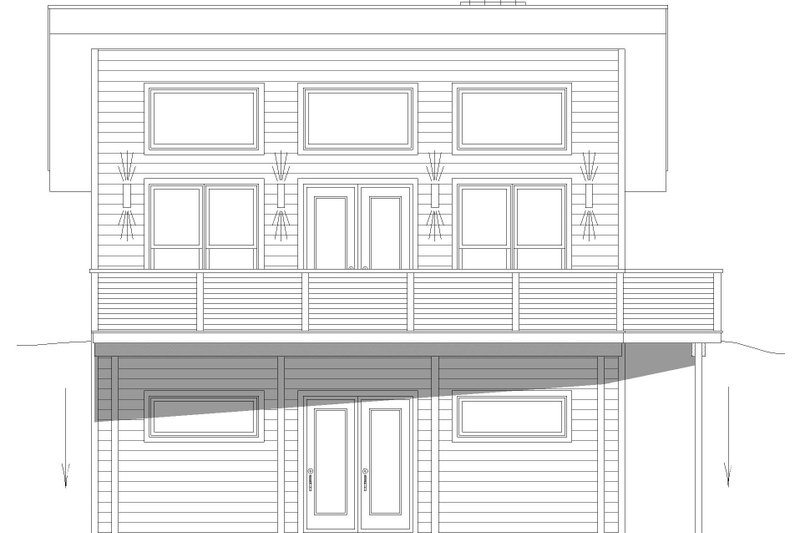

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
