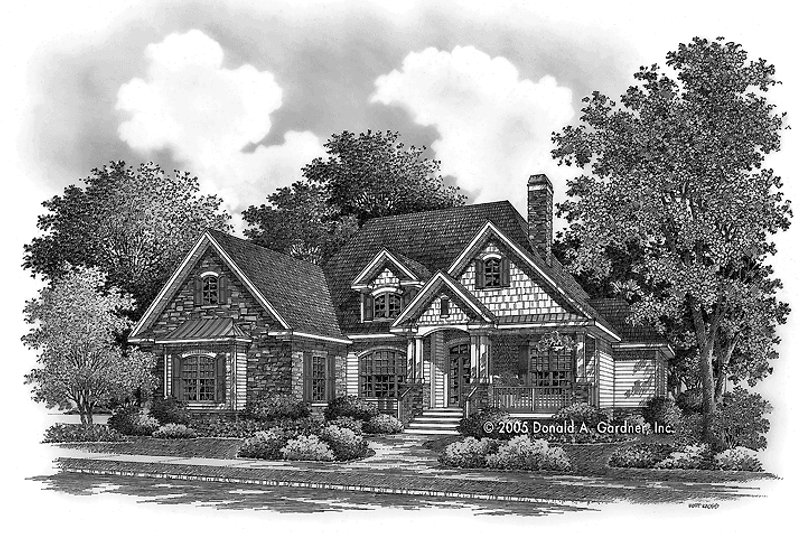

Architectural House Design - Craftsman Exterior - Front Elevation Plan #929-783

Architectural House Design - Craftsman Exterior - Rear Elevation Plan #929-783

Home / Style / Craftsman

Key Specs

2048
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$210.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets

$60.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Material List

$275.00

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Subtotal

$1305.00

Also order by phone: 1-877-222-1762

Wow! Cost to Build Reports Only $4.99 with Code CTBHOLIDAY (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 929-783

Home / Style / Craftsman

Key Specs

2048
sq ft

4
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

A striking blend of exterior materials gives this home a facade that radiates curb appeal. A tray ceiling and single column grant elegance to the dining room that overflows into the great room. Built-in shelves, a fireplace and cathedral ceiling all accent the great room and showcase architectural details. When enjoying Mother Nature, the rear porch can be accessed via the great room and also features skylights for natural illumination. The bedrooms are positioned for privacy. Secondary bedrooms share a full bath and are located on one side of the home, while the master is on the quieter side. Crowned with a tray ceiling, the master suite features two walk-in closets, bay window and pampering bath.

Floor Plans

Floor Plan - Main Floor

Reverse

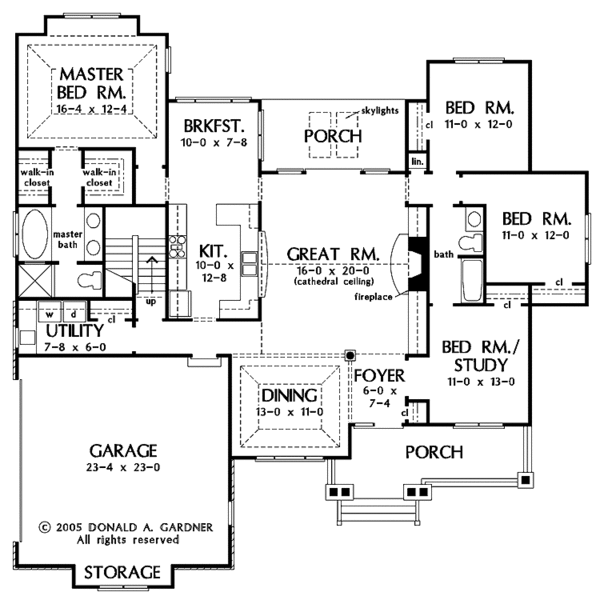

Architectural House Design - Craftsman Floor Plan - Main Floor Plan #929-783

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Other Floor

Reverse

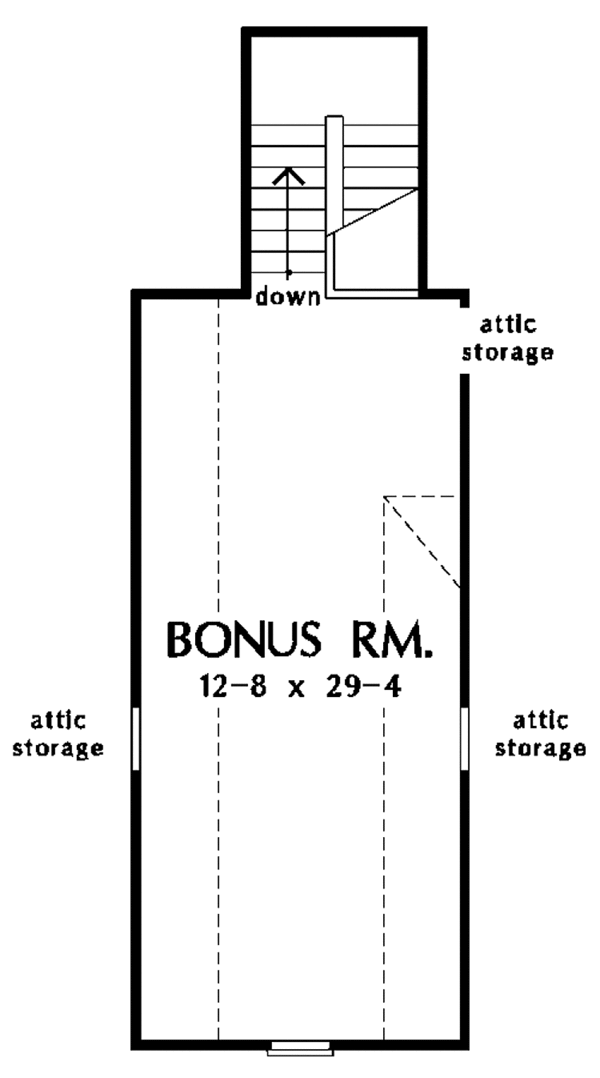

Architectural House Design - Craftsman Floor Plan - Other Floor Plan #929-783

Full Specs & Features

Dimension

Depth : 63' 8"

Height : 29' 4"

Width : 63' 8"

Area

Bonus: 476 sq/ft

First Floor: 2048 sq/ft

Garage: 583 sq/ft

Porch: 284 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Additional Room Features

Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

64 sq/ft width 6' x depth 10' 8"

Bedroom 2:

143 sq/ft width 11' x depth 13'

Bedroom 2 Closet:

9 sq/ft width 4' 8" x depth 2'

Bedroom 3:

132 sq/ft width 11' x depth 12'

Bedroom 3 Closet:

12 sq/ft width 6' x depth 2'

Bedroom 4:

132 sq/ft width 11' x depth 12'

Bedroom 4 Closet:

10 sq/ft width 2' x depth 5' 4"

Bonus Room - Finished:

371 sq/ft width 12' 8" x depth 29' 4"

Breakfast Room:

76 sq/ft width 10' x depth 7' 8"

Coat Closet:

4 sq/ft width 2' x depth 2' 4"

Dining Room:

143 sq/ft width 13' x depth 11'

Foyer:

43 sq/ft width 6' x depth 7' 4"

Garage:

536 sq/ft width 23' 4" x depth 23'

Garage Storage:

24 sq/ft width 10' 8" x depth 2' 4"

Gathering Room:

320 sq/ft width 16' x depth 20'

Kitchen:

126 sq/ft width 10' x depth 12' 8"

Linen Closet:

14 sq/ft width 2' x depth 7'

Master Bathroom:

93 sq/ft width 9' 4" x depth 10'

Master Bedroom:

201 sq/ft width 16' 4" x depth 12' 4"

Master Closet:

19 sq/ft width 3' 4" x depth 6'

Master Closet Two:

31 sq/ft width 5' 4" x depth 6'

Porch - Front:

151 sq/ft width 22' 8" x depth 6' 8"

Porch - Rear:

128 sq/ft width 8' x depth 16'

Utility Room:

46 sq/ft width 7' 8" x depth 6'
