PLAN 1010-107
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 62' 8"
Height : 25'
Width : 64'
Area
Basement Unfinished: 2024 sq/ft
First Floor: 2024 sq/ft height 9'
Garage: 528 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Open Floor Plan
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch

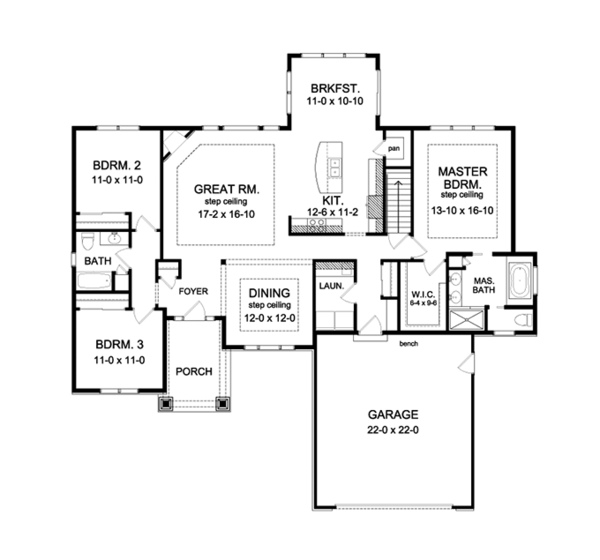

Rooms
Bedroom 2:
width 11' x depth 11'
Bedroom 3:
width 11' x depth 11'
Breakfast Nook:
width 11' x depth 10' 10"
Covered Front Porch:
100 sq/ft
Dining Room:
width 12' x depth 12'
Garage:
528 sq/ft width 22' x depth 22'
Great Room:
width 17' 2" x depth 16' 10"
Kitchen:
width 12' 6" x depth 11' 2"
Master Bedroom:
width 13' 10" x depth 16' 10"
Master Closet:
width 6' 4" x depth 9' 6"
What's Included In This Plan Set
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Roof Plan: ?” scale; this shows roof rafter or trusses and how the roof is framed.
- CAD Plans are in AutoDesk Architecture.
Plan Set
$1550.00
$1600.00
$3100.00
$900.00
$900.00
Foundation
$0.00
Framing
$0.00
Additional Options
$75.00
$165.00
$295.00
$39.00
$165.00
$100.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
