Plan Description
This beautiful one level home offers step saving convinience, formal and informal dining, 3 bedrooms, a three car side entry garage and front and rear covered porches. The master suite offers a raised ceiling, Wirlpool tub, shower and double bowl vanity. Decorating the great room is a sloped ceiling that reaches 11' height and a gas fireplace. The grand opening between the great room and breakfast room visually opens this space. The kitchen boasts a pantry, a bar with seating and a space save microwave shelf. A full basement foundation comes with this plan offering additional future living space.
Floor Plans

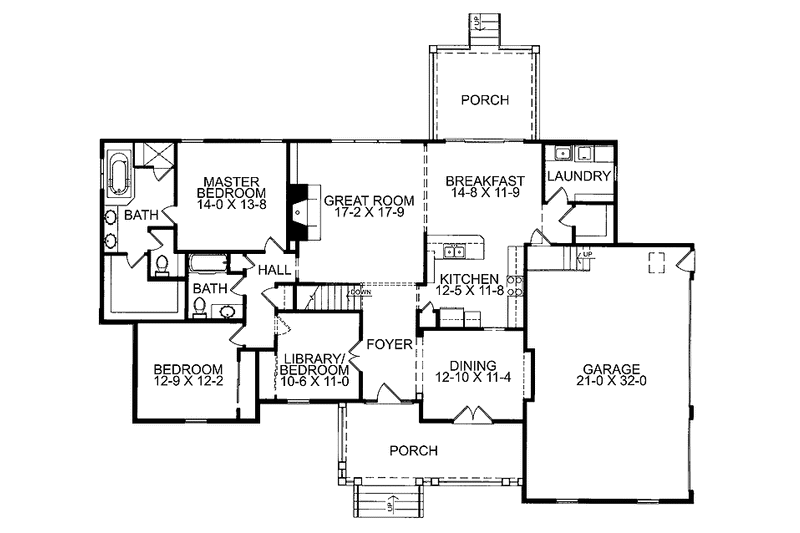

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 57' 8"
Height : 28'
Width : 75' 6"
Area
First Floor: 1994 sq/ft
Garage: 658 sq/ft
Porch: 213 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
155 sq/ft width 12' 9" x depth 12' 2"
Bedroom 2 Closet:
18 sq/ft width 2' 1" x depth 8' 8"
Bedroom 3:
115 sq/ft width 10' 6" x depth 11'
Bedroom 3 Closet:
12 sq/ft width 2' 1" x depth 6' 2"
Breakfast Room:
171 sq/ft width 14' 8" x depth 11' 8"
Dining Room:
145 sq/ft width 12' 10" x depth 11' 4"
Garage:
672 sq/ft width 21' x depth 32'
Gathering Room:
304 sq/ft width 17' 2" x depth 17' 9"
Half Bathroom:
57 sq/ft width 7' x depth 8' 3"
Hall Closet:
6 sq/ft width 2' 1" x depth 3' 2"
Kitchen:
144 sq/ft width 12' 5" x depth 11' 8"
Laundry Room:
64 sq/ft width 8' 11" x depth 7' 3"
Library:
115 sq/ft width 10' 6" x depth 11'
Master Bathroom:
127 sq/ft width 9' 1" x depth 14'
Master Bedroom:
191 sq/ft width 14' x depth 13' 8"
Master Closet:
85 sq/ft width 10' 6" x depth 8' 2"
Pantry:
4 sq/ft width 2' 2" x depth 1' 11"
Study:
115 sq/ft width 10' 6" x depth 11'
What's Included In This Plan Set
- Foundation Plan(s): 1/4" scale foundation plan includes dimensions, actual steel beam and joist sizes. Most plans are designed for basement with a 7'10" pour and level lot (8" poured concrete wall). Foundation reinforcing detail shows size of footing and foundation wall, size and spacing of rebar.
- Floor Plan(s): 1/4" scale plan that includes dimensions; actual header, flush beam, and joist sizes. Window rough opening sizes and locations. High quality windows and doors are specified on floor plan drawings. Location of bearing walls, direction of truss and rafter framing noted with size and spacing. Electrical layouts are shown.

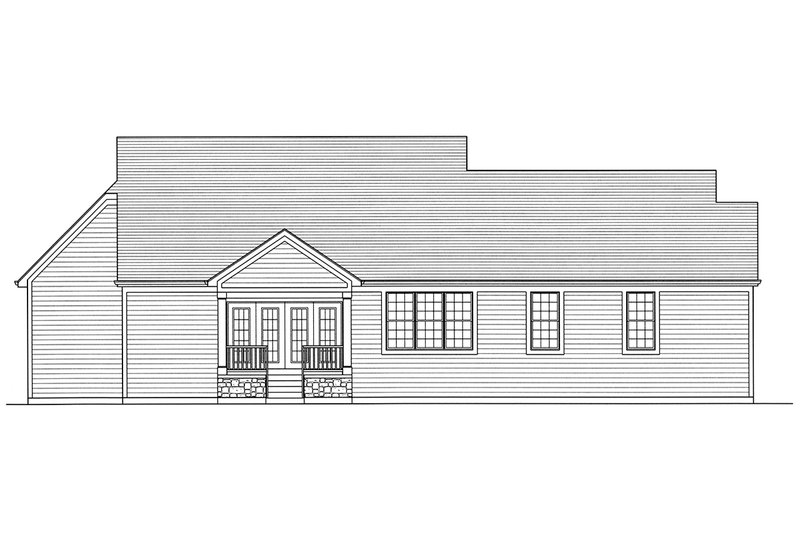

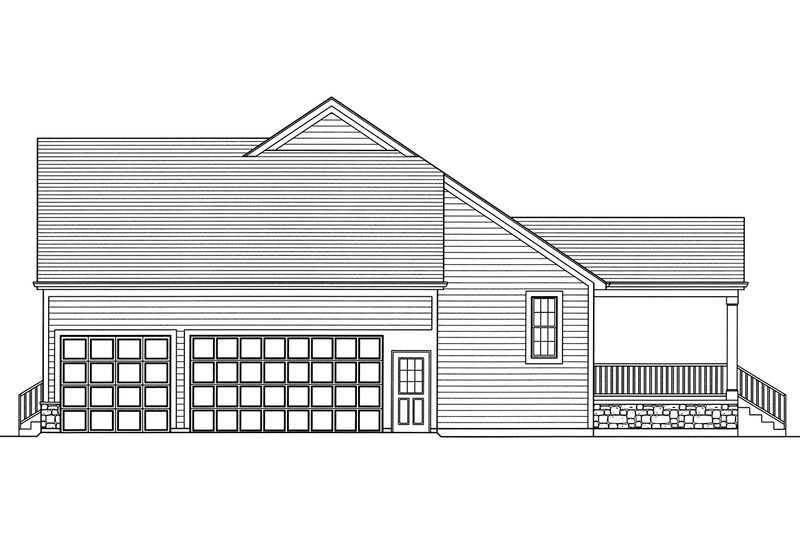

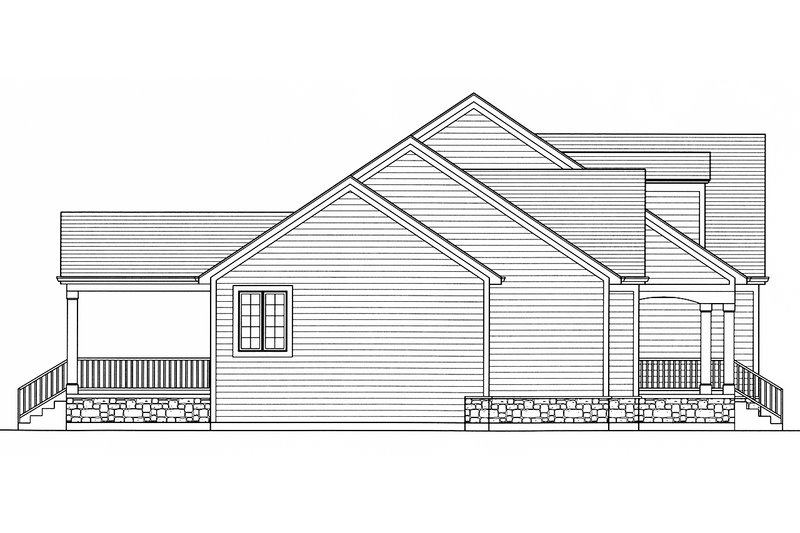

- Exterior Elevations: Drawings of front, rear, right side and left side elevations drawn at 1/4" scale.
- Overhead Roof Plan(s): 1/8" scale plan indicates roof pitches, overhangs, saddles and chimneys
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the location of lights, receptacles, switches, etc. Some plans that do not include an electrical plan may have it available for an additional fee.
- Kitchen Cabinet Elevation(s): Cabinet layouts, included in drawings, can be used to show sizes of cabinets at kitchen to be installed. This detail can also be helpful should you want custom cabinets, it can be used by your cabinet people to show you what will fit in the space and your options available.
- Detail Sheet(s): Beam and column detail shows connection of steel columns that are used to support steel beams at basement and footing detail to be installed below slab to support column load. Stair Detail to show builder how to frame with information such as tread and riser heights.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Framing Detail(s): If included, the framing layout is intended to be a suggested layout only. Design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location. Truss profiles to show builder any irregular profiles, pitches, or heelcuts that varies from the typical framing.
- Wall Section(s): Wall section shows typical framing detail of house.
- Stair Detail(s): Drawings showing stair details.
- Door / Window Schedule(s): A list of all the doors and windows needed to construct the house. This can help with estimating materials costs.
- Other Note(s): Fireplace elevations that can be used as is to build your fireplace or to give you or your decorator a starting point. Fireplace detail shows how the fireplace is to be built.
Questions? Call 1-877-222-1762
Plan Set
PDF Set:
$1000.00
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$1050.00
$1050.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set:
$1080.00
$1080.00
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1525.00
$1525.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set:
$770.00
$770.00
One electronic set for bidding purposes only. Not a legal building set for construction.
Foundation
Basement:
$0.00
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Framing
Wood 2x4:
$0.00
$0.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$200.00
$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$50.00
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$295.00
$295.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$39.00
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$175.00
$175.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets:
$50.00
$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
