PLAN 124-706
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 57'
Height : 20' 6"
Width : 54'
Area
First Floor: 1908 sq/ft height 9'
Garage: 471 sq/ft height 9'
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Load : 25 psf
Exterior Wall Framing
Exterior Wall Finish : stone, siding
Framing : 2"x6"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Mud Room
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
More
Empty Nester
Rooms
Bedroom 2:
117 sq/ft width 11' 2" x depth 10' 6"
Bedroom 3:
117 sq/ft width 11' 2" x depth 10' 6"
Den:
155 sq/ft width 11' x depth 14' 2"
Dining Room:
126 sq/ft width 10' x depth 12' 8"
Garage:
462 sq/ft width 21' x depth 22'
Kitchen:
128 sq/ft width 10' 2" x depth 12' 8"
Living Room:
303 sq/ft width 17' 6" x depth 17' 4"
Master Suite:
225 sq/ft width 15' x depth 15'
Patio:
96 sq/ft width 12' x depth 8'
What's Included In This Plan Set
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
- Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
- Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

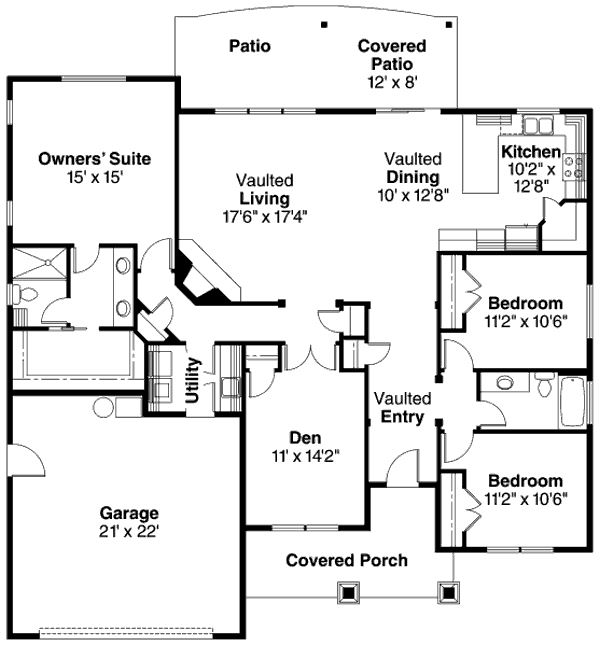

- Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
- Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
- Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
- Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
- Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
- Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
- Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Plan Set
$1150.00
$1425.00
$2400.00
$2575.00
$2825.00
$900.00
Foundation
$0.00
$350.00
$460.00
Framing
$0.00
$350.00
Additional Options
$300.00
$55.00
$770.00
$165.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
