PLAN 946-5
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

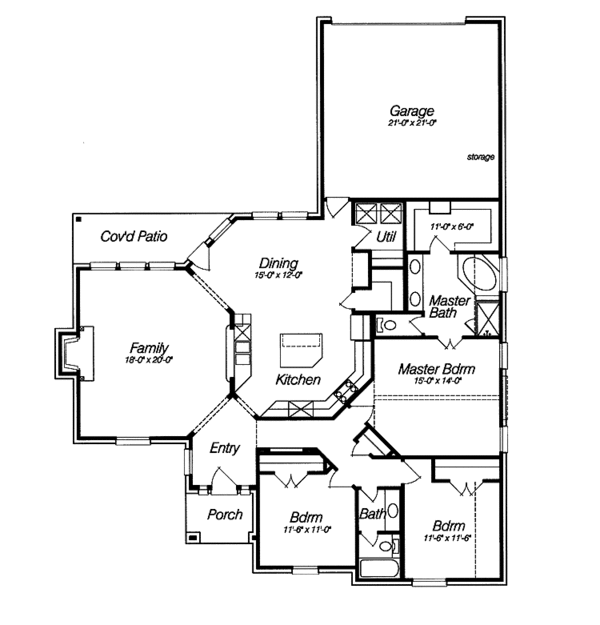

Floor Plans
Full Specs & Features
Dimension
Depth : 68'
Height : 24' 4"
Width : 51' 9"
Area
First Floor: 1905 sq/ft
Garage: 496 sq/ft
Porch: 48 sq/ft
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings
Garage Features
Rear Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Outdoor Kitchen Grill
Rooms
Bedroom 2:
126 sq/ft width 11' 6" x depth 11'
Bedroom 3:
132 sq/ft width 11' 6" x depth 11' 6"
Dining Room:
180 sq/ft width 15' x depth 12'
Family Room:
360 sq/ft width 18' x depth 20'
Garage:
441 sq/ft width 21' x depth 21'
Kitchen:
202 sq/ft width 16' 5" x depth 12' 4"
Master Bedroom:
210 sq/ft width 15' x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$667.00
$742.00
$870.00
$1048.00
$575.00
Foundation
$0.00
Framing
$0.00
Additional Options
$175.00
$60.00
$100.00
$39.00
$100.00
$75.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
