Full Specs & Features
Depth : 32'
Height : 37'
Width : 34'
First Floor: 912 sq/ft height 9'
Second Floor: 831 sq/ft
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x4"
Upstairs Master Bedrooms
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Carport Porte Cochere
Suited For Corner Lot
Suited For Narrow Lot
Suited For View Lot
Covered Front Porch
Suited For Vacation Home
110 sq/ft width 11' x depth 10'
110 sq/ft width 10' 6" x depth 10' 6"
135 sq/ft width 11' 4" x depth 12'

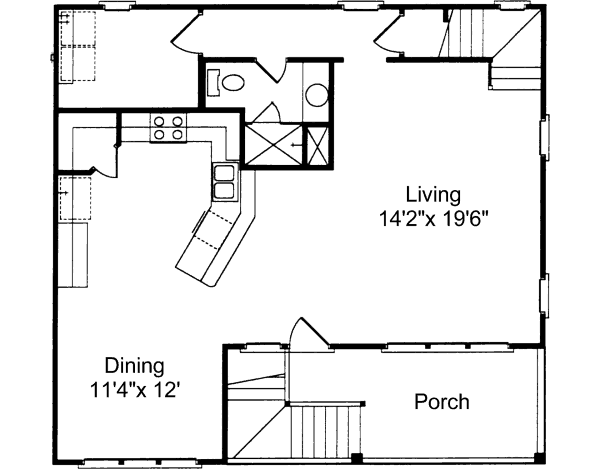

276 sq/ft width 14' 2" x depth 19' 6"
182 sq/ft width 13' x depth 14'
65 sq/ft width 9' x depth 7' 3"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

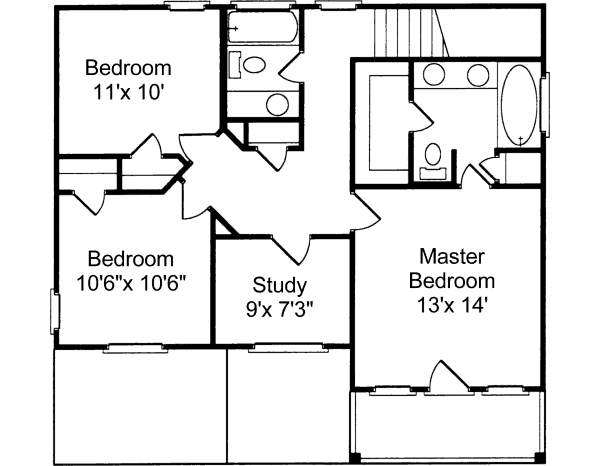

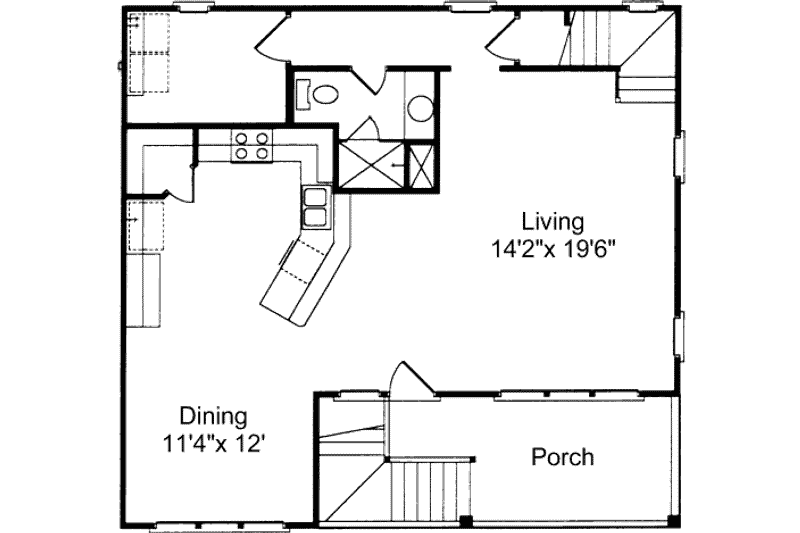

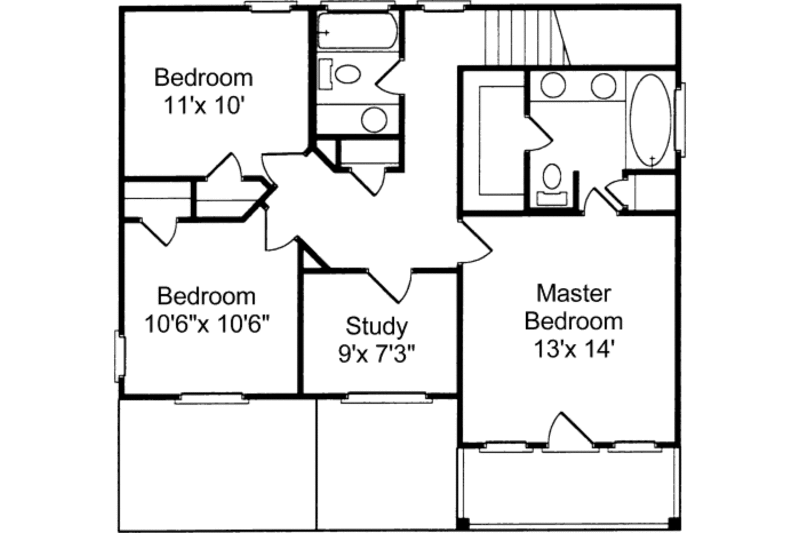

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
