PLAN 70-1240

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$40.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$900.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 70-1240

Key Specs


1626
sq ft

3
Beds

2
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description


This Prairie style ranch has features that set it apart from the competition. An open-concept floor plan includes the spacious great room, kitchen and dining room. The master suite is tucked behind the garage at the back of the home for maximum privacy. A step ceiling, spacious walk-in closet and close access to the laundry makes the master attractive to mom. Two additional bedrooms and a full bath are found on the opposite side of the home to the left of the entry.

Floor Plans


Floor Plan - Main Floor Plan
Reverse

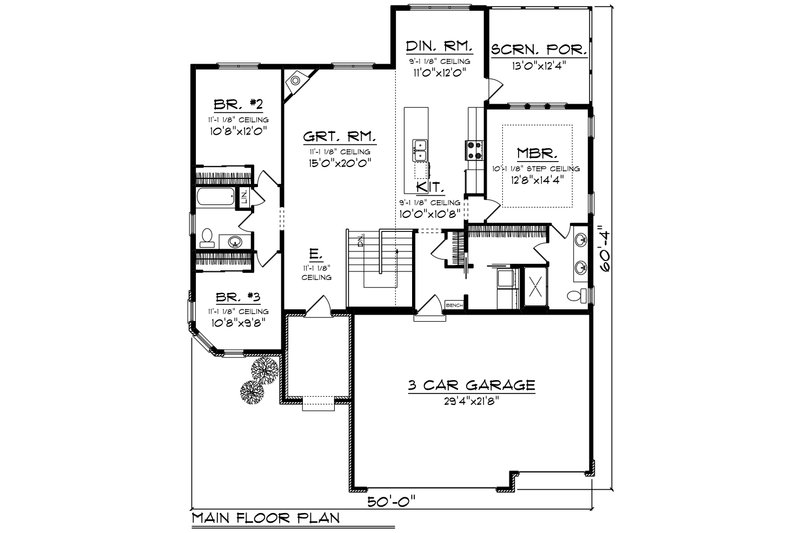

Ranch Floor Plan - Main Floor Plan Plan #70-1240

Full Specs & Features


Dimension
Depth : 60' 4"
Height : 22' 6"
Width : 50'
Area
First Floor: 1626 sq/ft
Garage: 635 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Entry 11', Grt Rm 11', BR. 2 -11', BR.3-11', MBR 10' Step.
Lower Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 6:12
Exterior Wall Framing
Exterior Wall Finish : Stucco,Stone
Framing : 2x6
Insulation : R-20
Bedroom Features
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Great Room Living Room
Main Floor Laundry
Mud Room
Storage Area
Sunroom
Unfinished Future Space
Garage Features
Front Entry Garage
Outdoor Spaces
Covered Front Porch
Screened Porch

What's Included In This Plan Set


  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
