PLAN 314-192

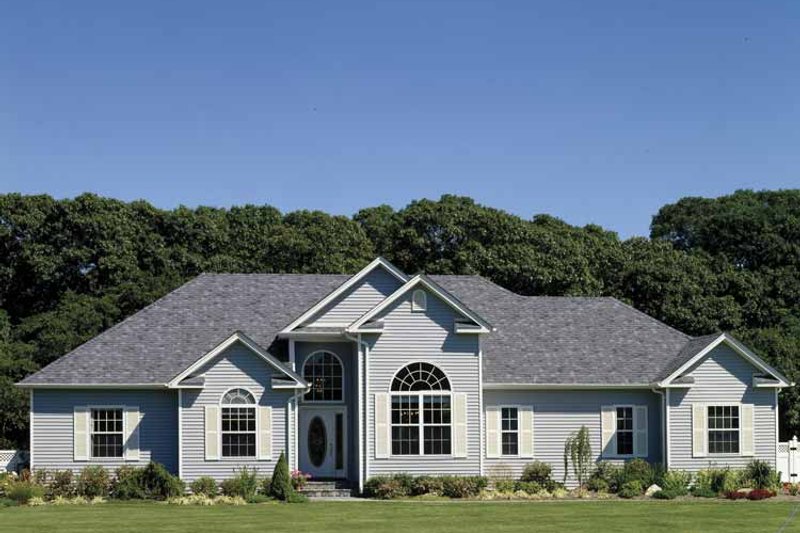

Ranch Exterior - Front Elevation Plan #314-192
Ranch Exterior - Front Elevation Plan #314-192
Ranch Interior - Dining Room Plan #314-192
Ranch Interior - Entry Plan #314-192
Ranch Interior - Family Room Plan #314-192

Select Plan Set Options

What's included?
Additional Construction Sets
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
Printed sets showing plan in reverse, text and dimensions will be backwards.
NOW $819.00
You save $91.00
(10% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 314-192

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

Wood shutters, glamorous half-round windows, and durable brick give this home its good looks. Entry drama is created by high ceilings in the foyer, dining room, and great room. The dining room is set off by elegant columned openings; formal meals can be kept warm and out of sight in the handy serving station around the corner. The TV center and fireplace in the great room create an attractive wall that complements the sliding French door tandem to the rear. Half-round windows accentuate the radiant bays protruding from the breakfast room and master suite, which boasts a vaulted ceiling and a whirlpool bath. Wider doorways and an alternate garage plan with a ramp instead of a storage area make this home adaptable to wheelchair use.

Full Specs & Features

Depth : 37' 4"
Height : 22'
Width : 70'
First Floor: 1595 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 9:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Wheelchair Adaptable

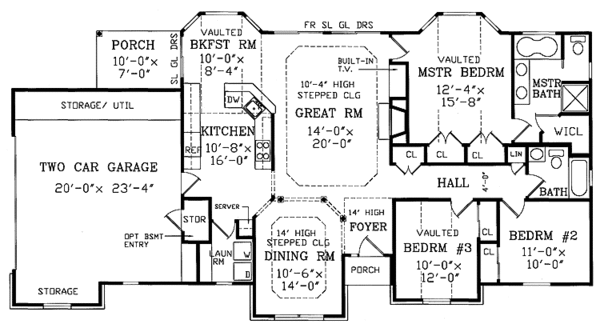

3rd BR Closet:

9 sq/ft width 2' x depth 4' 10"

Bedroom 2:

108 sq/ft width 10' 10" x depth 10'

Bedroom 2 Closet:

9 sq/ft width 2' x depth 4' 10"

Bedroom 3:

117 sq/ft width 9' 10" x depth 12'

Bedroom 3 Closet:

9 sq/ft width 2' x depth 4' 10"

Breakfast Room:

80 sq/ft width 9' 8" x depth 8' 4"

Dining Room:

147 sq/ft width 10' 6" x depth 14'


40 sq/ft width 6' x depth 6' 10"


466 sq/ft width 20' x depth 23' 4"

Garage Storage:

15 sq/ft width 3' x depth 5'

Gathering Room:

280 sq/ft width 14' x depth 20'

Hall Bathroom:

46 sq/ft width 7' 4" x depth 6' 4"

Hall Closet:

8 sq/ft width 2' x depth 4'


149 sq/ft width 10' 8" x depth 14'

Laundry Room:

34 sq/ft width 6' 6" x depth 5' 4"

Master Bathroom:

124 sq/ft width 9' 4" x depth 13' 4"

Master Bedroom:

188 sq/ft width 12' x depth 15' 8"

Master Closet:

28 sq/ft width 6' x depth 4' 8"

Porch - Front:

70 sq/ft width 10' x depth 7'

Porch - Rear:

68 sq/ft width 9' 10" x depth 7'

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Walk Out Basement:
Ideal for a sloping lot, lower level with outdoor access.


Wood 2x4:
Wood 2x4
Wood 2x6:
Wood 2x6

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.
