PLAN 928-5

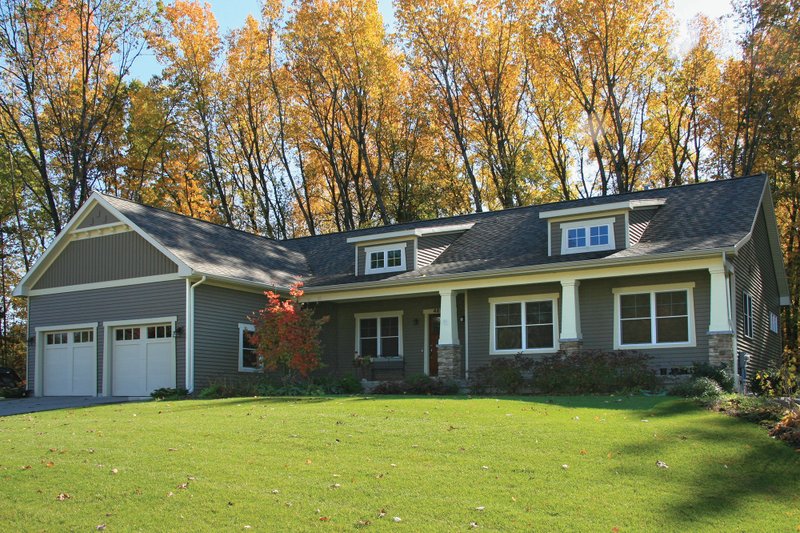

Architectural House Design - Ranch Exterior - Front Elevation Plan #928-5
Architectural House Design - Ranch Exterior - Rear Elevation Plan #928-5

Key Specs


Plan Sq Ft

1568
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?
Audio Video Design
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
NOW $1275.00
You save $225.00
(15% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Get Personalized Help
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 928-5

Key Specs


Plan Sq Ft

1568
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

2.5
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

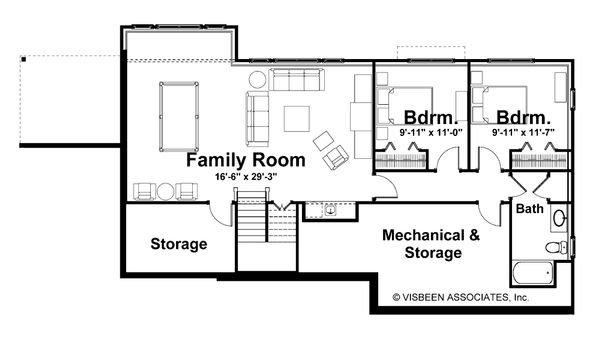

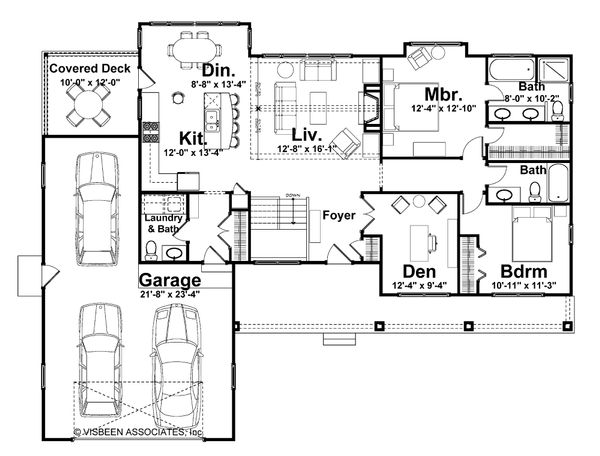

This 3 bedroom 3.5 bath Craftsman style plan boasts a three-car (tandem) garage. The main floor includes an open living/dining area and island kitchen, master suite, another bedroom with bath, and a den. The basement level includes two other bedrooms and a family room.

Full Specs & Features


Dimension
Depth : 52'
Height : 22' 1"
Width : 66'
Area
Basement Unfinished: 1056 sq/ft height 8'
First Floor: 1568 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Storage Area
Garage Features
Front Entry Garage
Rooms

Bathroom 1:

81 sq/ft width 8' x depth 10' 2"

Deck:

120 sq/ft width 10' x depth 12'

Den:

115 sq/ft width 12' 4" x depth 9' 4"

Dining Room:

115 sq/ft width 8' 8" x depth 13' 4"

Garage:

505 sq/ft width 21' 8" x depth 23' 4"

Kitchen:

159 sq/ft width 12' x depth 13' 4"

Living Room:

203 sq/ft width 12' 8" x depth 16' 1"

Master Bedroom:

158 sq/ft width 12' 4" x depth 12' 10"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
$1275.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$2545.75
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Audio Video Design :
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$85.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.
