PLAN 25-4932

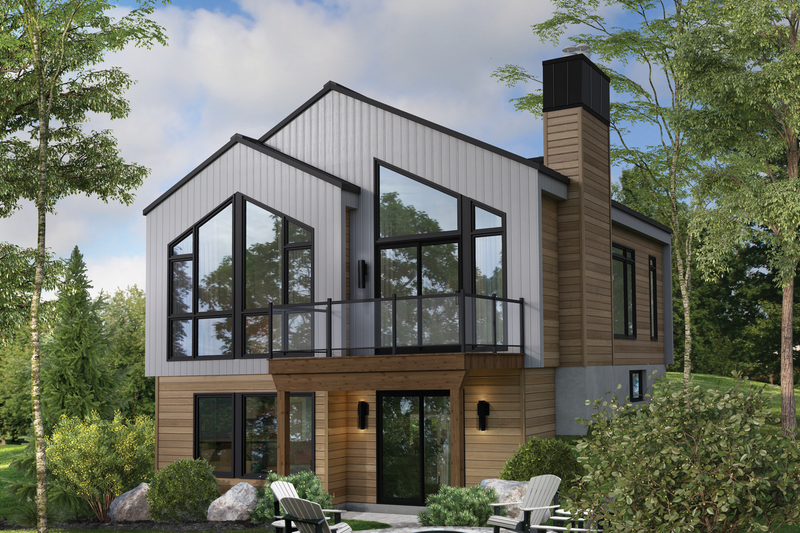

Architectural House Design - Contemporary Exterior - Front Elevation Plan #25-4932

Key Specs


1563
sq ft

3
Beds

1
Baths

1
Floors

0
Garages

Select Plan Set Options

What's included?
Additional Construction Sets$45.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Subtotal
NOW $774.00
You save $86.00
(10% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 25-4932

Key Specs


1563
sq ft

3
Beds

1
Baths

1
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

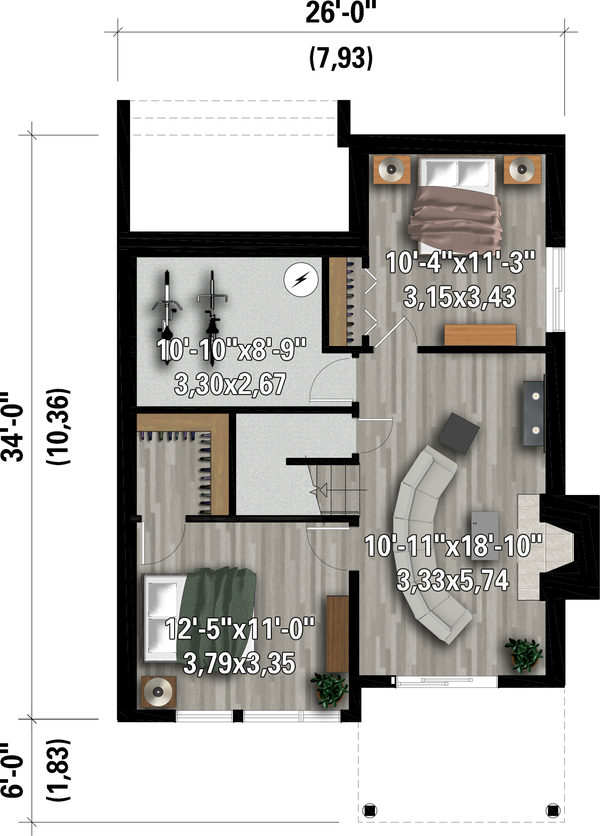

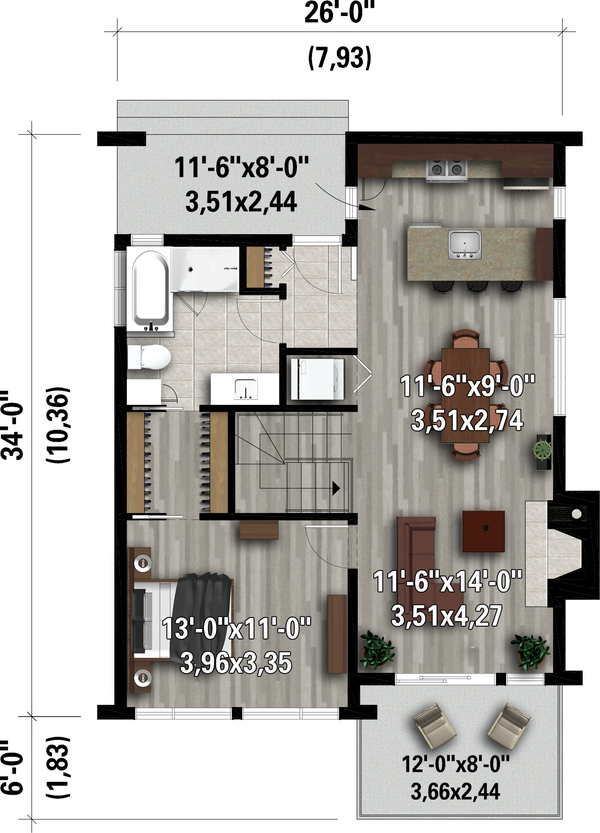

This beautiful cottage is 26 feet wide by 34 feet long, offering a living area of 1,563 sq. ft. The 784 sq. ft. basement includes a family room with a fireplace, a storage room as well as two bedrooms. The 779 sq. ft. ground floor has a dining room, a kitchen with an island, a foyer, the master bedroom and also a living room with a fireplace, all of which have a cathedral ceiling. Also included is a closet reserved for the washer and dryer, access to the bathroom from the master bedroom via the wardrobe and windows that reach the floor.

Full Specs & Features


Dimension
Depth : 34'
Height : 27' 6"
Width : 26'
Area
Lower Floor : 784 sq/ft
Main Floor : 779 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Ceiling Details : Main floor ceilings: 9 ft & 10 ft
Lower Ceiling : 7' 8"
Main Ceiling : 9' 2"
Roof
Primary Pitch : 6/12
Roof Framing : Truss
Roof Load : 50
Exterior Wall Framing
Exterior Wall Finish : Wood
Framing : Wood - 2 x 6
Insulation : R20
Bedroom Features
Fireplace
Main Floor Master Bedroom
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Lot Characteristics
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Balcony
More
Suited For Vacation Home

What's Included In This Plan Set




  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
  • » See important information before purchasing.
    Questions? Call 1-877-222-1762
    Plan Set
    5 Copy Set :
    $774.00
    5 printed plan sets mailed to you.
    8 Copy Set :
    $814.50
    8 printed plan sets mailed to you.
    PDF Set :
    $1012.50
    PDF plan sets are best for fast electronic delivery and inexpensive local printing.
    Reproducible Set :
    $1012.50
    For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
    CAD Set :
    $1539.00
    For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

    Foundation

    Basement:
    $0.00
    Ideal for level lot, lower level of home partially or fully underground.

    Framing

    Wood 2x6:
    $0.00
    Wood 2x6

    Additional Options

    Right-Reading Reverse :
    $135.00
    Choose this option to reverse your plans and to have the text and dimensions readable.
    Additional Construction Sets :
    $45.00
    Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
    Additional Use License :
    $360.00
    Additional Use License.
    Audio Video Design :
    $90.00
    Receive an overlay sheet with suggested placement of audio and video components.
    Construction Guide :
    $35.10
    Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
    Material List :
    $117.00
    A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
