Plan Description
This plan can be built with or without the garage. Open plan with raised
ceiling in great room with gas logs and plenty of light. Kitchen
features the sought after island and raised bar. One large dining area.
Two large bedrooms and closets plus flex space for study or 3rd bedroom.
Large garage with storage and shop area. Beautiful architectural shapes
and building materials.
Floor Plans

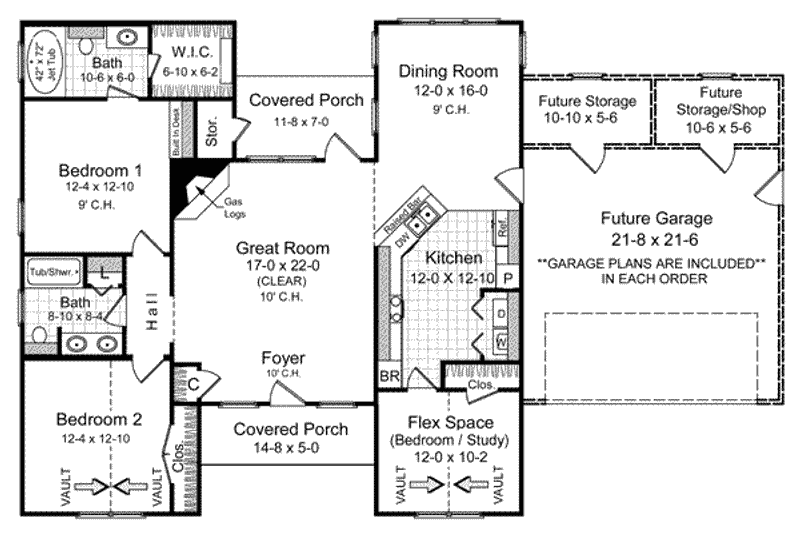

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 42'
Height : 24' 5"
Width : 64' 8"
Area
First Floor: 1503 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 9'
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Roof Type : Hip / Gable
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Kitchen Island
Additional Room Features
Great Room Living Room
Storage Area
Workshop
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 1:
158 sq/ft width 12' 4" x depth 12' 10"
Bedroom 2:
158 sq/ft width 12' 4" x depth 12' 10"
Dining Room:
192 sq/ft width 12' x depth 16'
Garage:
465 sq/ft width 21' 8" x depth 21' 6"
Great Room:
374 sq/ft width 17' x depth 22'
Kitchen:
147 sq/ft width 12' x depth 12' 4"
Porch - Front:
73 sq/ft width 14' 8" x depth 5'
Porch - Rear:
186 sq/ft width 11' 8" x depth 16'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof Drainage Plan: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

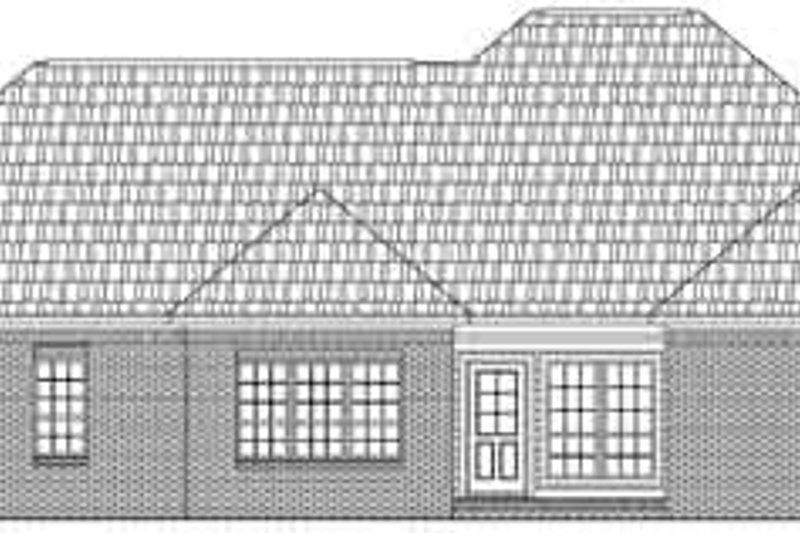

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
