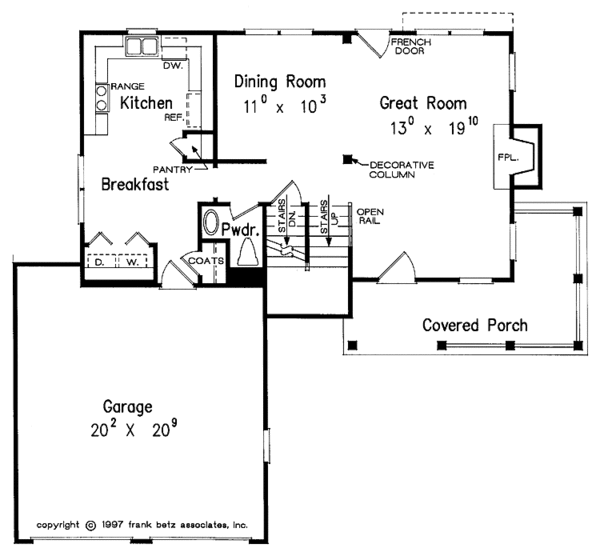

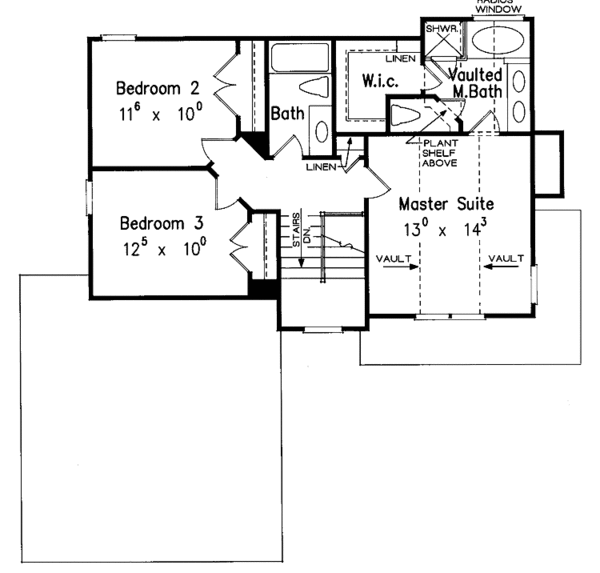

The foyer announces the living and dining areas, defined by decorative columns. A kitchen serves both the breakfast area and the dining room. The great room opens to the rear property through a French door. The master suite provides a vaulted ceiling, garden tub with radius window, and walk-in closet. Each of two additional bedrooms offers a wide wardrobe. Please specify basement, crawlspace or slab foundation when ordering.
115 sq/ft width 11' 6" x depth 10' 1"
125 sq/ft width 12' 5" x depth 10' 1"
83 sq/ft width 9' 4" x depth 9'
112 sq/ft width 11' x depth 10' 3"
257 sq/ft width 13' x depth 19' 10"
418 sq/ft width 20' 2" x depth 20' 9"
112 sq/ft width 10' 8" x depth 10' 6"
15 sq/ft width 5' 9" x depth 2' 9"
74 sq/ft width 8' 5" x depth 8' 10"
185 sq/ft width 13' x depth 14' 3"
50 sq/ft width 6' 9" x depth 7' 5"
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|5 Copy Set
|5 printed plan sets mailed to you.|
|8 Copy Set
|8 printed plan sets mailed to you.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Home Furniture Planner
|This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|A list of building supplies needed to construct the infrastructure of your new house.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
