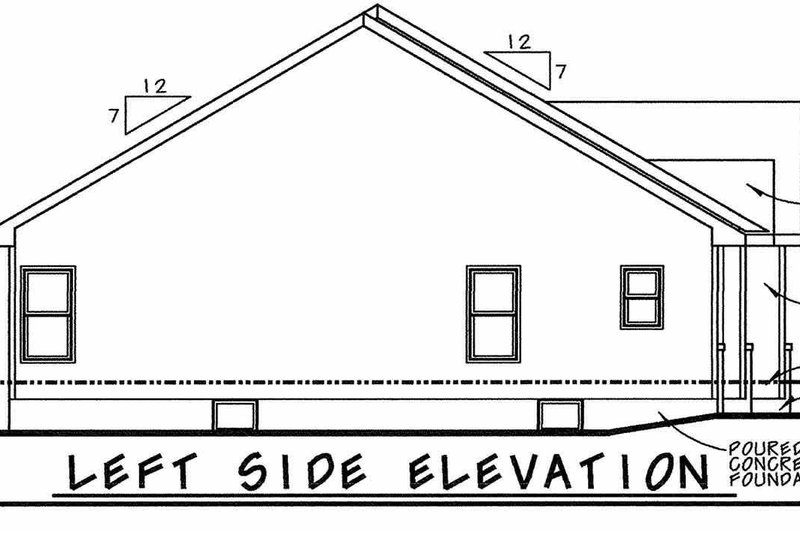

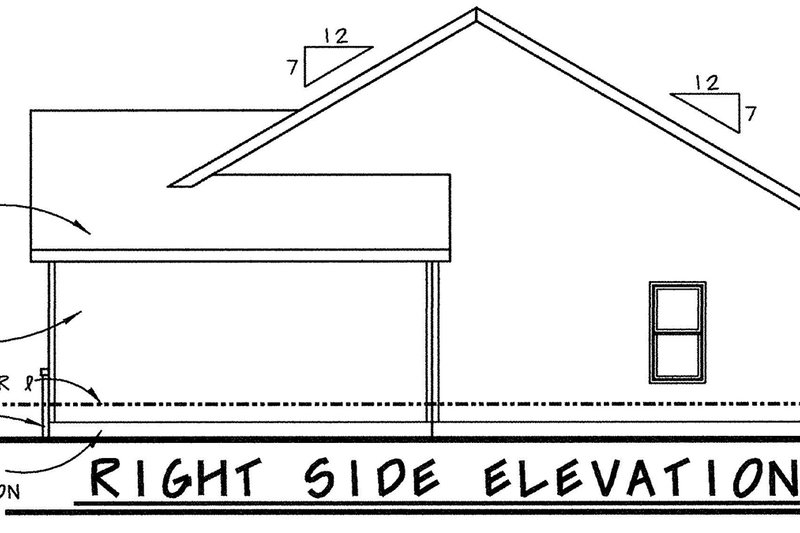

Architectural House Design - Ranch Exterior - Front Elevation Plan #20-2234

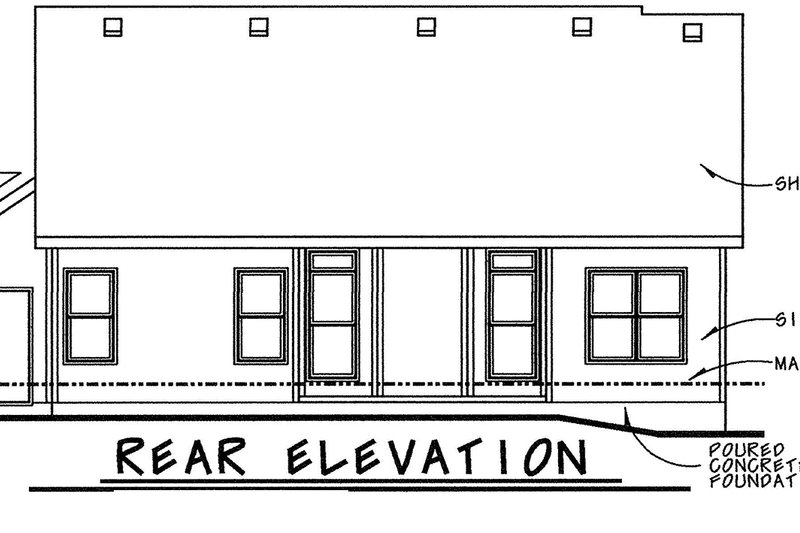

Architectural House Design - Ranch Exterior - Rear Elevation Plan #20-2234

Architectural House Design - Ranch Floor Plan - Main Floor Plan #20-2234

Jump to:
All (4)
Exterior (3)
Floor plans (1)

Get Personalized Help

Home > Style > Ranch House Plans

Key Specs

1292
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$250.75
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Use License	$212.50
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$140.25
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$165.75
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Unlimited Use License	$425.00
	Allows you to build this home as many times as you want.

Subtotal

NOW $939.25

You save $165.75 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 20-2234

Home > Style > Ranch House Plans

Key Specs

1292
sq ft

3
Beds

2.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This ranch design floor plan is 1292 sq ft and has 3 bedrooms and 2.5 bathrooms.

Floor Plans

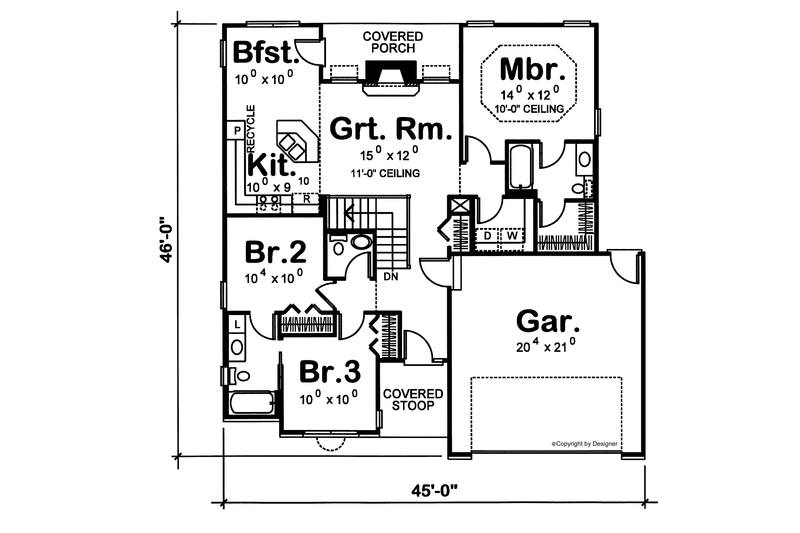

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 46'

Height : 24'

Width : 45'

Area

First Floor: 1292 sq/ft height 9'

Garage: 446 sq/ft

Porch: 77 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 7:12

Roof Framing : Conventional

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Fireplace

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Vaulted / Cathedral Ceilings

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

103 sq/ft width 10' 4" x depth 10'

Bedroom 3:

100 sq/ft width 10' x depth 10'

Breakfast:

98 sq/ft width 10' x depth 9' 10"

Entry:

23 sq/ft width 4' 8" x depth 5'

Garage:

426 sq/ft width 20' 4" x depth 21'

Great Room:

180 sq/ft width 15' x depth 12'

Kitchen:

90 sq/ft width 10' x depth 9'

Kitchen Island:

19 sq/ft width 4' 5" x depth 4' 5"

Laundry Room:

35 sq/ft width 6' 4" x depth 5' 8"

Master Bathroom:

54 sq/ft width 9' x depth 6'

Master Bedroom:

168 sq/ft width 14' x depth 12'

Master Closet:

32 sq/ft width 6' 2" x depth 5' 4"

What's Included In This Plan Set

See a sample plan set

Cover Page: Front elevation and informative reference sections including: general notes and design criteria
Elevations: Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are noted and an aerial view of the roof is provided, showing all hips, valleys and ridges.
Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. Shows the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above. Alternate foundations are available for a fee.
Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.
Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.
Elevations: Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations. Not included with all plans, please call for details.
Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

NOTE: This plan is not available to be built in the state of Nevada. Please call with questions.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$939.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD and PDF Set:
$1487.50

For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$250.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$250.75

Ideal for level lot, single layer concrete poured directly on grade.

Walk Out Basement:
$331.50

Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$250.75

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$250.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Use License:
$212.50

Allows you to build one more home for each additional license purchased.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$165.75

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Unlimited Use License:
$425.00

Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
