PLAN 84-643
Key Specs
1243
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-877-222-1762
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Phone: 1-877-222-1762
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 84-643
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description
A quaint country elevation invites you onto a covered front porch. Separate master suite has large walk-in closet and double vanity. Bedroom 3 can option as a study for empty nesters. Optional bay expands the dining room.
Full Specs & Features
Dimension
Depth : 34' 10"
Height : 17'
Width : 52'
Height : 17'
Width : 52'
Area
First Floor: 1243 sq/ft
Garage: 455 sq/ft
Garage: 455 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Family Room Keeping Room
Main Floor Laundry
Garage Features
Side Entry Garage
Rooms
Bedroom 2:
120 sq/ft width 12' x depth 10'
Bedroom 3:
110 sq/ft width 10' x depth 11'
Dining Room:
65 sq/ft width 8' 4" x depth 7' 10"
Garage:
400 sq/ft width 20' x depth 20'
Kitchen:
72 sq/ft width 8' 4" x depth 8' 8"
Master Bedroom:
188 sq/ft width 14' 6" x depth 13'
What's Included In This Plan Set
- FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
- FRONT RENDERING: 1/4" Scale

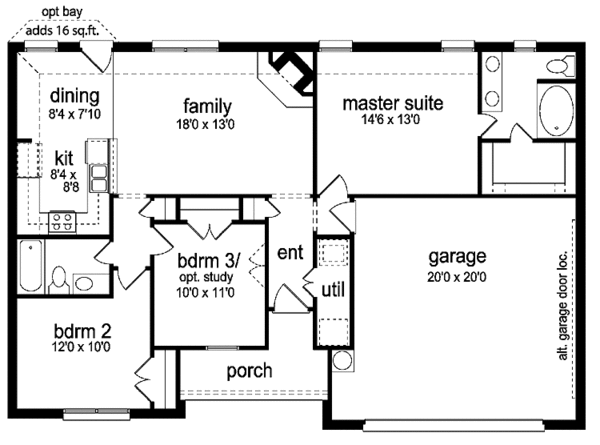

- FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
- ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
- ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
- STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.
