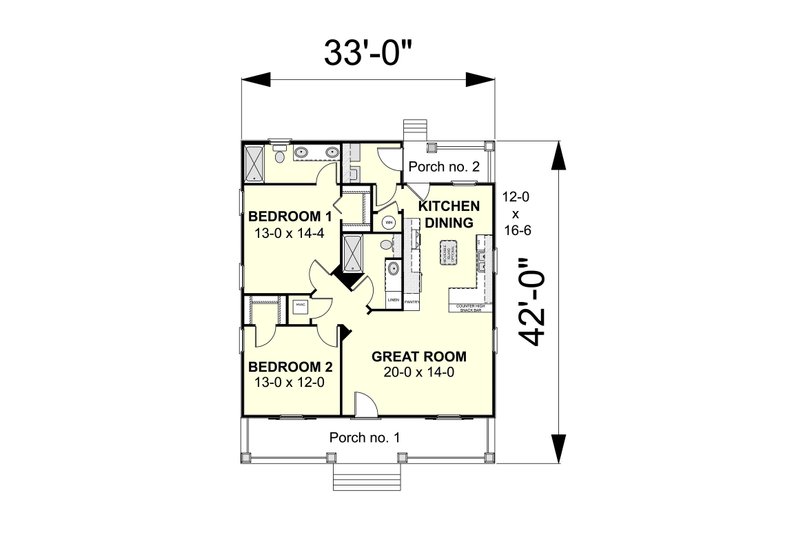

Enter this spacious Great Room with three full-length windows to ensure maximum natural lighting. The Kitchen/Dining is fully loaded with a movable Island, snack bar, pantry, and lots of cabinets. The Master Bedroom is nice-sized, has a private bath and a great walk-in closet. Bedroom 2 is perfect for extra room and a great walk-in closet. Bath # 2 is ideally located for guests that come to relax in the Great Room. There is a great Laundry room with a covered porch off the side to give a nice balance of work and play.
Full Specs & Features
Depth : 41'
Height : 25'
Width : 33'
First Floor: 1122 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : gable
Secondary Pitch : 4:12
Exterior Wall Framing
Exterior Wall Finish : shingle siding
Framing : 2"x4"
Insulation : 13
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Main Floor Laundry
Covered Front Porch
Covered Rear Porch
Economical To Build
Suited For Vacation Home
Structural Information Provided
80 sq/ft width 8' x depth 10'
156 sq/ft width 13' x depth 12'
280 sq/ft width 20' x depth 14'
198 sq/ft width 12' x depth 16' 6"
45 sq/ft width 8' x depth 5' 8"
73 sq/ft width 13' x depth 5' 8"
186 sq/ft width 13' x depth 14' 4"
Porch - Front:
181 sq/ft width 33' x depth 5' 6"
Porch - Rear:
66 sq/ft width 12' x depth 5' 6"
What's Included In This Plan Set
» See important
information before purchasing.
All plans are drawn at ¼” scale or larger and include :
Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

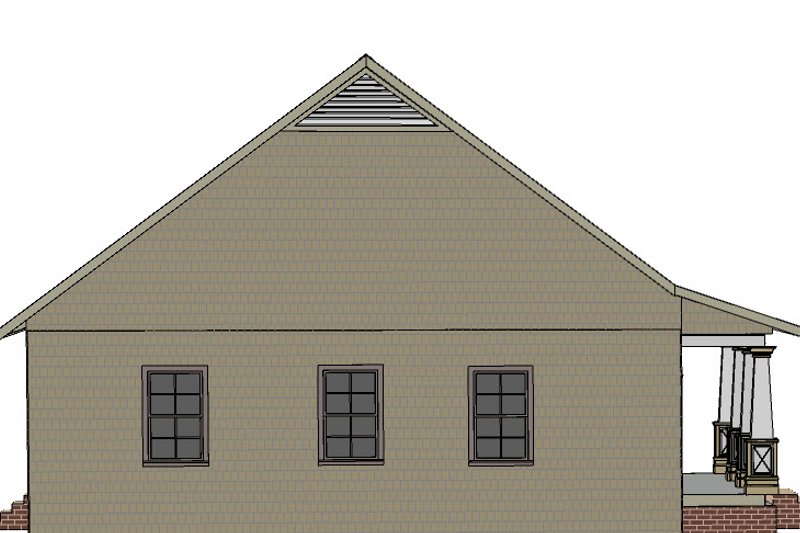

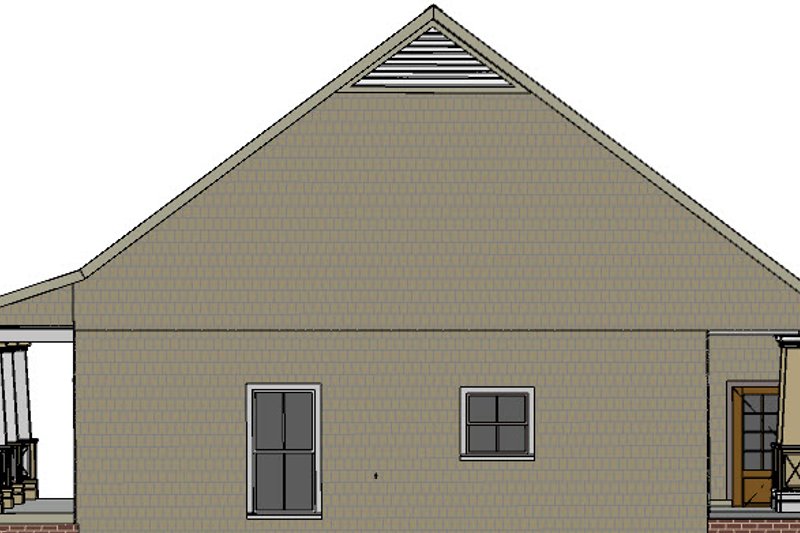

Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
