Key Specs
1103
sq ft
3
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 84-537
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

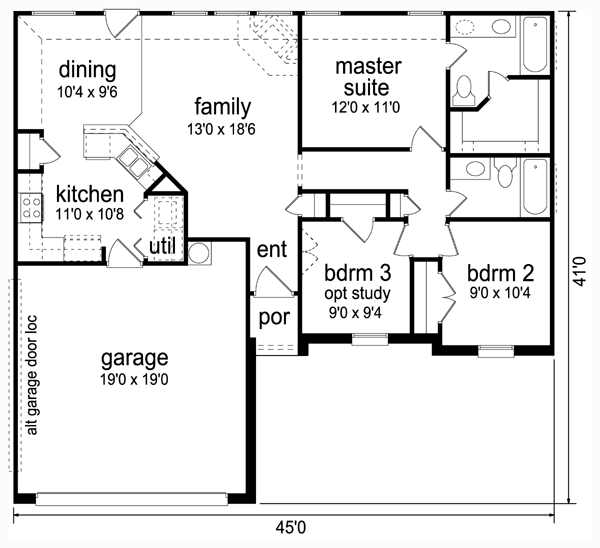

Floor Plans
Full Specs & Features
Dimension
Depth : 41'
Height : 15' 6"
Width : 45'
Area
First Floor: 1103 sq/ft height 8'
Garage: 406 sq/ft height 8'
Porch: 20 sq/ft
Ceiling
Garage Ceiling : 8'
Main Ceiling : 9'
Roof
Primary Pitch : 6:12
Roof Framing : stick
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : brick, siding
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Garage Features
Front Entry Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Code Compliance
Irc 2003
Rooms
Bedroom 2:
92 sq/ft width 9' x depth 10' 4"
Bedroom 3:
83 sq/ft width 9' x depth 9' 4"
Dining Room:
98 sq/ft width 10' 4" x depth 9' 6"
Family Room:
240 sq/ft width 13' x depth 18' 6"
Garage:
361 sq/ft width 19' x depth 19'
Kitchen:
117 sq/ft width 11' x depth 10' 8"
Master Suite:
132 sq/ft width 12' x depth 11'
