This plan can be customized
Full Specs & Features
Depth : 40'
Height : 22'
Width : 26'

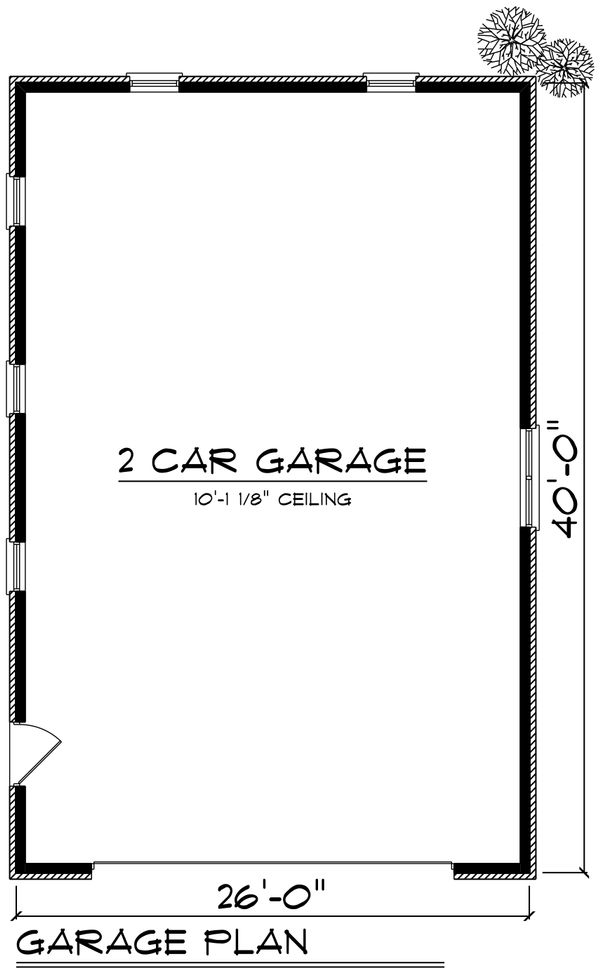

Garage : 1040 sq/ft
Garage Ceiling : 10'
Primary Pitch : 10
Roof Framing : Truss
Roof Load : 47 lbs psf
Secondary Pitch : 5
Exterior Wall Framing
Exterior Wall Finish : Vertical Siding, Stone.
Framing : 2x6
Insulation : R-20
Front Entry Garage
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
